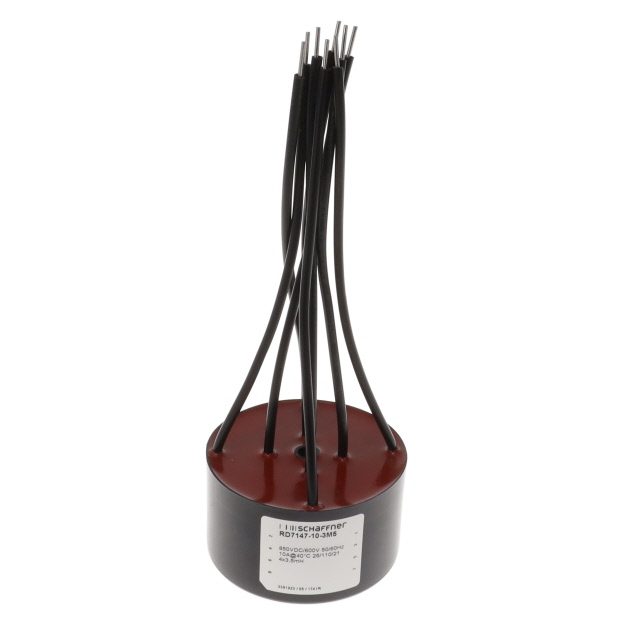

RD7147-10-3M5

Active

TE Connectivity Raychem Cable Protection

CMC 3.5MH 10A 4LN TH

Search across all available documentation for this part.

Active

TE Connectivity Raychem Cable Protection

CMC 3.5MH 10A 4LN TH

Technical Specifications

Parameters and characteristics for this part

Part	DC Resistance (DCR) (Max)	Package / Case	Height (Max) [Max]	Height (Max) [Max]	Voltage Rating - DC	Filter Type	Operating Temperature [Min]	Operating Temperature [Max]	Voltage Rating - AC	Number of Lines	Current Rating (Max)	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Mounting Type	Inductance @ Frequency	Current Rating (Max) [Max]
TE Connectivity Raychem Cable Protection RD7147-10-3M5	19.1 mOhm	Horizontal 8 PC Pin	1.594 in	40.5 mm	850 V	Power Line	-25 °C	110 °C	600 V	4	10 A	70 mm	2.756 in	70 mm	2.756 in	Through Hole
TE Connectivity Raychem Cable Protection RD7147-6-6M0	45.1 mOhm	Horizontal 8 PC Pin	1.594 in	40.5 mm	850 V	Power Line	-25 °C	110 °C	600 V	4	6 A	70 mm	2.756 in	70 mm	2.756 in	Through Hole	6 mH
TE Connectivity Raychem Cable Protection RD7147-36-0M2	2.3 mOhm	Horizontal 8 PC Pin	1.594 in	40.5 mm	850 V	Power Line	-25 °C	110 °C	600 V	4		70 mm	2.756 in	70 mm	2.756 in	Through Hole	200 µH	36 A
TE Connectivity Raychem Cable Protection RD7147-16-1M5	8.5 mOhm	Horizontal 8 PC Pin	1.594 in	40.5 mm	850 V	Power Line	-25 °C	110 °C	600 V	4	16 A	70 mm	2.756 in	70 mm	2.756 in	Through Hole	1.5 mH 400 Hz

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

3.5 mH @ 400 Hz 4 Line Common Mode Choke Through Hole 10A (Typ) DCR 19.1mOhm (Typ)
