25054 BK005

Active

ALPHA WIRE

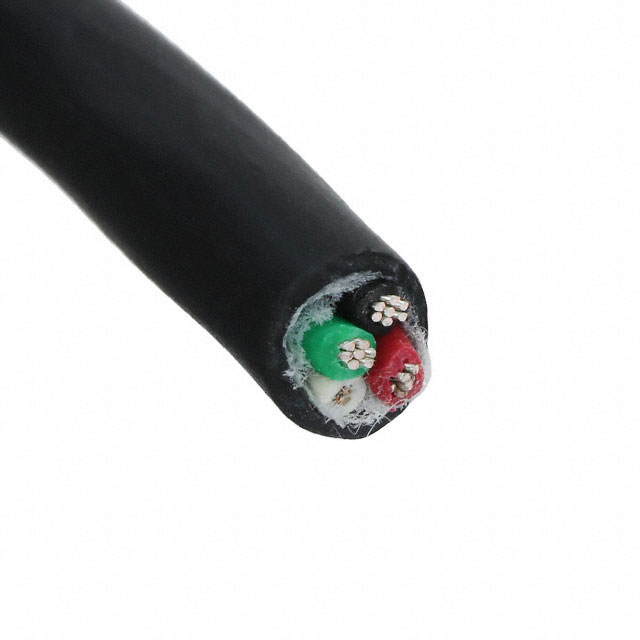

CABLE 4COND 20AWG BLACK 100'

Search across all available documentation for this part.

Active

ALPHA WIRE

CABLE 4COND 20AWG BLACK 100'

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

4 Conductor Multi-Conductor Cable Black 20 AWG 100.0' (30.5m)

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	25054 BK005	25054 Series

Cable Type	Multi-Conductor	Multi-Conductor
Conductor Insulation	Poly-Vinyl Chloride (PVC)	Poly-Vinyl Chloride (PVC)
Conductor Material	Copper, Tinned	Copper, Tinned
Conductor Strand [custom]	28	28
Conductor Strand [custom]	7	7
Features	Rip Cord, Biological Compatibility	Rip Cord, Biological Compatibility
Jacket (Insulation) Diameter [diameter]	6.05 mm	6.05 mm
Jacket (Insulation) Diameter [diameter]	0.238 in	0.238 in
Jacket (Insulation) Material	Polyurethane (PU)	Polyurethane (PU)
Jacket Color	Black	Black, Orange
Length	-	Enter Number of Feet in Order Quantity
Length [x]	30.5 m	30.5 m
Length [x]	100 ft	100 ft
Number of Conductors	4	4
Operating Temperature [Max]	90 °C	90 °C
Operating Temperature [Min]	-30 ░C	-30 ░C
Ratings	UL Style 20668, ISO 10993	UL Style 20668, ISO 10993
Spool Size	-	1000 ft
Spool Size	-	304.8 m
Voltage	300 V	300 V
Wire Gauge	20 AWG	20 AWG

CABLE 4COND 20AWG BLACK FEET

Part	Conductor Strand [custom]	Conductor Strand [custom]	Operating Temperature [Min]	Operating Temperature [Max]	Conductor Insulation	Cable Type	Jacket Color	Wire Gauge	Ratings	Spool Size	Spool Size	Conductor Material	Length	Jacket (Insulation) Material	Voltage	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Number of Conductors	Features	Length [x]	Length [x]
ALPHA WIRE 25054 BK199	28	7	-30 ░C	90 °C	Poly-Vinyl Chloride (PVC)	Multi-Conductor	Black	20 AWG	ISO 10993, UL Style 20668	1000 ft	304.8 m	Copper, Tinned	Enter Number of Feet in Order Quantity	Polyurethane (PU)	300 V	6.05 mm	0.238 in	4	Biological Compatibility, Rip Cord
ALPHA WIRE 25054 OR199	28	7	-30 ░C	90 °C	Poly-Vinyl Chloride (PVC)	Multi-Conductor	Orange	20 AWG	ISO 10993, UL Style 20668			Copper, Tinned		Polyurethane (PU)	300 V	6.05 mm	0.238 in	4	Biological Compatibility, Rip Cord
ALPHA WIRE 25054 BK005	28	7	-30 ░C	90 °C	Poly-Vinyl Chloride (PVC)	Multi-Conductor	Black	20 AWG	ISO 10993, UL Style 20668			Copper, Tinned		Polyurethane (PU)	300 V	6.05 mm	0.238 in	4	Biological Compatibility, Rip Cord	30.5 m	100 ft
