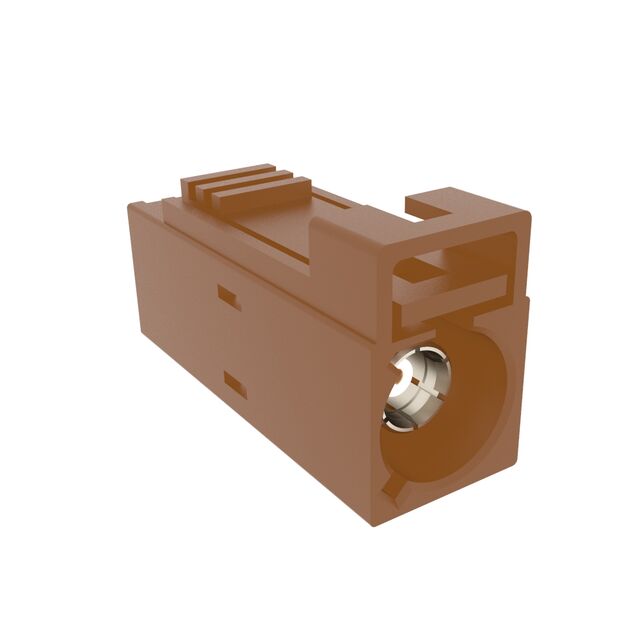

FA1-NFSJ-C04-0

Active

Amphenol RF

CONN FAKRA JACK STR 50 OHM CRIMP

Search across all available documentation for this part.

Active

Amphenol RF

CONN FAKRA JACK STR 50 OHM CRIMP

Technical Specifications

Parameters and characteristics for this part

Specification	FA1-NFSJ-C04-0

Body Finish	Nickel
Body Material	Brass
Cable Group	58C, 9907, 58B, LMR-195, 58A, 303, 141, Belden B7806A, RG-58
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	SMB, Fakra
Connector Type	Female Socket, Jack
Contact Termination	Crimp
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Latch Lock
Features	Code F
Frequency - Max [Max]	4 GHz
Housing Color	Nut, Brown
Impedance	50 Ohms
Includes	1 Housing, 1 Contact, 1 Ferrule, 1 Connector, 1 Locking Clip
Insertion Loss	0.3 dB
Mounting Type	Free Hanging (In-Line)
Number of Ports	1
Operating Temperature [Max]	115 °C
Operating Temperature [Min]	-40 °C
Shield Termination	Crimp

Part	Body Finish	Body Material	Frequency - Max [Max]	Fastening Type	Impedance	Cable Group	Connector Style	Housing Color	Number of Ports	Center Contact Plating	Features	Center Contact Material	Dielectric Material	Shield Termination	Operating Temperature [Min]	Operating Temperature [Max]	Contact Termination	Mounting Type	Includes	Connector Type	Insertion Loss
Amphenol RF FA1-NFSJ-C04-0	Nickel	Brass	4 GHz	Latch Lock	50 Ohms	141 303 58A 58B 58C 9907 Belden B7806A LMR-195 RG-58	Fakra SMB	Brown Nut	1	Gold	Code F	Beryllium Copper	Polytetrafluoroethylene (PTFE)	Crimp	-40 °C	115 °C	Crimp	Free Hanging (In-Line)	1 Connector 1 Contact 1 Ferrule 1 Housing 1 Locking Clip	Female Socket Jack	0.3 dB
Amphenol RF FA1-NFSJ-C10-0	Nickel	Brass	4 GHz	Latch Lock	50 Ohms	178A 178B 196 196A M17/93-RG178 RG-178	Fakra SMB	Brown Nut	1	Gold	Code F	Beryllium Copper	Polytetrafluoroethylene (PTFE)	Crimp	-40 °C	115 °C	Crimp	Free Hanging (In-Line)	1 Connector 1 Contact 1 Ferrule 1 Housing 1 Locking Clip	Female Socket Jack	0.3 dB

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

SMB, Fakra Connector Jack, Female Socket 50 Ohms Free Hanging (In-Line) Crimp
