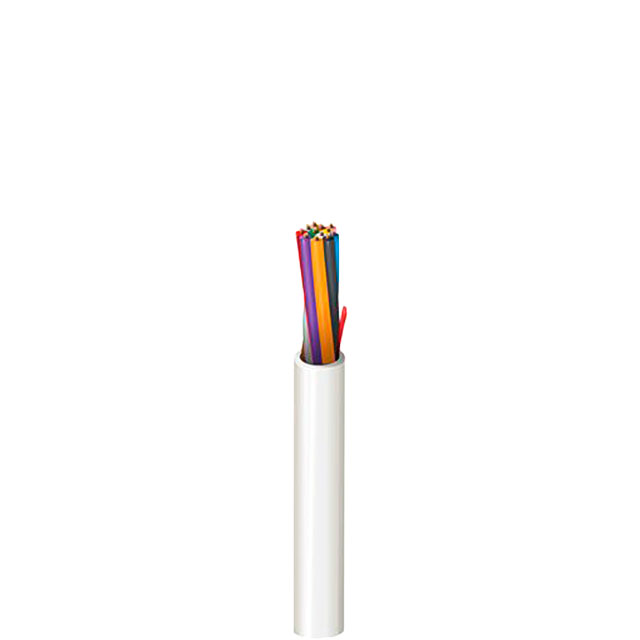

5309UE 0081000

Active

Belden Inc.

CABLE 12COND 18AWG GRAY

Search across all available documentation for this part.

Active

Belden Inc.

CABLE 12COND 18AWG GRAY

Technical Specifications

Parameters and characteristics for this part

Specification	5309UE 0081000

Cable Type	Multi-Conductor
Conductor Insulation	Polypropylene (PP)
Conductor Material	Copper, Bare
Conductor Strand [custom]	26 AWG
Conductor Strand [custom]	7
Features	Rip Cord
Jacket (Insulation) Diameter [diameter]	7.14 mm
Jacket (Insulation) Diameter [diameter]	0.281 in
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC), Riser
Jacket (Insulation) Thickness	0.457 mm
Jacket (Insulation) Thickness	0.018 in
Jacket Color	Gray
Length	1000 ft
Length	304.8 m
Number of Conductors	12
Ratings	UL Style CMR
Usage	Sound, Security
Voltage	300 V
Wire Gauge	18 AWG

Part	Length	Length	Wire Gauge	Conductor Insulation	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Voltage	Jacket Color	Usage	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Jacket (Insulation) Material	Cable Type	Conductor Strand [custom]	Conductor Strand [custom]	Conductor Material	Ratings	Features	Number of Conductors
Belden Inc. 5309UE 0081000	1000 ft	304.8 m	18 AWG	Polypropylene (PP)	7.14 mm	0.281 in	300 V	Gray	Security Sound	0.457 mm	0.018 in	Poly-Vinyl Chloride (PVC) Riser	Multi-Conductor	26 AWG	7	Copper Bare	UL Style CMR	Rip Cord	12

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	1000	$ 1.00

General part information

12 Conductor Multi-Conductor Cable Gray 18 AWG 1000.0' (304.8m)
