5301-24-2

Active

TEST LEAD, SMD GRABBER, HOOK CLIP TO HOOK CLIP, RED, 60 V, 500 MA, 609.6 MM

Active

TEST LEAD, SMD GRABBER, HOOK CLIP TO HOOK CLIP, RED, 60 V, 500 MA, 609.6 MM

Description

General part information

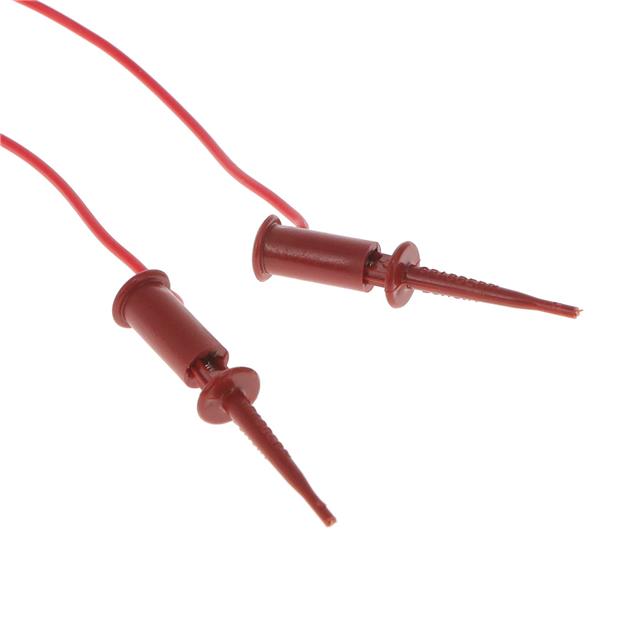

5301-24-2 is a SMD Grabber® test clip patch cord ideal for providing a temporary jumper wire between surface mount devices.

Parameters and characteristics for this part

Part	1st Connector	Current Rating	Temperature Range (Single)	2nd Connector	Cable Length	Lead Quantity	Contents	Wire Gauge	Configuration	Material - Insulation	Voltage - Rated
Pomona Electronics 5301-24-2	SMD Pincer	0.5 A	216 °F	SMD Pincer	24 in	1	Red	22 AWG	Grabber Hook Hook to Grabber	Poly-Vinyl Chloride PVC	150 VAC
Pomona Electronics 5301-24-0	SMD Pincer	0.5 A	216 °F	SMD Pincer	24 in	1	Black	22 AWG	Grabber Hook Hook to Grabber	Poly-Vinyl Chloride PVC	150 VAC
Pomona Electronics 5301-12-0	SMD Pincer	0.5 A	216 °F	SMD Pincer	12 in	1	Black	22 AWG	Grabber Hook Hook to Grabber	Poly-Vinyl Chloride PVC	150 VAC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

3D models and CAD resources for this part

Technical documentation and resources
