T4141012051-000
ActiveTE Connectivity AMP Connectors

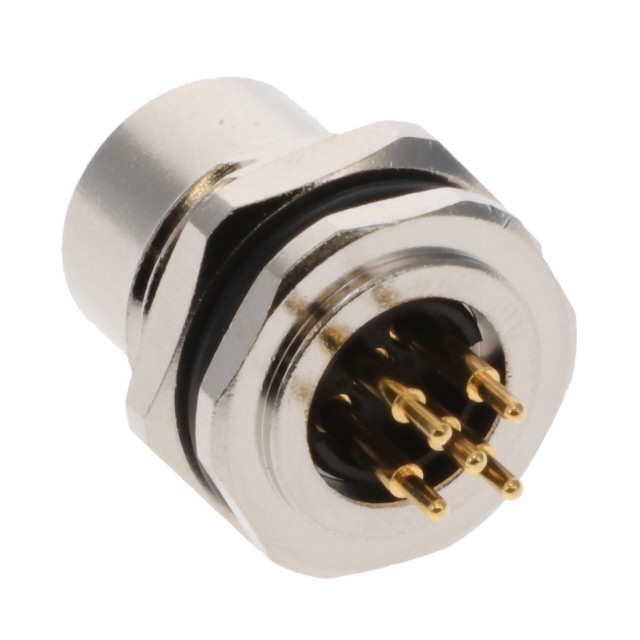

CONN PLUG FMALE 5POS GOLD SOLDER
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
T4141012051-000
ActiveTE Connectivity AMP Connectors
CONN PLUG FMALE 5POS GOLD SOLDER
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | T4141012051-000 | T41410 Series |
|---|---|---|
| Applications | Industrial | Industrial |
| Color | Silver | Silver |
| Connector Type | Female Sockets, Plug | Female Sockets, Plug, Receptacle, Female Sockets |
| Contact Finish - Mating | Gold | Gold |
| Contact Finish Thickness - Mating | 3 µin | 3 - 30 µin |
| Contact Finish Thickness - Mating | 0.076 µm | 0.076 - 0.76 µm |
| Contact Material | Copper Alloy | Copper Alloy |
| Current Rating (Amps) | 4 A | 1.5 - 4 A |
| Ingress Protection | IP67 - Dust Tight, Waterproof | IP67 - Dust Tight, Waterproof |
| Insert Material | Polyamide (PA66), Nylon 6/6 | Polyamide (PA66), Nylon 6/6 |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 |
| Mounting Feature | Bulkhead - Front Side Nut | Bulkhead - Front Side Nut |
| Mounting Type | Through Hole, Panel Mount | Through Hole, Panel Mount |
| Number of Positions | - | 2 - 12 |
| Operating Temperature [Max] | 85 °C | 85 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Orientation | A | A |
| Primary Material | Metal | Metal |
| Shell Finish | Nickel | Nickel |
| Shell Material | Copper Alloy | Copper Alloy |
| Shell Size - Insert | M12-5 | M12-2, M12-5, M12-12, M12-3, M12-4 |
| Shielding | Unshielded | Unshielded, Shielded |
| Termination | Solder | Solder |
| Voltage Rating | 60 VDC | 30 - 250 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 8.23 | |
| 10 | $ 7.18 | |||
| 25 | $ 6.99 | |||
| 50 | $ 6.80 | |||
| 100 | $ 6.38 | |||
| 250 | $ 6.35 | |||
| 500 | $ 5.97 | |||
| 1000 | $ 5.33 | |||
T41410 Series
CONN PLUG FMALE 2POS GOLD SOLDER
| Part | Shell Finish | Number of Positions | Current Rating (Amps) | Contact Material | Orientation | Contact Finish - Mating | Material Flammability Rating | Color | Insert Material | Shielding | Connector Type | Mounting Feature | Termination | Shell Size - Insert | Shell Material | Ingress Protection | Primary Material | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Applications | Operating Temperature [Max] | Operating Temperature [Min] | Voltage Rating | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors T4141012021-000 | Nickel | 2 | 4 A | Copper Alloy | A | Gold | UL94 V-0 | Silver | Polyamide (PA66), Nylon 6/6 | Unshielded | Female Sockets, Plug | Bulkhead - Front Side Nut | Solder | M12-2 | Copper Alloy | IP67 - Dust Tight, Waterproof | Metal | 3 µin | 0.076 µm | Industrial | 85 °C | -40 °C | 250 VDC | Panel Mount, Through Hole |
TE Connectivity AMP Connectors T4141012051-000 | Nickel | 4 A | Copper Alloy | A | Gold | UL94 V-0 | Silver | Polyamide (PA66), Nylon 6/6 | Unshielded | Female Sockets, Plug | Bulkhead - Front Side Nut | Solder | M12-5 | Copper Alloy | IP67 - Dust Tight, Waterproof | Metal | 3 µin | 0.076 µm | Industrial | 85 °C | -40 °C | 60 VDC | Panel Mount, Through Hole | |
TE Connectivity AMP Connectors T4141012121-000 | Nickel | 12 | 1.5 A | Copper Alloy | A | Gold | Silver | Polyamide (PA66), Nylon 6/6 | Unshielded | Receptacle, Female Sockets | Bulkhead - Front Side Nut | Solder | M12-12 | Copper Alloy | IP67 - Dust Tight, Waterproof | Metal | Industrial | 85 °C | -40 °C | 30 VDC | Panel Mount, Through Hole | |||
TE Connectivity AMP Connectors T4141012031-000 | Nickel | 4 A | Copper Alloy | A | Gold | UL94 V-0 | Silver | Polyamide (PA66), Nylon 6/6 | Unshielded | Female Sockets, Plug | Bulkhead - Front Side Nut | Solder | M12-3 | Copper Alloy | IP67 - Dust Tight, Waterproof | Metal | 3 µin | 0.076 µm | Industrial | 85 °C | -40 °C | 250 VDC | Panel Mount, Through Hole | |
TE Connectivity AMP Connectors T4141010054-000 | Nickel | 4 A | Copper Alloy | A | Gold | UL94 V-0 | Silver | Polyamide (PA66), Nylon 6/6 | Shielded | Receptacle, Female Sockets | Bulkhead - Front Side Nut | Solder | M12-5 | Copper Alloy | IP67 - Dust Tight, Waterproof | Metal | 30 Áin | 0.76 Ám | Industrial | 85 °C | -40 °C | 60 VDC | Panel Mount, Through Hole | |
TE Connectivity AMP Connectors T4141012041-000 | Nickel | 4 | 4 A | Copper Alloy | A | Gold | UL94 V-0 | Silver | Polyamide (PA66), Nylon 6/6 | Unshielded | Female Sockets, Plug | Bulkhead - Front Side Nut | Solder | M12-4 | Copper Alloy | IP67 - Dust Tight, Waterproof | Metal | 3 µin | 0.076 µm | Industrial | 85 °C | -40 °C | 250 VDC | Panel Mount, Through Hole |
TE Connectivity AMP Connectors T4141010054-001 | Nickel | 4 A | Copper Alloy | A | Gold | UL94 V-0 | Silver | Polyamide (PA66), Nylon 6/6 | Shielded | Receptacle, Female Sockets | Bulkhead - Front Side Nut | Solder | M12-5 | Copper Alloy | IP67 - Dust Tight, Waterproof | Metal | 30 Áin | 0.76 Ám | Industrial | 85 °C | -40 °C | 60 VDC | Panel Mount, Through Hole |
Description
General part information
T41410 Series
5 Position Circular Connector Plug, Female Sockets Solder
