T4141012051-000
ActiveTE Connectivity Raychem Cable Protection

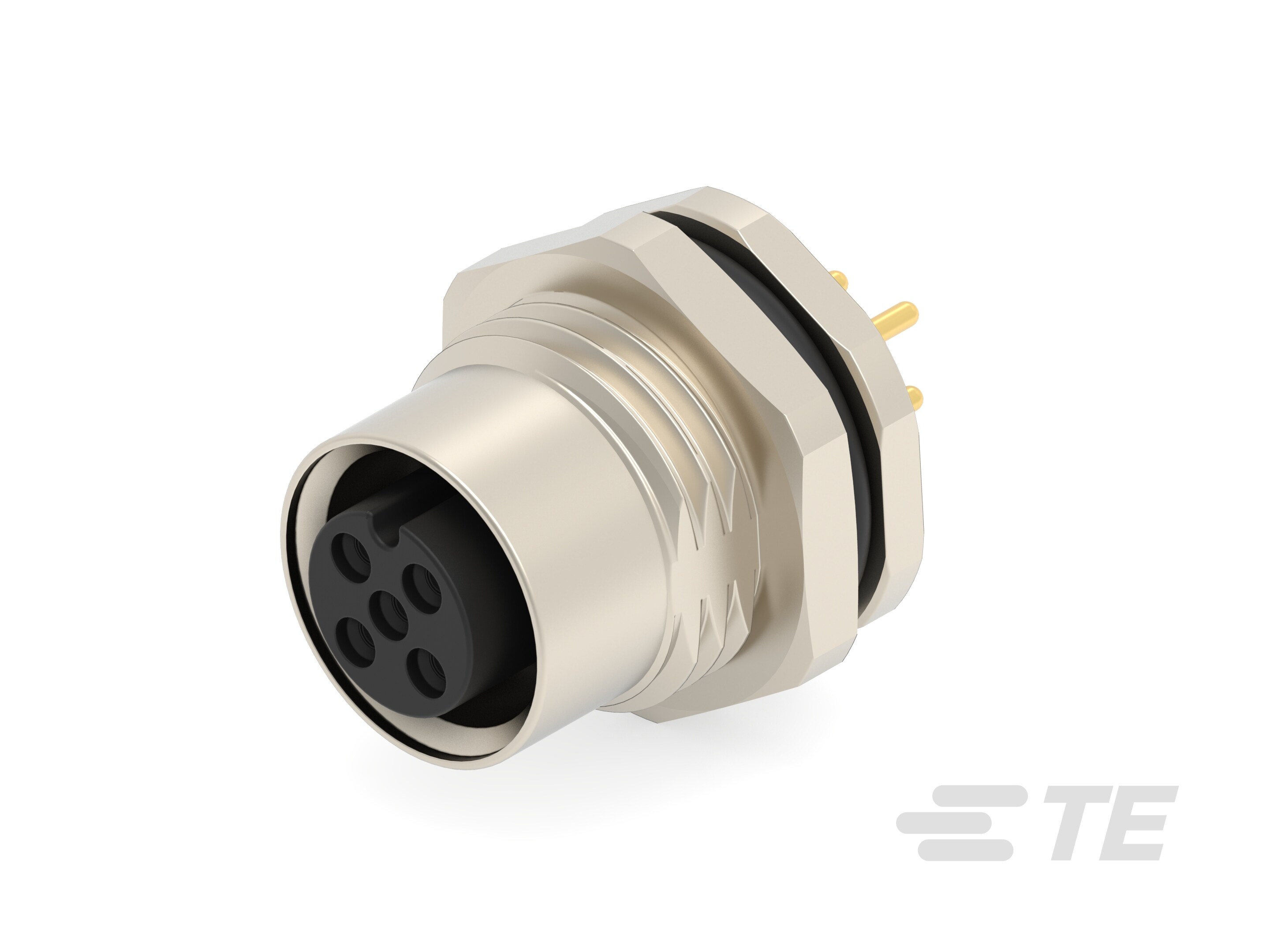

CONN PLUG FMALE 5POS GOLD SOLDER
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
T4141012051-000
ActiveTE Connectivity Raychem Cable Protection
CONN PLUG FMALE 5POS GOLD SOLDER
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | T4141012051-000 |
|---|---|
| Applications | Industrial |
| Color | Silver |
| Connector Type | Female Sockets, Plug |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | 3 µin |
| Contact Finish Thickness - Mating | 0.076 µm |
| Contact Material | Copper Alloy |
| Current Rating (Amps) | 4 A |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Insert Material | Polyamide (PA66), Nylon 6/6 |
| Material Flammability Rating | UL94 V-0 |
| Mounting Feature | Bulkhead - Front Side Nut |
| Mounting Type | Through Hole, Panel Mount |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Orientation | A |
| Primary Material | Metal |
| Shell Finish | Nickel |
| Shell Material | Copper Alloy |
| Shell Size - Insert | M12-5 |
| Shielding | Unshielded |
| Termination | Solder |
| Voltage Rating | 60 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 8.23 | |
| 10 | $ 7.18 | |||
| 25 | $ 6.99 | |||
| 50 | $ 6.80 | |||
| 100 | $ 6.38 | |||
| 250 | $ 6.35 | |||
| 500 | $ 5.97 | |||
| 1000 | $ 5.33 | |||
Description
General part information
T41410 Series
5 Position Circular Connector Plug, Female Sockets Solder
