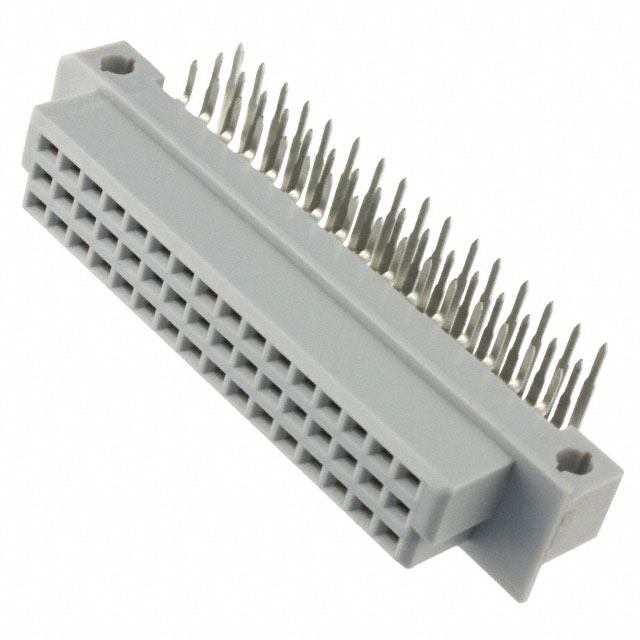

DIN-048RSC-SR1-HM

Active

3M (TC)

80001222316 DIN-048RSC-SR1-HM=DIN/48P/R-SKT/A,B,&C/RA/3.00MMST/10PDNI/ROHS

Search across all available documentation for this part.

Active

3M (TC)

80001222316 DIN-048RSC-SR1-HM=DIN/48P/R-SKT/A,B,&C/RA/3.00MMST/10PDNI/ROHS

Technical Specifications

Parameters and characteristics for this part

Specification	DIN-048RSC-SR1-HM

Connector Type	Receptacle, Female Sockets
Contact Finish	Gold
Contact Finish Thickness	3 Áin
Contact Finish Thickness	0.076 Ám
Current Rating (Amps)	3 A
Material - Insulation	Glass Filled, Polyester, Polybutylene Terephthalate (PBT)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions	48
Number of Positions Loaded	All
Number of Rows	3
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch [x]	2.54 mm
Pitch [x]	0.1 in
Style	R/2 (1/2 R)
Termination	Solder

Part	Number of Positions Loaded	Number of Rows	Mounting Type	Pitch [x]	Pitch [x]	Operating Temperature [Min]	Operating Temperature [Max]	Current Rating (Amps)	Number of Positions	Style	Contact Finish Thickness	Contact Finish Thickness	Material Flammability Rating	Termination	Material - Insulation	Contact Finish	Connector Type
3M (TC) DIN-048RSC-SR1-TG30	All	3	Through Hole Right Angle	2.54 mm	0.1 in	-55 °C	125 °C	3 A	48	R/2 (1/2 R)	0.76 Ám	30 Áin	UL94 V-0	Solder	Glass Filled Polybutylene Terephthalate (PBT) Polyester	Gold	Receptacle Female Sockets
3M (TC) DIN-048RSC-SR1-HM	All	3	Through Hole Right Angle	2.54 mm	0.1 in	-55 °C	125 °C	3 A	48	R/2 (1/2 R)	0.076 Ám	3 Áin	UL94 V-0	Solder	Glass Filled Polybutylene Terephthalate (PBT) Polyester	Gold	Receptacle Female Sockets
3M (TC) DIN-048RPC-S1-TR	All	3	Through Hole	2.54 mm	0.1 in	-55 °C	125 °C	3 A	48	R/2 (1/2 R)	0.076 Ám	3 Áin	UL94 V-0	Solder	Glass Filled Polybutylene Terephthalate (PBT) Polyester	Gold	Male Pins Plug
3M (TC) DIN-048RSC-RR1-TG30	All	3	Through Hole Right Angle	2.54 mm	0.1 in	-55 °C	125 °C	3 A	48	R/2 (1/2 R)	0.76 Ám	30 Áin	UL94 V-0	Solder	Glass Filled Polybutylene Terephthalate (PBT) Polyester	Gold	Receptacle Female Sockets
3M (TC) DIN-048RSC-SR1-TR	All	3	Through Hole Right Angle	2.54 mm	0.1 in	-55 °C	125 °C	3 A	48	R/2 (1/2 R)	0.076 Ám	3 Áin	UL94 V-0	Solder	Glass Filled Polybutylene Terephthalate (PBT) Polyester	Gold	Receptacle Female Sockets

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

48 Position Din Connector Receptacle, Female Sockets Gold Through Hole, Right Angle
