R183252007

Active

Radiall USA, Inc.

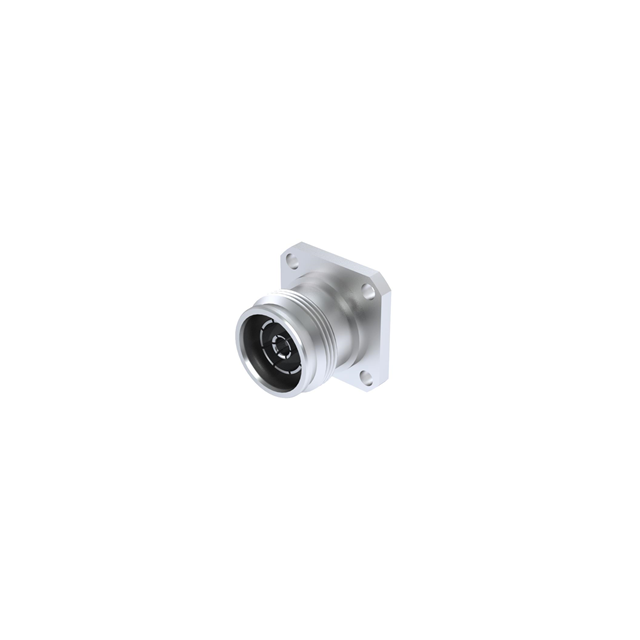

4.3-10 / STRAIGHT SQUARE FLANGE

Search across all available documentation for this part.

Active

Radiall USA, Inc.

4.3-10 / STRAIGHT SQUARE FLANGE

Technical Specifications

Parameters and characteristics for this part

Specification	R183252007

Body Finish	White Bronze
Body Material	Brass
Center Contact Material	Bronze
Center Contact Plating	Silver
Connector Style	4.3/10
Connector Type	Female Socket, Jack
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	6000 MHz
Housing Color	Silver
Impedance	50 Ohms
Ingress Protection	IP67 - Dust Tight, Waterproof
Mounting Feature	Flange
Number of Ports	1
Operating Temperature [Max]	90 °C
Operating Temperature [Min]	-55 °C
Shield Termination	Solder
Voltage Rating	500 V

Part	Ingress Protection	Shield Termination	Connector Type	Voltage Rating	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Feature	Body Finish	Number of Ports	Connector Style	Impedance	Dielectric Material	Housing Color	Body Material	Contact Termination	Center Contact Material	Center Contact Plating	Frequency - Max [Max]
Radiall USA, Inc. R183252007	IP67 - Dust Tight Waterproof	Solder	Female Socket Jack	500 V	90 °C	-55 °C	Flange	White Bronze	1	4.3/10	50 Ohms	Polytetrafluoroethylene (PTFE)	Silver	Brass	Solder	Bronze	Silver	6000 MHz

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	100	$ 18.44

General part information

4.3/10 Connector Jack, Female Socket 50 Ohms Panel Mount Solder
