Connectors, Interconnects

788157-2

Active

TE Connectivity Raychem Cable Protection

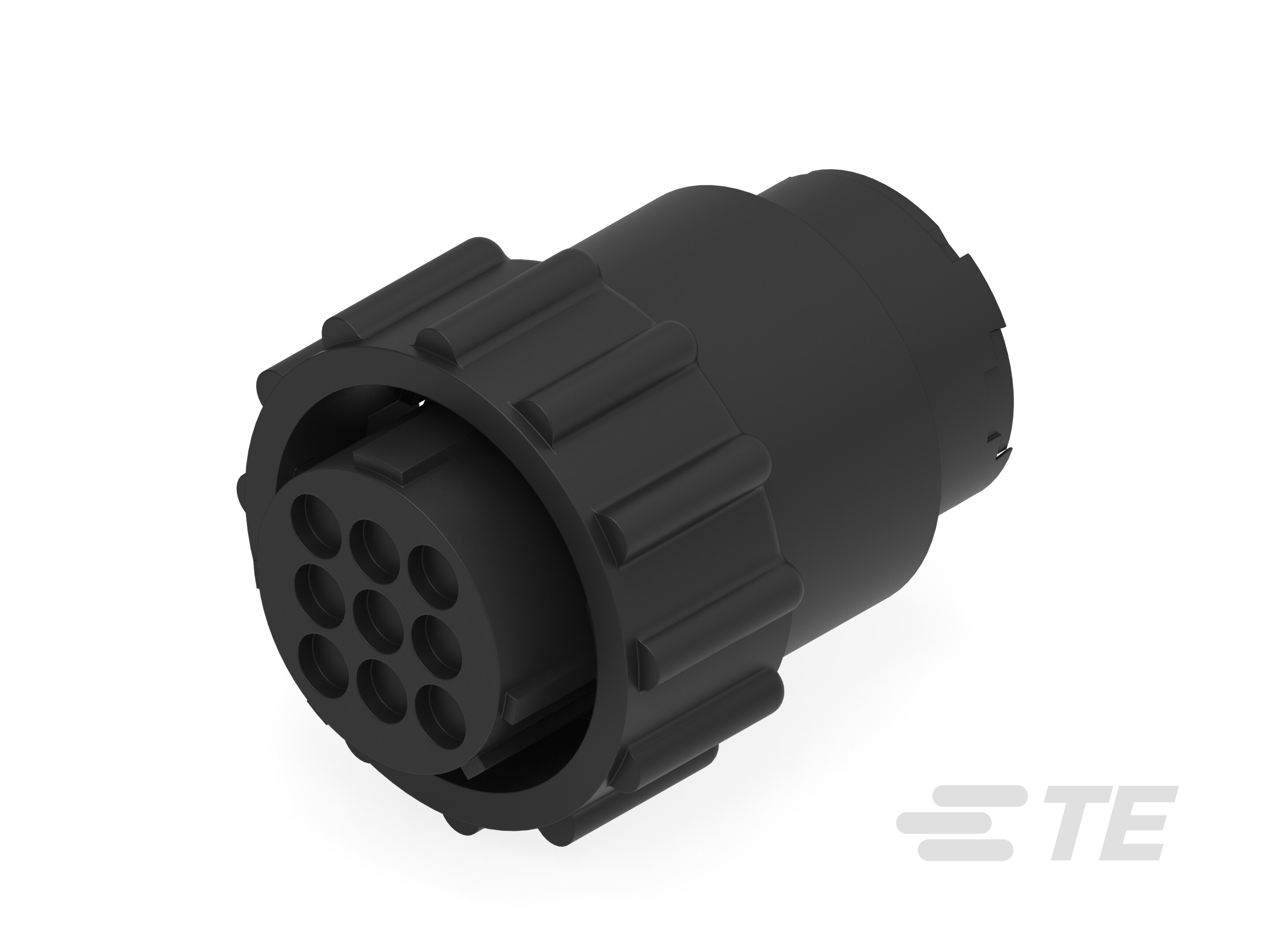

CONN PLUG HSG FMALE 9POS INLINE

Search across all available documentation for this part.

Connectors, Interconnects

Active

TE Connectivity Raychem Cable Protection

CONN PLUG HSG FMALE 9POS INLINE

Technical Specifications

Parameters and characteristics for this part

Specification	788157-2

Connector Type	Plug Housing
Contact Shape	Circular
Contact Size	16
Contact Type	Crimp
Features	Coupling Nut
Housing Color	Black
Ingress Protection	IP67 - Dust Tight, Waterproof
Insert Material	Thermoplastic
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	9
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Orientation	Keyed
Shell Size - Insert	13-9
Shielding	Unshielded
Type	For Female Sockets

Part	Insert Material	Contact Type	Orientation	Number of Positions	Shell Size - Insert	Mounting Type	Features	Type	Operating Temperature [Max]	Operating Temperature [Min]	Note	Material Flammability Rating	Contact Shape	Ingress Protection	Housing Color	Shielding	Connector Type	Contact Size
TE Connectivity Raychem Cable Protection 788157-2	Thermoplastic	Crimp	Keyed	9	13-9	Free Hanging (In-Line)	Coupling Nut	For Female Sockets	105 ░C	-55 °C	Contacts Not Included	UL94 V-0	Circular	IP67 - Dust Tight Waterproof	Black	Unshielded	Plug Housing	16

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

9 Position Circular Connector Plug Housing Free Hanging (In-Line) Coupling Nut
