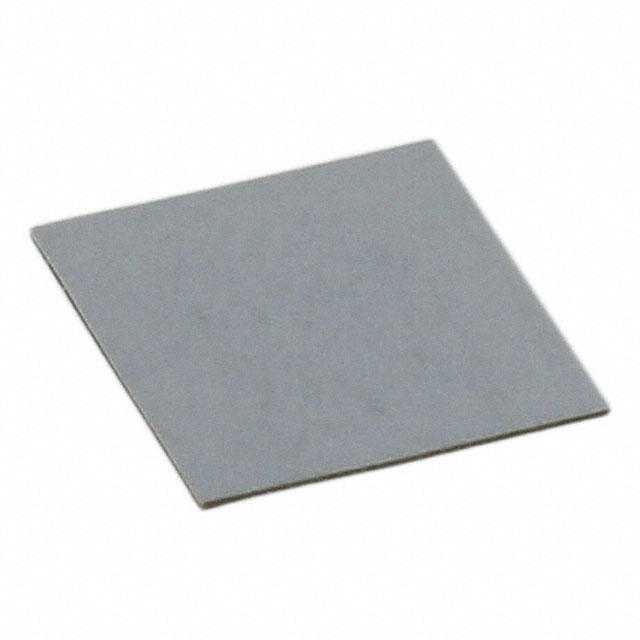

TI900-100-100-0.12-0

Active

t-Global Technology

THERM PAD 100MMX100MM WHT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDie Cut Parts Guide Die-Cut Tolerence Guide +2

TI900-100-100-0.12-0

Active

t-Global Technology

THERM PAD 100MMX100MM WHT

Deep-Dive with AI

DocumentsDie Cut Parts Guide Die-Cut Tolerence Guide +2

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	TI900-100-100-0.12-0	TI900 Series

Adhesive	-	Adhesive - One Side
Backing, Carrier	Viscose	Viscose
Color	White	White
Material	Silicone	Silicone
Outline [x]	100 mm	5 - 300 mm
Outline [y]	100 mm	5 - 320 mm
Shape	Square	Rectangular, Square
Shelf Life	24 Months	12 - 24 Months
Thermal Conductivity	1.8 W/m-K	1.8 W/m-K
Thickness [x]	0.005 in	0.005 in
Thickness [x]	0.127 mm	0.127 mm
Type	Conductive Insulator Pad	Conductive Insulator Pad, Conductive Insulator Pad, Roll

TI900 Series

THERM PAD 40X30MM W/ADH WHT

Part	Thermal Conductivity	Shelf Life	Thickness [x]	Thickness [x]	Backing, Carrier	Shape	Material	Outline [x]	Outline [y]	Adhesive	Color	Type
t-Global Technology TI900-40-30-0.12-1A	1.8 W/m-K	12 Months	0.005 in	0.127 mm	Viscose	Rectangular	Silicone	40 mm	30 mm	Adhesive - One Side	White	Conductive Insulator Pad
t-Global Technology TI900-25-25-0.12-0	1.8 W/m-K	24 Months	0.005 in	0.127 mm	Viscose	Square	Silicone	25 mm	25 mm		White	Conductive Insulator Pad
t-Global Technology TI900-20-20-0.12-0	1.8 W/m-K	24 Months	0.005 in	0.127 mm	Viscose	Square	Silicone	20 mm	20 mm		White	Conductive Insulator Pad
t-Global Technology TI900-10-50-0.12-0	1.8 W/m-K	24 Months	0.005 in	0.127 mm	Viscose	Rectangular	Silicone	50 mm	10 mm		White	Conductive Insulator Pad
t-Global Technology TI900-5-5-0.12-0	1.8 W/m-K	24 Months	0.005 in	0.127 mm	Viscose	Square	Silicone	5 mm	5 mm		White	Conductive Insulator Pad
t-Global Technology TI900-24-21.01-0.12-0	1.8 W/m-K	24 Months	0.005 in	0.127 mm	Viscose	Rectangular	Silicone	24 mm	21.01 mm		White	Conductive Insulator Pad
t-Global Technology TI900-150-150-0.12-0	1.8 W/m-K	24 Months	0.005 in	0.127 mm	Viscose	Square	Silicone	150 mm	150 mm		White	Conductive Insulator Pad
t-Global Technology TI900-300-300-0.12-0	1.8 W/m-K	24 Months	0.005 in	0.127 mm	Viscose	Square	Silicone	300 mm	300 mm		White	Conductive Insulator Pad
t-Global Technology TI900-50M-320-0.12-0	1.8 W/m-K	24 Months	0.005 in	0.127 mm	Viscose	Rectangular	Silicone	50 m	320 mm		White	Conductive Insulator Pad, Roll
t-Global Technology TI900-144.4-38-0.12-0	1.8 W/m-K	24 Months	0.005 in	0.127 mm	Viscose	Rectangular	Silicone	144.4 mm	38 mm		White	Conductive Insulator Pad

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	9	$ 6.26
