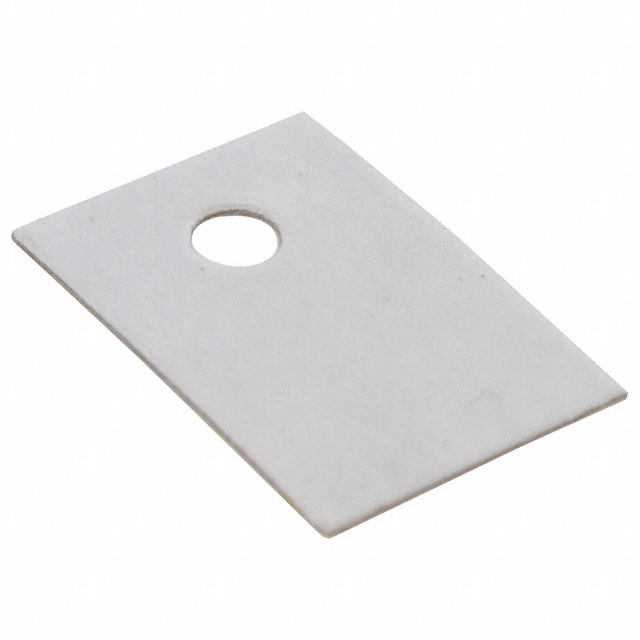

TI900-10-50-0.12-0

Active

t-Global Technology

THERM PAD 50X10MM WHT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDie Cut Parts Guide Thermal Pad Tolerance +2

TI900-10-50-0.12-0

Active

t-Global Technology

THERM PAD 50X10MM WHT

Deep-Dive with AI

DocumentsDie Cut Parts Guide Thermal Pad Tolerance +2

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 0.30
		10	$ 0.29
		25	$ 0.28
		50	$ 0.27
		100	$ 0.26
		250	$ 0.26

Description

General part information

TI900 Series

Thermal Pad White 50.00mm x 10.00mm Rectangular

Documents

Technical documentation and resources

Die Cut Parts Guide

Thermal Pad Tolerance

Datasheet

Die-Cut Tolerence Guide

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	TI900-10-50-0.12-0	TI900 Series

Adhesive	-	Adhesive - One Side
Backing, Carrier	Viscose	Viscose
Color	White	White
Material	Silicone	Silicone
Outline [x]	50 mm	5 - 300 mm
Outline [y]	10 mm	5 - 320 mm
Shape	Rectangular	Rectangular, Square
Shelf Life	24 Months	12 - 24 Months
Thermal Conductivity	1.8 W/m-K	1.8 W/m-K
Thickness [x]	0.005 in	0.005 in
Thickness [x]	0.127 mm	0.127 mm
Type	Conductive Insulator Pad	Conductive Insulator Pad, Conductive Insulator Pad, Roll

TI900 Series

THERM PAD 40X30MM W/ADH WHT

Part	Thermal Conductivity	Shelf Life	Thickness [x]	Thickness [x]	Backing, Carrier	Shape	Material	Outline [x]	Outline [y]	Adhesive	Color	Type
t-Global Technology TI900-40-30-0.12-1A	1.8 W/m-K	12 Months	0.005 in	0.127 mm	Viscose	Rectangular	Silicone	40 mm	30 mm	Adhesive - One Side	White	Conductive Insulator Pad
t-Global Technology TI900-25-25-0.12-0	1.8 W/m-K	24 Months	0.005 in	0.127 mm	Viscose	Square	Silicone	25 mm	25 mm		White	Conductive Insulator Pad
t-Global Technology TI900-20-20-0.12-0	1.8 W/m-K	24 Months	0.005 in	0.127 mm	Viscose	Square	Silicone	20 mm	20 mm		White	Conductive Insulator Pad
t-Global Technology TI900-10-50-0.12-0	1.8 W/m-K	24 Months	0.005 in	0.127 mm	Viscose	Rectangular	Silicone	50 mm	10 mm		White	Conductive Insulator Pad
t-Global Technology TI900-5-5-0.12-0	1.8 W/m-K	24 Months	0.005 in	0.127 mm	Viscose	Square	Silicone	5 mm	5 mm		White	Conductive Insulator Pad
t-Global Technology TI900-24-21.01-0.12-0	1.8 W/m-K	24 Months	0.005 in	0.127 mm	Viscose	Rectangular	Silicone	24 mm	21.01 mm		White	Conductive Insulator Pad
t-Global Technology TI900-150-150-0.12-0	1.8 W/m-K	24 Months	0.005 in	0.127 mm	Viscose	Square	Silicone	150 mm	150 mm		White	Conductive Insulator Pad
t-Global Technology TI900-300-300-0.12-0	1.8 W/m-K	24 Months	0.005 in	0.127 mm	Viscose	Square	Silicone	300 mm	300 mm		White	Conductive Insulator Pad
t-Global Technology TI900-50M-320-0.12-0	1.8 W/m-K	24 Months	0.005 in	0.127 mm	Viscose	Rectangular	Silicone	50 m	320 mm		White	Conductive Insulator Pad, Roll
t-Global Technology TI900-144.4-38-0.12-0	1.8 W/m-K	24 Months	0.005 in	0.127 mm	Viscose	Rectangular	Silicone	144.4 mm	38 mm		White	Conductive Insulator Pad
