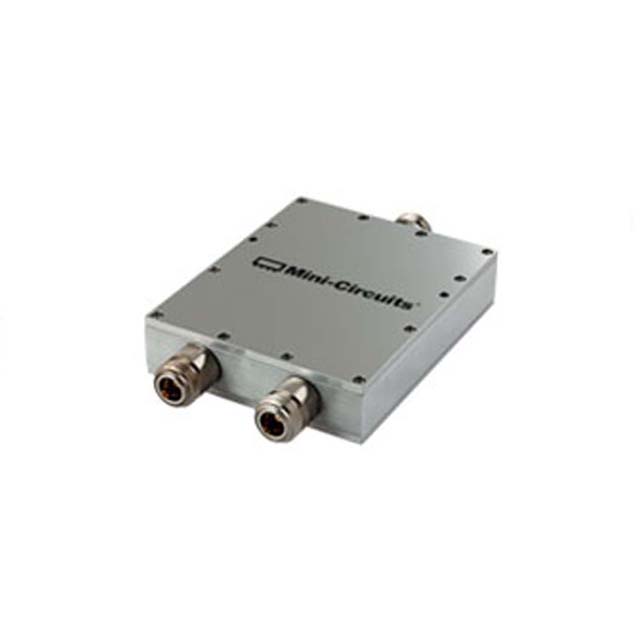

ZN2PD2-63A-N+

Active

MINI-CIRCUITS

PWR DIV / N / ROHS

Search across all available documentation for this part.

Active

MINI-CIRCUITS

PWR DIV / N / ROHS

Technical Specifications

Parameters and characteristics for this part

PWR DIV / N / ROHS

Part	Insertion Loss	Package / Case	Frequency [Min]	Frequency [Max]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Specifications [Max]	Specifications [Min]	Specifications
MINI-CIRCUITS ZN2PD2-63A-N+	0.9 dB	N-Type In-Line Module	350 MHz	6 GHz	23.11 mm	0.91 in	3.25 in	101.6 mm	4 "	82.55 mm	5 °	18 dB	1.4 VSWR

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

RF Power Divider 350 MHz ~ 6 GHz Isolation (Min) 18dB, 1.4 VSWR (Typ), 5° Imbalance (Max) N-Type In-Line Module
