LTM4656EY-1#PBF
ActiveSYNCHRONOUS BOOST ΜMODULE REGULATOR WITH INPUT-OUTPUT SHORT PROTECTION
Deep-Dive with AI
Search across all available documentation for this part.
LTM4656EY-1#PBF
ActiveSYNCHRONOUS BOOST ΜMODULE REGULATOR WITH INPUT-OUTPUT SHORT PROTECTION
Technical Specifications
Parameters and characteristics for this part
| Specification | LTM4656EY-1#PBF |
|---|---|
| Applications | ITE (Commercial) |
| Current - Output (Max) [Max] | 4 A |
| Efficiency | 98 % |
| Features | Adjustable Output, Load Sharing |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |

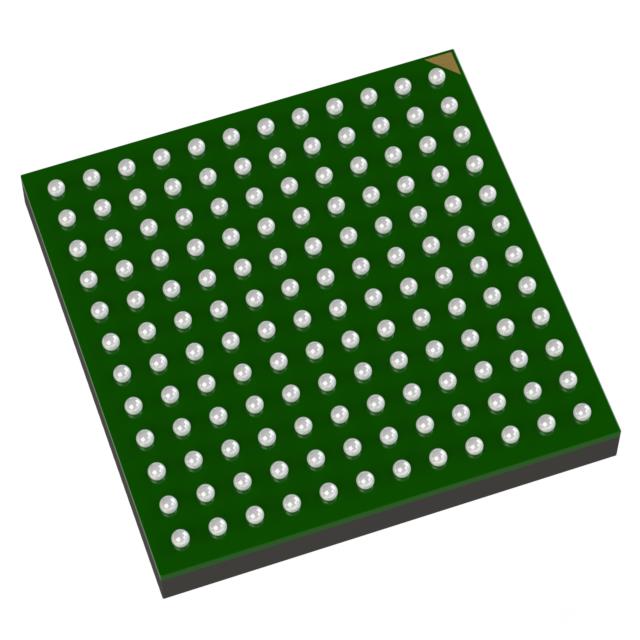

| Package / Case | 144-BBGA Module |
| Size / Dimension [x] | 16 mm |
| Size / Dimension [x] | 0.63 " |
| Size / Dimension [y] | 0.63 in |
| Size / Dimension [y] | 16 mm |
| Size / Dimension [z] | 0.29 " |
| Size / Dimension [z] | 7.4 mm |
| Supplier Device Package | 144-BGA (16x16) |
| Type | Non-Isolated PoL Module |
| Voltage - Input (Max) [Max] | 28 V |
| Voltage - Input (Min) [Min] | 4.5 V |
| Voltage - Output 1 [Max] | 36 V |
| Voltage - Output 1 [Min] | 6 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 40.98 | |
| 10 | $ 30.59 | |||
| 25 | $ 27.85 | |||
| 80 | $ 27.66 | |||
Description
General part information
LTM4656LTM4656-1 Series
The LTM4656 is a complete high efficiency boost μModule®(power module) regulator with the switching controller, power FETs, inductor, and all supporting components. Only a few input and output capacitors are needed. Operating over an input voltage range of 4.5V to 28V, the LTM4656 supports an output voltage range of 6V to 36V, set by a single external resistor. Its high efficiency design delivers up to 5A continuous output current. An in-line protection circuit sets the maximum input current, and will trip off the input power if exceeded and retry (see Typical Applications section on data sheet).The high density boost design can convert up to 180W of output power.Fault protection features include overtemperature protection, and overcurrent protection input referred with auto-retry. The μmodule is offered in a space saving and thermally enhanced 16mm × 16mm × 7.07mm BGA package. The LTM4656 is Pb-free and RoHS compliant.APPLICATIONSTelecom and Networking EquipmentElectronic Test Equipment
