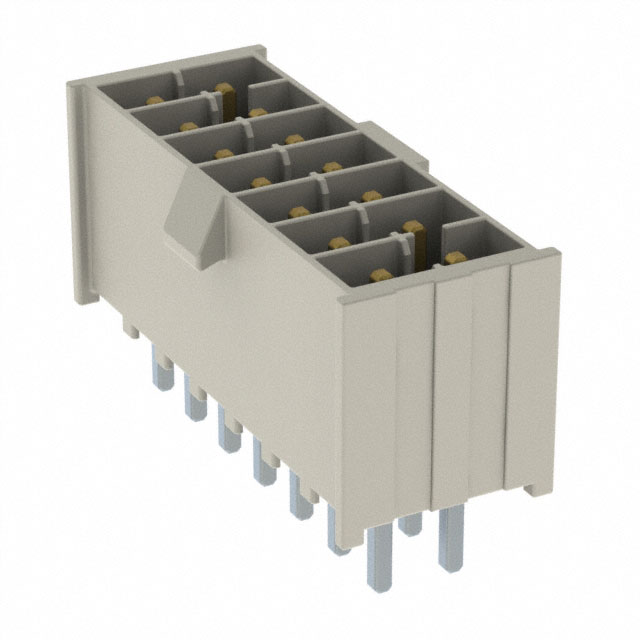

IPL1-107-01-F-D-K

Active

Samtec Inc.

CONN HEADER VERT 14POS 2.54MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsIPL1 Datasheet Datasheet +2

IPL1-107-01-F-D-K

Active

Samtec Inc.

CONN HEADER VERT 14POS 2.54MM

Deep-Dive with AI

DocumentsIPL1 Datasheet Datasheet +2

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	IPL1-107-01-F-D-K

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	3 µin
Contact Finish Thickness - Mating	0.076 µm
Contact Length - Mating	5.46 mm
Contact Length - Mating	0.215 in
Contact Length - Post [x]	0.12 in
Contact Length - Post [x]	3.05 mm
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Male Pin
Fastening Type	Locking Ramp
Insulation Color	Natural
Insulation Height	8.13 mm
Insulation Height	0.32 in
Insulation Material	Liquid Crystal Polymer (LCP)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	14
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Row Spacing - Mating [x]	2.54 mm
Row Spacing - Mating [x]	0.1 in
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder
Voltage Rating	954 VDC, 675 VAC

IPL1-107 Series

Part	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Insulation Color	Termination	Contact Type	Style	Number of Rows	Number of Positions Loaded	Shrouding	Insulation Height	Insulation Height	Contact Finish - Mating	Voltage Rating	Insulation Material	Pitch - Mating	Pitch - Mating	Contact Material	Material Flammability Rating	Contact Shape	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Length - Mating	Contact Length - Mating	Contact Finish - Post	Number of Positions	Connector Type	Fastening Type	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Contact Length - Post	Contact Length - Post	Features	Contact Length - Post [x]	Contact Length - Post [x]
Samtec Inc. IPL1-107-02-F-D-K-TR	Surface Mount	-55 °C	125 °C	Natural	Solder	Male Pin	Board to Cable/Wire	2	All	Shrouded - 4 Wall	8.13 mm	0.32 in	Gold	675 VAC 954 VDC	Liquid Crystal Polymer (LCP)	0.1 in	2.54 mm	Phosphor Bronze	UL94 V-0	Square	3 µin	0.076 µm	5.46 mm	0.215 in	Tin	14	Header	Locking Ramp	2.54 mm	0.1 in
Samtec Inc. IPL1-107-02-S-D-K-TR	Surface Mount	-55 °C	125 °C	Natural	Solder	Male Pin	Board to Cable/Wire	2	All	Shrouded - 4 Wall	8.13 mm	0.32 in	Gold	675 VAC 954 VDC	Liquid Crystal Polymer (LCP)	0.1 in	2.54 mm	Phosphor Bronze	UL94 V-0	Square	30 Áin	0.76 Ám	5.46 mm	0.215 in	Tin	14	Header	Locking Ramp	2.54 mm	0.1 in
Samtec Inc. IPL1-107-03-F-SH-K	Surface Mount Right Angle	-55 °C	125 °C	Natural	Solder	Male Pin	Board to Cable/Wire	1	All	Shrouded - 4 Wall	5.6 mm	0.22 in	Gold	675 VAC 954 VDC	Liquid Crystal Polymer (LCP)	0.1 in	2.54 mm	Phosphor Bronze	UL94 V-0	Square	3 µin	0.076 µm	5.46 mm	0.215 in	Tin	7	Header	Locking Ramp
Samtec Inc. IPL1-107-01-F-D-RE1-K-WT	Through Hole Right Angle	-55 °C	125 °C	Natural	Solder	Male Pin	Board to Cable/Wire	2	All	Shrouded - 4 Wall	8.25 mm	0.325 in	Gold	675 VAC 954 VDC	Liquid Crystal Polymer (LCP)	0.1 in	2.54 mm	Phosphor Bronze	UL94 V-0	Square	3 µin	0.076 µm	5.46 mm	0.215 in	Tin	14	Header	Locking Ramp	2.54 mm	0.1 in	2.16 mm	0.085 in	Board Guide
Samtec Inc. IPL1-107-01-F-D-K	Through Hole	-55 °C	125 °C	Natural	Solder	Male Pin	Board to Cable/Wire	2	All	Shrouded - 4 Wall	8.13 mm	0.32 in	Gold	675 VAC 954 VDC	Liquid Crystal Polymer (LCP)	0.1 in	2.54 mm	Phosphor Bronze	UL94 V-0	Square	3 µin	0.076 µm	5.46 mm	0.215 in	Tin	14	Header	Locking Ramp	2.54 mm	0.1 in				0.12 in	3.05 mm
Samtec Inc. IPL1-107-01-L-D-RA-P	Through Hole Right Angle	-55 °C	125 °C	Natural	Solder	Male Pin	Board to Cable/Wire	2	All	Shrouded - 4 Wall	7.37 mm	0.29 in	Gold	675 VAC 954 VDC	Liquid Crystal Polymer (LCP)	0.1 in	2.54 mm	Phosphor Bronze	UL94 V-0	Square	10 çin	0.25 çm	5.46 mm	0.215 in	Tin	14	Header	Locking Ramp	2.54 mm	0.1 in	2.16 mm	0.085 in
Samtec Inc. IPL1-107-02-F-D-P	Surface Mount	-55 °C	125 °C	Natural	Solder	Male Pin	Board to Cable/Wire	2	All	Shrouded - 4 Wall	8.13 mm	0.32 in	Gold	675 VAC 954 VDC	Liquid Crystal Polymer (LCP)	0.1 in	2.54 mm	Phosphor Bronze	UL94 V-0	Square	3 µin	0.076 µm	5.46 mm	0.215 in	Tin	14	Header	Locking Ramp	2.54 mm	0.1 in
Samtec Inc. IPL1-107-01-S-S-K	Through Hole	-55 °C	125 °C	Natural	Solder	Male Pin	Board to Cable/Wire	1	All	Shrouded - 4 Wall	8.13 mm	0.32 in	Gold	675 VAC 954 VDC	Liquid Crystal Polymer (LCP)	0.1 in	2.54 mm	Phosphor Bronze	UL94 V-0	Square	30 Áin	0.76 Ám	5.46 mm	0.215 in	Tin	7	Header	Locking Ramp						0.12 in	3.05 mm
Samtec Inc. IPL1-107-01-L-D-RE1-K-WT	Through Hole Right Angle	-55 °C	125 °C	Natural	Solder	Male Pin	Board to Cable/Wire	2	All	Shrouded - 4 Wall	8.25 mm	0.325 in	Gold	675 VAC 954 VDC	Liquid Crystal Polymer (LCP)	0.1 in	2.54 mm	Phosphor Bronze	UL94 V-0	Square	10 çin	0.25 çm	5.46 mm	0.215 in	Tin	14	Header	Locking Ramp	2.54 mm	0.1 in	2.16 mm	0.085 in	Board Guide
Samtec Inc. IPL1-107-02-F-D-K	Surface Mount	-55 °C	125 °C	Natural	Solder	Male Pin	Board to Cable/Wire	2	All	Shrouded - 4 Wall	8.13 mm	0.32 in	Gold	675 VAC 954 VDC	Liquid Crystal Polymer (LCP)	0.1 in	2.54 mm	Phosphor Bronze	UL94 V-0	Square	3 µin	0.076 µm	5.46 mm	0.215 in	Tin	14	Header	Locking Ramp	2.54 mm	0.1 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 3.19
		50	$ 2.51
		100	$ 2.08
		500	$ 1.69
		1000	$ 1.50
