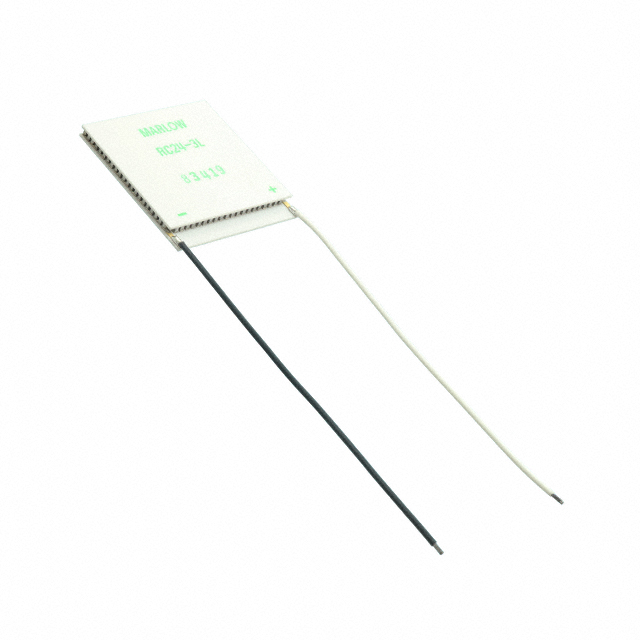

RC24-3-01L

Active

Marlow Industries, Inc.

TEM 40X40X3.61MM

Search across all available documentation for this part.

Active

Marlow Industries, Inc.

TEM 40X40X3.61MM

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	50	$ 34.72

General part information

Peltier Module 49.6W @ 27°C 2.9 A 130°C

Technical documentation and resources

No documents available

Part	Height [z]	Resistance	Operating Temperature	Current - Max [Max]	Voltage - Max [Max]	Delta Tmax @ Th	Number of Stages	Features	Qmax @ Th	Size / Dimension [y]	Size / Dimension [x]
Marlow Industries, Inc. RC24-3-01L	3.61 mm	8.06 Ohms	130 °C	2.9 A	26.7 V	60 °C	1	Lapped, Lead Wires	49.6 W	40.01 mm	44.7 mm
Marlow Industries, Inc. RC24-3-01S	3.71 mm	8.06 Ohms	130 °C	2.9 A	26.7 V	60 °C	1	Lead Wires, Sealed	49.6 W	40.01 mm	44.7 mm
Marlow Industries, Inc. RC24-3-01LS	3.61 mm	8.06 Ohms	130 °C	2.9 A	26.7 V	60 °C	1	Lapped, Lead Wires, Sealed	49.6 W	40.01 mm	44.7 mm
Marlow Industries, Inc. RC24-3-01	3.71 mm	8.06 Ohms	130 °C	2.9 A	26.7 V	60 °C	1	Lead Wires	49.6 W	40.01 mm	44.7 mm
