80305C

Active

Murata Power Solutions Inc.

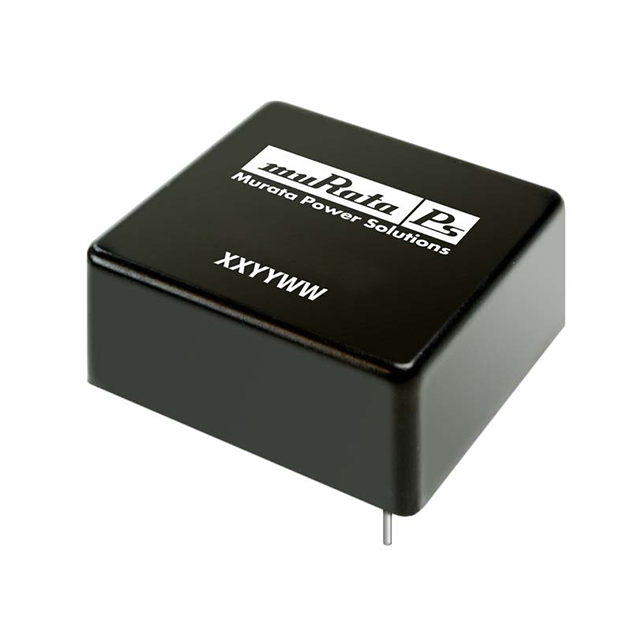

FIXED IND 30UH 2A 600 MOHM TH

Search across all available documentation for this part.

Active

Murata Power Solutions Inc.

FIXED IND 30UH 2A 600 MOHM TH

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	80305C	803 Series

Current Rating (Amps)	2 A	2 - 3.5 A
DC Resistance (DCR)	-	100 mOhm
DC Resistance (DCR)	-	90 mOhm
Height - Seated (Max)	-	14.8 mm
Height - Seated (Max)	-	0.583 in
Height - Seated (Max) [Max] [z]	11 mm	11 mm
Height - Seated (Max) [Max] [z]	0.433 in	0.433 in
Inductance	-	150 - 220 µH
Mounting Type	Through Hole	Through Hole
Operating Temperature [Max]	70 °C	70 °C
Operating Temperature [Min]	0 °C	0 °C
Package / Case	Horizontal, Corner Terminals, Radial	Horizontal, Corner Terminals, Radial
Shielding	Unshielded	Unshielded
Size / Dimension [x]	0.866 in	0.866 - 1.114 in
Size / Dimension [x]	22 mm	22 - 28.3 mm
Size / Dimension [y]	0.866 in	0.866 - 1.114 in
Size / Dimension [y]	22 mm	22 - 28.3 mm
Tolerance	10 %	10 %
Type	Toroidal	Toroidal

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

FIXED IND 220UH 3A 100 MOHM TH

Part	Package / Case	Type	Tolerance	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Current Rating (Amps)	Shielding	DC Resistance (DCR)	Mounting Type	Inductance	Operating Temperature [Max]	DC Resistance (DCR) [Max]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]
Murata Power Solutions Inc. 80306C	Corner Terminals, Horizontal, Radial	Toroidal	10 %	28.3 mm	1.114 in	1.114 in	28.3 mm	14.8 mm	0.583 in	3 A	Unshielded	100 mOhm	Through Hole	220 µH	70 °C
Murata Power Solutions Inc. 80304C	Corner Terminals, Horizontal, Radial	Toroidal	10 %	28.3 mm	1.114 in	1.114 in	28.3 mm	14.8 mm	0.583 in	3.5 A	Unshielded		Through Hole	150 µH	70 °C	90 mOhm
Murata Power Solutions Inc. 80305C	Corner Terminals, Horizontal, Radial	Toroidal	10 %	22 mm	0.866 in	0.866 in	22 mm			2 A	Unshielded		Through Hole		70 °C		11 mm	0.433 in

General part information

30 µH Unshielded Toroidal Inductor 2 A 600mOhm Max Radial, Horizontal, Corner Terminals
