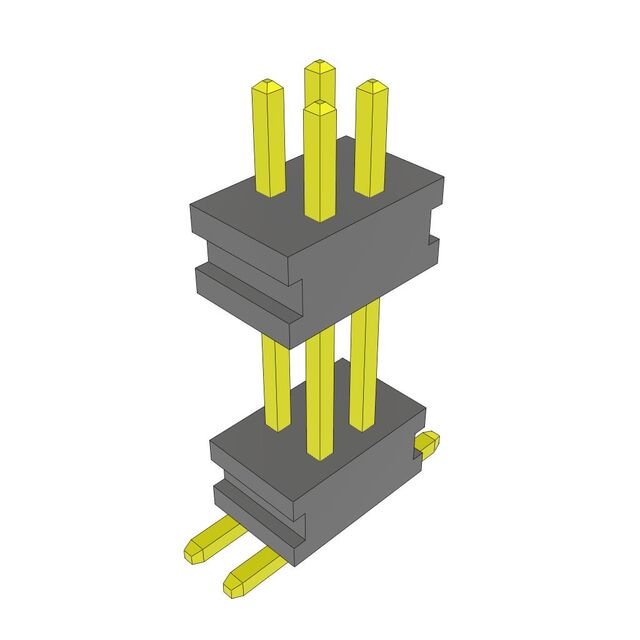

MW-02-03-G-D-245-065

Active

Samtec Inc.

CONN HDR 4POS 0.039 STACK SMD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

MW-02-03-G-D-245-065

Active

Samtec Inc.

CONN HDR 4POS 0.039 STACK SMD

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	MW-02-03-G-D-245-065

Color	Black, Natural
Contact Finish - Post (Mating)	Gold
Contact Finish Thickness - Post (Mating)	0.25 Ám
Contact Finish Thickness - Post (Mating)	10 Áin
Length - Overall Pin [x]	7.874 mm
Length - Overall Pin [x]	0.31 in
Length - Post (Mating) [x]	1.651 mm
Length - Post (Mating) [x]	0.065 in
Length - Stack Height [x]	6.223 mm
Length - Stack Height [x]	0.245 in
Mounting Type	Surface Mount
Number of Positions	4
Number of Rows	2
Pitch [x]	0.039 in
Pitch [x]	1 mm
Row Spacing	0.039 in
Row Spacing	1 mm
Termination	Solder

MW-02-03 Series

Part	Contact Finish - Post (Mating)	Length - Post (Mating) [x]	Length - Post (Mating) [x]	Pitch [x]	Pitch [x]	Length - Overall Pin [x]	Length - Overall Pin [x]	Mounting Type	Color	Termination	Contact Finish Thickness - Post (Mating)	Contact Finish Thickness - Post (Mating)	Number of Rows	Number of Positions	Row Spacing	Row Spacing	Length - Stack Height [z]	Length - Stack Height [z]	Length - Stack Height [x]	Length - Stack Height [x]	Length - Overall Pin	Length - Overall Pin	Length - Overall Pin
Samtec Inc. MW-02-03-G-D-100-065-TR	Gold	1.651 mm	0.065 in	0.039 in	1 mm	0.165 in	4.191 mm	Surface Mount	Black	Solder	0.25 Ám	10 Áin	2	4	0.039 in	1 mm	0.1 in	2.54 mm
Samtec Inc. MW-02-03-G-D-137-065	Gold	1.651 mm	0.065 in	0.039 in	1 mm			Surface Mount	Black Natural	Solder	0.25 Ám	10 Áin	2	4	0.039 in	1 mm			0.137 in	3.48 mm	5.131 mm	0.202 in
Samtec Inc. MW-02-03-G-D-150-065	Gold	1.651 mm	0.065 in	0.039 in	1 mm	0.215 in	5.461 mm	Surface Mount	Black Natural	Solder	0.25 Ám	10 Áin	2	4	0.039 in	1 mm	0.15 in	3.81 mm
Samtec Inc. MW-02-03-G-D-200-095	Gold	2.413 mm	0.095 in	0.039 in	1 mm			Surface Mount	Black Natural	Solder	0.25 Ám	10 Áin	2	4	0.039 in	1 mm					7.493 mm	0.295 in
Samtec Inc. MW-02-03-G-D-220-065-TR	Gold	1.651 mm	0.065 in	0.039 in	1 mm	0.285 in	7.239 mm	Surface Mount	Black Natural	Solder	0.25 Ám	10 Áin	2	4	0.039 in	1 mm
Samtec Inc. MW-02-03-G-D-137-065-TR	Gold	1.651 mm	0.065 in	0.039 in	1 mm			Surface Mount	Black Natural	Solder	0.25 Ám	10 Áin	2	4	0.039 in	1 mm			0.137 in	3.48 mm	5.131 mm	0.202 in
Samtec Inc. MW-02-03-G-D-150-080	Gold			0.039 in	1 mm	0.23 in	5.842 mm	Surface Mount	Black Natural	Solder	0.25 Ám	10 Áin	2	4	0.039 in	1 mm	0.15 in	3.81 mm
Samtec Inc. MW-02-03-G-D-245-065	Gold	1.651 mm	0.065 in	0.039 in	1 mm	0.31 in	7.874 mm	Surface Mount	Black Natural	Solder	0.25 Ám	10 Áin	2	4	0.039 in	1 mm			0.245 in	6.223 mm
Samtec Inc. MW-02-03-G-D-181-065	Gold	1.651 mm	0.065 in	0.039 in	1 mm			Surface Mount	Black Natural	Solder	0.25 Ám	10 Áin	2	4	0.039 in	1 mm			0.181 in	4.597 mm		6.248 mm	0.246 in
Samtec Inc. MW-02-03-G-D-205-105	Gold	2.667 mm	0.105 in	0.039 in	1 mm	0.31 in	7.874 mm	Surface Mount	Black Natural	Solder	0.25 Ám	10 Áin	2	4	0.039 in	1 mm			0.205 in	5.207 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 2.00
		50	$ 1.63
		100	$ 1.38
		500	$ 1.23
		1000	$ 1.15

Description

General part information

MW-02-03 Series

4 Position Header Spacer Connector 0.039" (1.00mm) Gold Surface Mount
