5200FE 0081000

Active

Belden Inc.

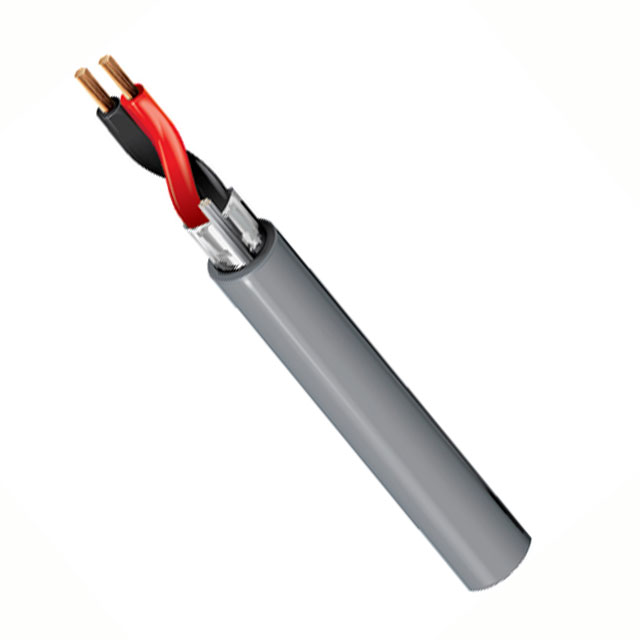

CABLE 2CON 16AWG GRAY SHLD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

5200FE 0081000

Active

Belden Inc.

CABLE 2CON 16AWG GRAY SHLD

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	5200FE 0081000

Cable Type	Multi-Conductor
Conductor Insulation	Polypropylene (PP)
Conductor Material	Copper, Bare
Conductor Strand [custom]	19 Strands
Conductor Strand [custom]	29 AWG
Features	Rip Cord, Drain Wire
Jacket (Insulation) Diameter [diameter]	4.67 mm
Jacket (Insulation) Diameter [diameter]	0.184 in
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC), Riser
Jacket (Insulation) Thickness	0.432 mm
Jacket (Insulation) Thickness	0.017 in
Jacket Color	Gray
Length	1000 ft
Length	304.8 m
Number of Conductors	2
Shield Coverage	100 %
Shield Material	Aluminum
Shield Type	Foil
Usage	Commercial Audio
Wire Gauge	16 AWG

5200FE Series

Part	Cable Type	Conductor Material	Conductor Insulation	Shield Coverage	Wire Gauge	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Shield Material	Length	Length	Shield Type	Usage	Jacket Color	Jacket (Insulation) Material	Conductor Strand [custom]	Conductor Strand [custom]	Features	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Number of Conductors	Ratings	Voltage	Length [x]	Length [x]
Belden Inc. 5200FE 0081000	Multi-Conductor	Copper Bare	Polypropylene (PP)	100 %	16 AWG	4.67 mm	0.184 in	Aluminum	1000 ft	304.8 m	Foil	Commercial Audio	Gray	Poly-Vinyl Chloride (PVC) Riser	19 Strands	29 AWG	Drain Wire Rip Cord	0.432 mm	0.017 in	2
Belden Inc. 5200FE 0021000	Multi-Conductor	Copper Tinned	Polypropylene (PP)	100 %	16 AWG	4.78 mm	0.188 "	Aluminum	1000 ft	304.8 m	Foil	Security Sound	Red	Poly-Vinyl Chloride (PVC) Riser	19 Strands	29 AWG	Drain Wire Rip Cord	0.432 mm	0.017 in	2	UL Style CMR	300 V
Belden Inc. 5200FE 008U500	Multi-Conductor	Copper Tinned	Polypropylene (PP)	100 %	16 AWG	4.78 mm	0.188 "	Aluminum			Foil	Security Sound	Gray	Poly-Vinyl Chloride (PVC) Riser	19 Strands	29 AWG	Drain Wire Rip Cord	0.432 mm	0.017 in	2	UL Style CMR	300 V	500 '	152.4 m
Belden Inc. 5200FE 0101000	Multi-Conductor	Copper Tinned	Polypropylene (PP)	100 %	16 AWG	4.78 mm	0.188 "	Aluminum	1000 ft	304.8 m	Foil	Security Sound	Black	Poly-Vinyl Chloride (PVC) Riser	19 Strands	29 AWG	Drain Wire Rip Cord	0.432 mm	0.017 in	2	UL Style CMR	300 V
Belden Inc. 5200FE 0041000	Multi-Conductor	Copper Tinned	Polypropylene (PP)	100 %	16 AWG	4.78 mm	0.188 "	Aluminum	1000 ft	304.8 m	Foil	Security Sound	Yellow	Poly-Vinyl Chloride (PVC) Riser	19 Strands	29 AWG	Drain Wire Rip Cord	0.432 mm	0.017 in	2	UL Style CMR	300 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	1000	$ 0.61
		2000	$ 0.58
		3000	$ 0.56
		5000	$ 0.54
		7000	$ 0.53
		10000	$ 0.52

Description

General part information

5200FE Series

2 Conductor Multi-Conductor Cable Gray 16 AWG Foil 1000.0' (304.8m)
