SSF-LXH240GGD

Active

Lumex Opto/Components Inc.

LED CBI 2.9MM BI-LVL GN RA PCMNT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

SSF-LXH240GGD

Active

Lumex Opto/Components Inc.

LED CBI 2.9MM BI-LVL GN RA PCMNT

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 1.07
		10	$ 0.68
		100	$ 0.50
		500	$ 0.46
		1000	$ 0.38
		2000	$ 0.36
		5000	$ 0.35
		10000	$ 0.34
		25000	$ 0.34

Description

General part information

SSF-LXH240 Series

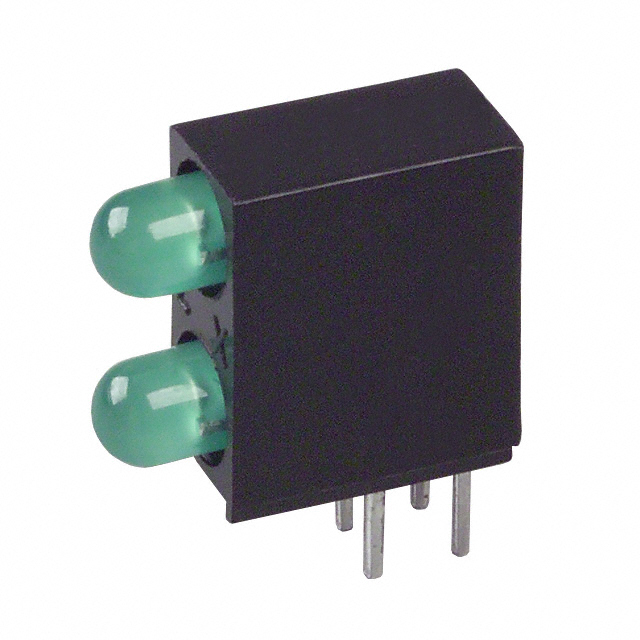

LED Circuit Board Indicator LED Circuit Board Indicator 2 High Green (x 2) Diffused, Tinted 2.2V 20mA Round with Domed Top 2.90mm Dia Through Hole, Right Angle

Documents

Technical documentation and resources

Specification	SSF-LXH240GGD	SSF-LXH240 Series

Color	Green (x 2)	Red (x 1), Green (x 1), Red, Green, Yellow (x 2), Yellow, Green (x 2)
Configuration	2 High	2 High
Current	-	10 - 30 mA
Lens Size	-	3 mm
Lens Size	-	T-1
Lens Size [diameter]	2.9 mm	2.9 mm
Lens Style	Round with Domed Top	Round with Domed Top
Lens Type	Tinted, Diffused	Diffused, Tinted
Millicandela Rating	40 mcd	15 - 1000 mcd
Millicandela Rating	-	30 mcd
Millicandela Rating	-	40 mcd
Mounting Type	Through Hole, Right Angle	Through Hole, Right Angle
Viewing Angle	60 °	60 - 80 °
Viewing Angle	-	40 °
Voltage Rating	-	1.9 V
Voltage Rating	-	2.1 V
Voltage Rating	-	2 - 2.2 V
Wavelength - Peak	565 nm	565 - 635 nm
Wavelength - Peak	-	574 - 650 nm

Part	Color	Wavelength - Peak [custom]	Voltage Rating	Voltage Rating	Lens Style	Viewing Angle [custom]	Lens Type	Current	Mounting Type	Millicandela Rating	Lens Size	Lens Size	Configuration	Voltage Rating	Wavelength - Peak	Lens Size [diameter]	Viewing Angle	Millicandela Rating [custom]	Millicandela Rating [custom]
Lumex Opto/Components Inc. SSF-LXH240SUGSID	Green (x 1), Red (x 1)	574 nm, 650 nm	1.9 V	2.1 V	Round with Domed Top	40 °	Diffused	10 mA, 10 mA	Through Hole, Right Angle	180 mcd, 1000 mcd	3 mm	T-1	2 High
Lumex Opto/Components Inc. SSF-LXH240GID	Green, Red				Round with Domed Top	40 °	Diffused	25 mA, 30 mA	Through Hole, Right Angle	30 mcd			2 High	2 V, 2.2 V	565 nm, 627 nm
Lumex Opto/Components Inc. SSF-LXH240IID	Red				Round with Domed Top		Diffused, Tinted		Through Hole, Right Angle	15 mcd			2 High	2 V	635 nm	2.9 mm	80 °
Lumex Opto/Components Inc. SSF-LXH240YYD	Yellow (x 2)				Round with Domed Top		Diffused, Tinted		Through Hole, Right Angle	100 mcd	3 mm	T-1	2 High	2.1 V	590 nm		60 °
Lumex Opto/Components Inc. SSF-LXH240GYD	Green, Yellow				Round with Domed Top		Diffused, Tinted		Through Hole, Right Angle	15 mcd	3 mm	T-1	2 High	2.1 V	565 nm, 585 nm		80 °
Lumex Opto/Components Inc. SSF-LXH240YGD	Green, Yellow				Round with Domed Top		Diffused, Tinted		Through Hole, Right Angle	15 mcd	3 mm	T-1	2 High	2.1 V	565 nm, 585 nm		80 °
Lumex Opto/Components Inc. SSF-LXH240LIID	Red				Round with Domed Top		Diffused, Tinted		Through Hole, Right Angle	15 mcd	3 mm	T-1	2 High	2 V	635 nm		80 °
Lumex Opto/Components Inc. SSF-LXH240IGD	Green (x 1), Red (x 1)				Round with Domed Top		Diffused, Tinted	25 mA, 30 mA			3 mm	T-1	2 High	2 V, 2.2 V	565 nm, 635 nm		60 °	30 mcd	40 mcd
Lumex Opto/Components Inc. SSF-LXH240GGD	Green (x 2)				Round with Domed Top		Diffused, Tinted		Through Hole, Right Angle	40 mcd			2 High		565 nm	2.9 mm	60 °
