PE1016-8

Active

Pasternack

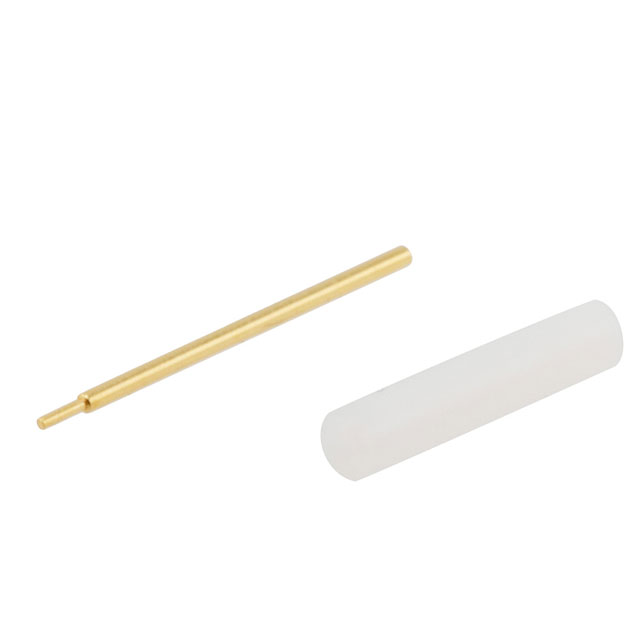

LAUNCH PIN&DIEL .015" (D) .265"L

Search across all available documentation for this part.

Active

Pasternack

LAUNCH PIN&DIEL .015" (D) .265"L

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	PE1016-8	PE1016 Series

Accessory Type	Feedthrough, Contact	Feedthrough, Contact
Body Finish	-	Gold
Body Material	Polytetrafluoroethylene (PTFE)	Beryllium Copper, Polytetrafluoroethylene (PTFE)
Center Contact Finish	Gold	Gold
Center Contact Material	Beryllium Copper	Beryllium Copper
Color	White	White, Gold
For Use With/Related Products	-	Field Replaceable Connectors

LAUNCH TAB&DIEL .012" (D) .250"L

Part	Center Contact Material	Color	For Use With/Related Products	Accessory Type	Center Contact Finish	Body Material	Body Finish
Pasternack PE1016-6	Beryllium Copper	White	Field Replaceable Connectors	Contact, Feedthrough	Gold
Pasternack PE1016-12	Beryllium Copper	White	Field Replaceable Connectors	Contact, Feedthrough	Gold
Pasternack PE1016-4	Beryllium Copper	Gold	Field Replaceable Connectors	Contact, Feedthrough	Gold	Beryllium Copper	Gold
Pasternack PE1016-5	Beryllium Copper	White	Field Replaceable Connectors	Contact, Feedthrough	Gold
Pasternack PE1016-8	Beryllium Copper	White		Contact, Feedthrough	Gold	Polytetrafluoroethylene (PTFE)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Connector Contact, Feedthrough For
