C90-3106F12S-3S

Active

Harwin Inc.

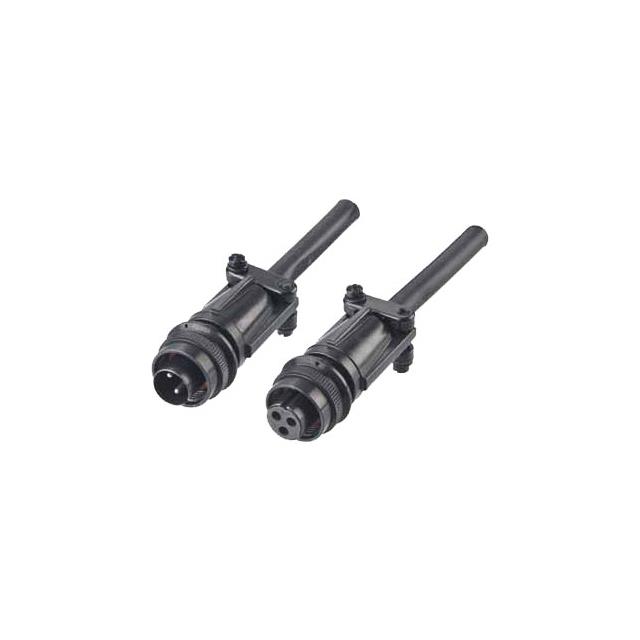

2 POS. CIRCULAR STRAIGHT PLUG CONN. SOCKET CONTACT ROHS COMPLIANT: YES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsC90 Circular Catalog Datasheet +1

C90-3106F12S-3S

Active

Harwin Inc.

2 POS. CIRCULAR STRAIGHT PLUG CONN. SOCKET CONTACT ROHS COMPLIANT: YES

Deep-Dive with AI

DocumentsC90 Circular Catalog Datasheet +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	C90-3106F12S-3S	C90-3106F Series

Applications	Industrial, Automotive	Industrial, Automotive
Backshell Material, Plating	Black Zinc Cobalt, Aluminum Alloy	Black Zinc Cobalt, Aluminum Alloy
Cable Opening	-	10.3 mm
Cable Opening	-	0.406 in
Cable Opening [diameter]	7.14 mm	7.14 mm
Cable Opening [diameter]	0.281 in	0.281 in
Color	Black	Black
Connector Type	Female Sockets, Plug	Female Sockets, Plug, Male Pins
Contact Finish - Mating	Silver	Silver
Contact Material	Copper Alloy	Copper Alloy
Current Rating (Amps)	13 A	13 A
Features	Cable Clamp, Coupling Nut, Backshell	Cable Clamp, Coupling Nut, Backshell
Ingress Protection	IP67 - Dust Tight, Waterproof	IP67 - Dust Tight, Waterproof
Insert Material	Synthetic Rubber	Synthetic Rubber
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Number of Positions	2	2 - 6
Operating Temperature [Max]	125 °C	125 °C
Operating Temperature [Min]	-55 °C	-55 °C
Orientation	Keyed	Keyed
Primary Material	Metal	Metal
Shell Finish	Black Zinc Cobalt Alloy	Black Zinc Cobalt Alloy
Shell Material	Aluminum Alloy	Aluminum Alloy
Shell Size - Insert	12S-3	14S-2, 14S-6, 10SL-3, 12S-3, 10SL-4
Shielding	Unshielded	Unshielded
Voltage Rating	700 VDC, 500 VAC	200 - 700 VDC

C90-3106F Series

CIRCULAR CONNECTOR, CABLE MOUNT PLUG, 4 CONTACTS, SOLDER SOCKET, ALUMINUM ALLOY BODY

Part	Insert Material	Connector Type	Contact Material	Shell Finish	Features	Shell Size - Insert	Mounting Type	Current Rating (Amps)	Applications	Backshell Material, Plating	Cable Opening [custom]	Cable Opening [custom]	Contact Finish - Mating	Shell Material	Color	Operating Temperature [Min]	Operating Temperature [Max]	Ingress Protection	Primary Material	Shielding	Voltage Rating	Number of Positions	Orientation	Cable Opening [diameter]	Cable Opening [diameter]
Harwin Inc. C90-3106F14S-2S	Synthetic Rubber	Female Sockets, Plug	Copper Alloy	Black Zinc Cobalt Alloy	Backshell, Cable Clamp, Coupling Nut	14S-2	Free Hanging (In-Line)	13 A	Automotive, Industrial	Aluminum Alloy, Black Zinc Cobalt	10.3 mm	0.406 in	Silver	Aluminum Alloy	Black	-55 °C	125 °C	IP67 - Dust Tight, Waterproof	Metal	Unshielded	200 VAC, 250 VDC	4	Keyed
Harwin Inc. C90-3106F14S-6S	Synthetic Rubber	Female Sockets, Plug	Copper Alloy	Black Zinc Cobalt Alloy	Backshell, Cable Clamp, Coupling Nut	14S-6	Free Hanging (In-Line)	13 A	Automotive, Industrial	Aluminum Alloy, Black Zinc Cobalt	10.3 mm	0.406 in	Silver	Aluminum Alloy	Black	-55 °C	125 °C	IP67 - Dust Tight, Waterproof	Metal	Unshielded	200 VAC, 250 VDC	6	Keyed
Harwin Inc. C90-3106F10SL-3P	Synthetic Rubber	Male Pins, Plug	Copper Alloy	Black Zinc Cobalt Alloy	Backshell, Cable Clamp, Coupling Nut	10SL-3	Free Hanging (In-Line)	13 A	Automotive, Industrial	Aluminum Alloy, Black Zinc Cobalt			Silver	Aluminum Alloy	Black	-55 °C	125 °C	IP67 - Dust Tight, Waterproof	Metal	Unshielded	500 VAC, 700 VDC	3	Keyed	7.14 mm	0.281 in
Harwin Inc. C90-3106F10SL-3S	Synthetic Rubber	Female Sockets, Plug	Copper Alloy	Black Zinc Cobalt Alloy	Backshell, Cable Clamp, Coupling Nut	10SL-3	Free Hanging (In-Line)	13 A	Automotive, Industrial	Aluminum Alloy, Black Zinc Cobalt			Silver	Aluminum Alloy	Black	-55 °C	125 °C	IP67 - Dust Tight, Waterproof	Metal	Unshielded	500 VAC, 700 VDC	3	Keyed	7.14 mm	0.281 in
Harwin Inc. C90-3106F14S-6P	Synthetic Rubber	Male Pins, Plug	Copper Alloy	Black Zinc Cobalt Alloy	Backshell, Cable Clamp, Coupling Nut	14S-6	Free Hanging (In-Line)	13 A	Automotive, Industrial	Aluminum Alloy, Black Zinc Cobalt	10.3 mm	0.406 in	Silver	Aluminum Alloy	Black	-55 °C	125 °C	IP67 - Dust Tight, Waterproof	Metal	Unshielded	200 VAC, 250 VDC	6	Keyed
Harwin Inc. C90-3106F14S-2P	Synthetic Rubber	Male Pins, Plug	Copper Alloy	Black Zinc Cobalt Alloy	Backshell, Cable Clamp, Coupling Nut	14S-2	Free Hanging (In-Line)	13 A	Automotive, Industrial	Aluminum Alloy, Black Zinc Cobalt	10.3 mm	0.406 in	Silver	Aluminum Alloy	Black	-55 °C	125 °C	IP67 - Dust Tight, Waterproof	Metal	Unshielded	200 VAC, 250 VDC	4	Keyed
Harwin Inc. C90-3106F12S-3P	Synthetic Rubber	Male Pins, Plug	Copper Alloy	Black Zinc Cobalt Alloy	Backshell, Cable Clamp, Coupling Nut	12S-3	Free Hanging (In-Line)	13 A	Automotive, Industrial	Aluminum Alloy, Black Zinc Cobalt			Silver	Aluminum Alloy	Black	-55 °C	125 °C	IP67 - Dust Tight, Waterproof	Metal	Unshielded	500 VAC, 700 VDC	2	Keyed	7.14 mm	0.281 in
Harwin Inc. C90-3106F10SL-4P	Synthetic Rubber	Male Pins, Plug	Copper Alloy	Black Zinc Cobalt Alloy	Backshell, Cable Clamp, Coupling Nut	10SL-4	Free Hanging (In-Line)	13 A	Automotive, Industrial	Aluminum Alloy, Black Zinc Cobalt			Silver	Aluminum Alloy	Black	-55 °C	125 °C	IP67 - Dust Tight, Waterproof	Metal	Unshielded	500 VAC, 700 VDC	2	Keyed	7.14 mm	0.281 in
Harwin Inc. C90-3106F12S-3S	Synthetic Rubber	Female Sockets, Plug	Copper Alloy	Black Zinc Cobalt Alloy	Backshell, Cable Clamp, Coupling Nut	12S-3	Free Hanging (In-Line)	13 A	Automotive, Industrial	Aluminum Alloy, Black Zinc Cobalt			Silver	Aluminum Alloy	Black	-55 °C	125 °C	IP67 - Dust Tight, Waterproof	Metal	Unshielded	500 VAC, 700 VDC	2	Keyed	7.14 mm	0.281 in
