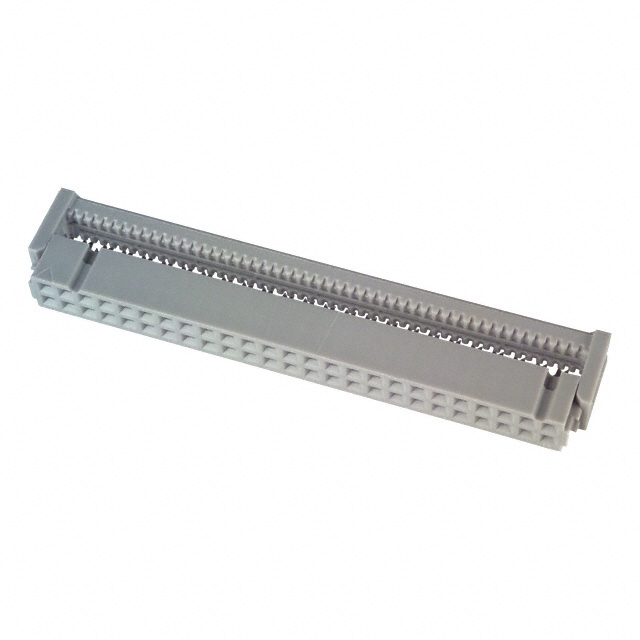

89150-0001 - 89150-0001

89150-0001

Active
3M (TC)

IDC CONNECTOR, IDC RECEPTACLE, FEMALE, 2.54 MM, 2 ROW, 50 CONTACTS, CABLE MOUNT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet891 Series Product Spec+3
89150-0001 - 89150-0001

89150-0001

Active
3M (TC)

IDC CONNECTOR, IDC RECEPTACLE, FEMALE, 2.54 MM, 2 ROW, 50 CONTACTS, CABLE MOUNT

Deep-Dive with AI

DocumentsDatasheet891 Series Product Spec+3

Technical Specifications

Parameters and characteristics for this part

Specification89150-0001
Cable TerminationIDC
ColorGray
Connector TypeReceptacle
Contact FinishGold
Contact Finish Thickness0.76 Ám
Contact Finish Thickness30 Áin
Contact TypeFemale Socket
FeaturesFeed Through
Mounting TypeFree Hanging (In-Line)
Number of Positions50
Number of Rows2
Pitch [x]2.54 mm
Pitch [x]0.1 in
Row Spacing2.54 mm
Row Spacing [x]0.1 in
Wire TypeRibbon Cable

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyBulk 1$ 3.26
10$ 2.49
25$ 2.24
50$ 2.07
100$ 1.92
250$ 1.74
500$ 1.62
1000$ 1.51
2500$ 1.38
NewarkEach 1$ 5.75
10$ 4.82
25$ 4.74

Description

General part information

89150 Series

The 891 series IDC Ribbon Cable Socket with phosphor bronze contacts and a glass-filled polybutylene terephthalate insulator. The double-recessed cover for cable terminating from either side virtually eliminating the need for single-recessed cover connectors.
