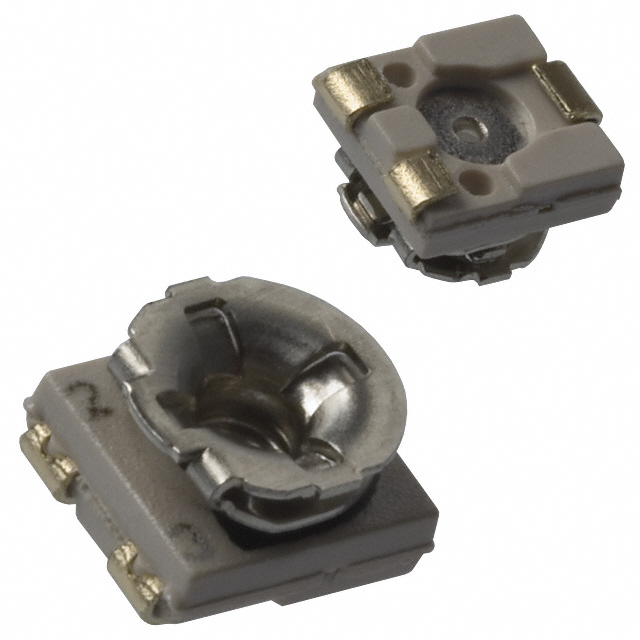

PVZ3A102A01R00

Obsolete

Bourns Inc.

TRIMMER 1K OHM 0.1W J LEAD TOP

Search across all available documentation for this part.

Obsolete

Bourns Inc.

TRIMMER 1K OHM 0.1W J LEAD TOP

Technical Specifications

Parameters and characteristics for this part

Part	Termination Style	Adjustment Type	Number of Turns	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Resistive Material	Temperature Coefficient	Mounting Type	Power (Watts)	Power (Watts)	Tolerance	Resistance
Bourns Inc. PVZ3A102A01R00	J Lead	Top Adjustment	1	3.1 mm	0.122 in	0.126 in	3.2 mm	Carbon	500 ppm/°C	Surface Mount	0.1 W	0.1 W	30 %	1000 Ohms
Bourns Inc. PVZ3A501C01B00	J Lead	Top Adjustment	1	3.1 mm	0.122 in	0.126 in	3.2 mm	Carbon	500 ppm/°C	Surface Mount	0.1 W	0.1 W	30 %	500 Ohms
Bourns Inc. PVZ3A302C01B00	J Lead	Top Adjustment	1	3.1 mm	0.122 in	0.126 in	3.2 mm	Carbon	500 ppm/°C	Surface Mount	0.1 W	0.1 W	30 %	3 kOhms
Bourns Inc. PVZ3A502C01B00	J Lead	Top Adjustment	1	3.1 mm	0.122 in	0.126 in	3.2 mm	Carbon	500 ppm/°C	Surface Mount	0.1 W	0.1 W	30 %	5 kOhms
Bourns Inc. PVZ3A304C01B00	J Lead	Top Adjustment	1	3.1 mm	0.122 in	0.126 in	3.2 mm	Carbon	500 ppm/°C	Surface Mount	0.1 W	0.1 W	30 %	300 kOhms
Bourns Inc. PVZ3A301C01B00	J Lead	Top Adjustment	1	3.1 mm	0.122 in	0.126 in	3.2 mm	Carbon	500 ppm/C	Surface Mount	0.1 W	0.1 W	30 %	300 Ohms

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

1 kOhms 0.1W, 1/10W J Lead Surface Mount Trimmer Potentiometer Carbon 1.0 Turn Top Adjustment

Technical documentation and resources
