3059Y-1-100LF
Potentiometers, Variable Resistors

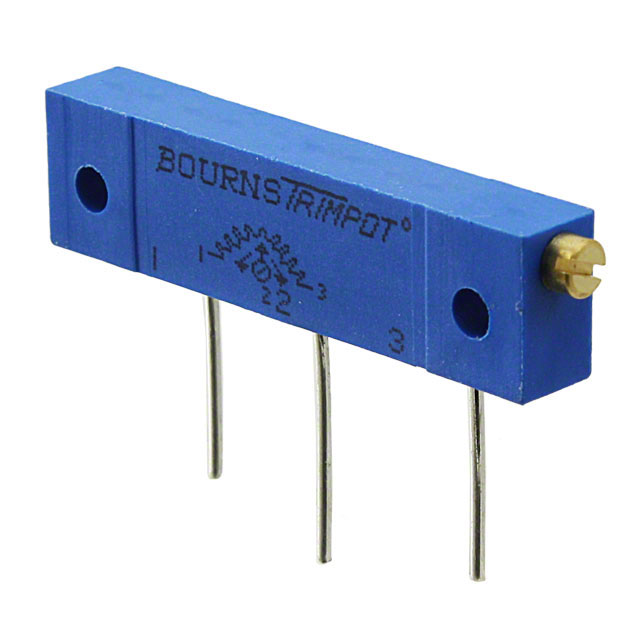

3059Y-1-202

Active
Bourns Inc.

TRIMMER RESISTORS - THROUGH HOLE 2KOHMS 10% 1-1/4" PC MOUNT

3059Y-1-100LF
Potentiometers, Variable Resistors

3059Y-1-202

Active
Bourns Inc.

TRIMMER RESISTORS - THROUGH HOLE 2KOHMS 10% 1-1/4" PC MOUNT

Technical Specifications

Parameters and characteristics for this part

Specification3059Y-1-202
Adjustment TypeSide Adjustment
Mounting TypeChassis Mount
Number of Turns22 turns
Power (Watts)1 W
Resistance2 kOhm
Resistive MaterialCermet
Size / Dimension Length0.315 in
Size / Dimension ShapeRectangular
Size / Dimension Width0.19 in
Temperature Coefficient100 ppm/°C
Termination StylePC Pins
Tolerance10 %

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$Updated
DigikeyTube 40$ 8.21<1d
MouserN/A 1$ 12.481w
10$ 10.00
20$ 9.15
100$ 7.41
260$ 7.03
500$ 6.85
1000$ 6.69

CAD

3D models and CAD resources for this part

Description

General part information

3059 Series

2 kOhms 1W PC Pins Chassis Mount Trimmer Potentiometer Cermet 22.0 Turn Side Adjustment

Documents

Technical documentation and resources

3059Y-1-202 | Datasheet
