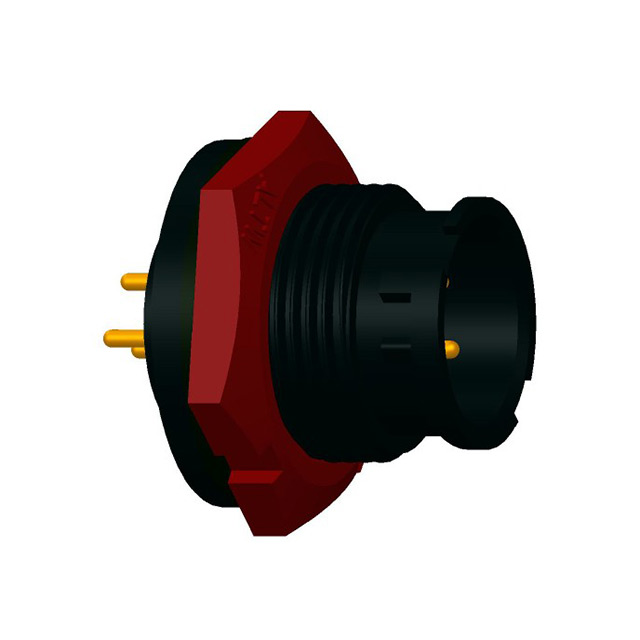

BD-03PMMP-LC7001

Active

Amphenol LTW

CONN RCPT MALE 3POS GOLD SOLDER

Search across all available documentation for this part.

Active

Amphenol LTW

CONN RCPT MALE 3POS GOLD SOLDER

Technical Specifications

Parameters and characteristics for this part

Specification	BD-03PMMP-LC7001

Color	Black
Connector Type	Receptacle, Male Pins
Contact Finish - Mating	Gold
Contact Material	Copper Alloy
Current Rating (Amps)	5 A
Fastening Type	Bayonet Lock
Ingress Protection	IP67 - Dust Tight, Waterproof
Insert Material	Polyamide (PA), Nylon, Glass Filled
Mounting Feature	Bulkhead - Front Side Nut
Mounting Type	Through Hole, Panel Mount
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Orientation	Keyed
Primary Material	Plastic
Shell Material	Nylon, Glass Filled, Polyamide (PA)
Shell Size - Insert	B
Shielding	Unshielded
Termination	Solder

Part	Ingress Protection	Orientation	Primary Material	Mounting Type	Fastening Type	Shell Size - Insert	Operating Temperature [Min]	Operating Temperature [Max]	Shell Material	Termination	Contact Finish - Mating	Shielding	Mounting Feature	Insert Material	Contact Material	Connector Type	Current Rating (Amps)	Color
Amphenol LTW BD-03PMMP-LC7001	IP67 - Dust Tight Waterproof	Keyed	Plastic	Panel Mount Through Hole	Bayonet Lock	B	-40 °C	105 ░C	Glass Filled Nylon Polyamide (PA)	Solder	Gold	Unshielded	Bulkhead - Front Side Nut	Polyamide (PA) Nylon Glass Filled	Copper Alloy	Male Pins Receptacle	5 A	Black

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

3 Position Circular Connector Receptacle, Male Pins Solder
