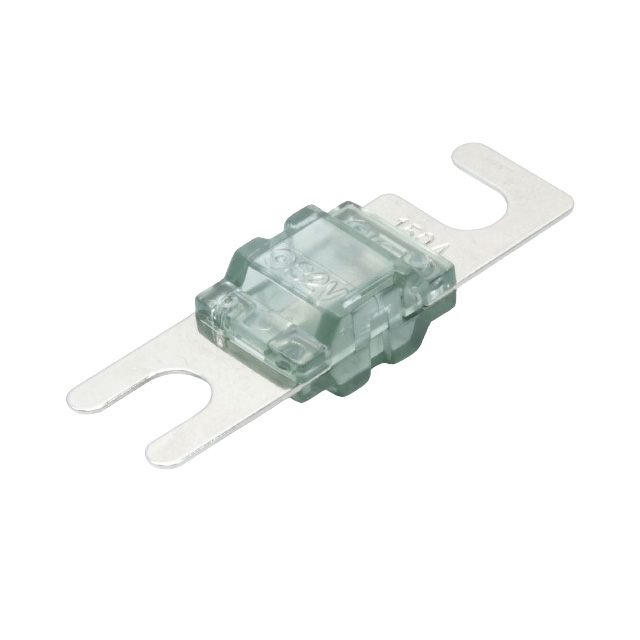

MID-150A
ActiveOptiFuse
FUSE AUTO 150A 32VDC AUTO LINK
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
MID-150A
ActiveOptiFuse
FUSE AUTO 150A 32VDC AUTO LINK
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | MID-150A |
|---|---|
| Breaking Capacity @ Rated Voltage | 1 kA |
| Color | Gray |
| Current Rating (Amps) | 150 A |
| DC Cold Resistance | 0.00033 Ohms |
| Fuse Type | Automotive |
| Mounting Type | Bolt Mount |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | Auto Link |
| Response Time | Fast Blow |
| Size / Dimension [x] | 0.63 " |
| Size / Dimension [x] | 16 mm |
| Size / Dimension [y] | 0.472 " |
| Size / Dimension [y] | 12 mm |
| Size / Dimension [z] | 0.323 " |
| Size / Dimension [z] | 8.2 mm |
| Voltage Rating - DC | 32 V |
MID Series
| Part | Operating Temperature [Max] | Operating Temperature [Min] | Package / Case | Current Rating (Amps) | Response Time | Fuse Type | Breaking Capacity @ Rated Voltage | Voltage Rating - DC | Mounting Type | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [x] | DC Cold Resistance | Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
OptiFuse | 125 °C | -40 °C | Auto Link | 30 A | Fast Blow | Automotive | 1 kA | 32 V | Bolt Mount | 0.472 " | 12 mm | 0.63 " | 0.323 " | 8.2 mm | 16 mm | ||
OptiFuse | 125 °C | -40 °C | Auto Link | 100 A | Fast Blow | Automotive | 1 kA | 32 V | Bolt Mount | 0.472 " | 12 mm | 0.63 " | 0.323 " | 8.2 mm | 16 mm | 0.00045 Ohms | Blue |
OptiFuse | 125 °C | -40 °C | Auto Link | 150 A | Fast Blow | Automotive | 1 kA | 32 V | Bolt Mount | 0.472 " | 12 mm | 0.63 " | 0.323 " | 8.2 mm | 16 mm | 0.00033 Ohms | Gray |
OptiFuse | 125 °C | -40 °C | Auto Link | 60 A | Fast Blow | Automotive | 1 kA | 32 V | Bolt Mount | 0.472 " | 12 mm | 0.63 " | 0.323 " | 8.2 mm | 16 mm | 0.00087 Ohms | Yellow |
OptiFuse | 125 °C | -40 °C | Auto Link | 200 A | Fast Blow | Automotive | 1 kA | 32 V | Bolt Mount | 0.472 " | 12 mm | 0.63 " | 0.323 " | 8.2 mm | 16 mm | Violet | |
OptiFuse | 125 °C | -40 °C | Auto Link | 50 A | Fast Blow | Automotive | 1 kA | 32 V | Bolt Mount | 0.472 " | 12 mm | 0.63 " | 0.323 " | 8.2 mm | 16 mm | 0.00104 Ohms | Red |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 3.29 | |
Description
General part information
MID Series
150 A AC 32 V DC Fuse Automotive Bolt Mount Auto Link
