SQT-115-03-S-Q

Active

Samtec Inc.

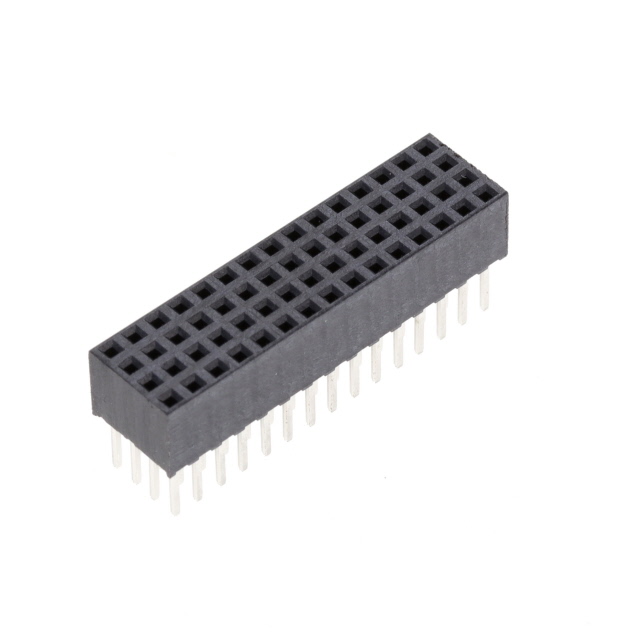

CONN RCPT 60POS 0.079 GOLD PCB

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

SQT-115-03-S-Q

Active

Samtec Inc.

CONN RCPT 60POS 0.079 GOLD PCB

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SQT-115-03-S-Q

Connector Type	Receptacle
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	30 Áin
Contact Finish Thickness - Mating	0.76 Ám
Contact Length - Post	5.28 mm
Contact Length - Post	0.208 in
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Forked
Current Rating (Amps)	5.1 A
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	6.35 mm
Insulation Height	0.25 in
Insulation Material	Liquid Crystal Polymer (LCP)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	60
Number of Positions Loaded	All
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating [x]	0.079 in
Pitch - Mating [x]	2 mm
Row Spacing - Mating	0.079 in
Row Spacing - Mating	2 mm
Style	Board to Board, Cable
Termination	Solder

SQT-115 Series

Part	Contact Finish - Mating	Contact Type	Connector Type	Number of Positions	Insulation Color	Operating Temperature [Min]	Operating Temperature [Max]	Contact Length - Post	Contact Length - Post	Number of Rows	Style	Contact Material	Current Rating (Amps)	Row Spacing - Mating	Row Spacing - Mating	Contact Finish - Post	Insulation Material	Material Flammability Rating	Termination	Number of Positions Loaded	Insulation Height	Insulation Height	Mounting Type	Fastening Type	Contact Shape	Pitch - Mating [x]	Pitch - Mating [x]	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Number of Positions Loaded	Contact Finish Thickness - Mating	Insulation Height [custom]	Insulation Height [custom]	Contact Finish Thickness - Post	Contact Finish Thickness - Post
Samtec Inc. SQT-115-01-L-D-001	Gold	Forked	Receptacle	30	Black	-55 °C	125 °C	0.09 "	2.29 mm	2	Board to Board Cable	Phosphor Bronze	5.1 A	0.079 in	2 mm	Tin	Liquid Crystal Polymer (LCP)	UL94 V-0	Solder	29	6.35 mm	0.25 in	Through Hole	Push-Pull	Square	0.079 in	2 mm	10 çin	0.25 çm
Samtec Inc. SQT-115-03-F-S	Gold	Forked	Receptacle	15	Black	-55 °C	125 °C	0.208 in	5.28 mm	1	Board to Board Cable	Phosphor Bronze	5.1 A			Tin	Liquid Crystal Polymer (LCP)	UL94 V-0	Solder		6.35 mm	0.25 in	Through Hole	Push-Pull	Square	0.079 in	2 mm			All	Flash
Samtec Inc. SQT-115-01-L-D-RA	Gold	Forked	Receptacle	30	Black	-55 °C	125 °C	0.09 "	2.29 mm	2	Board to Board Cable	Phosphor Bronze	5.1 A	0.079 in	2 mm	Tin	Liquid Crystal Polymer (LCP)	UL94 V-0	Solder				Through Hole Right Angle	Push-Pull	Square	0.079 in	2 mm	10 çin	0.25 çm	All		0.157 in	4 mm
Samtec Inc. SQT-115-01-F-6	Gold	Forked	Receptacle	90	Black	-55 °C	125 °C	0.09 "	2.29 mm	6	Board to Board Cable	Phosphor Bronze	5.1 A	0.079 in	2 mm	Tin	Liquid Crystal Polymer (LCP)	UL94 V-0	Solder		6.35 mm	0.25 in	Through Hole	Push-Pull	Square	0.079 in	2 mm			All	Flash
Samtec Inc. SQT-115-03-S-Q	Gold	Forked	Receptacle	60	Black	-55 °C	125 °C	0.208 in	5.28 mm		Board to Board Cable	Phosphor Bronze	5.1 A	0.079 in	2 mm	Tin	Liquid Crystal Polymer (LCP)	UL94 V-0	Solder		6.35 mm	0.25 in	Through Hole	Push-Pull	Square	0.079 in	2 mm	30 Áin	0.76 Ám	All
Samtec Inc. SQT-115-01-L-D-010	Gold	Forked	Receptacle	30	Black	-55 °C	125 °C	0.09 "	2.29 mm	2	Board to Board Cable	Phosphor Bronze	5.1 A	0.079 in	2 mm	Tin	Liquid Crystal Polymer (LCP)	UL94 V-0	Solder	29	6.35 mm	0.25 in	Through Hole	Push-Pull	Square	0.079 in	2 mm	10 çin	0.25 çm
Samtec Inc. SQT-115-02-L-S-004	Gold	Forked	Receptacle	15	Black	-55 °C	125 °C	0.6 in	15.24 mm	1	Board to Board Cable	Phosphor Bronze	5.1 A			Tin	Liquid Crystal Polymer (LCP)	UL94 V-0	Solder	14	6.35 mm	0.25 in	Through Hole	Push-Pull	Square	0.079 in	2 mm	10 çin	0.25 çm
Samtec Inc. SQT-115-01-L-Q-060	Gold	Forked	Receptacle	60	Black	-55 °C	125 °C	0.09 "	2.29 mm		Board to Board Cable	Phosphor Bronze	5.1 A	0.079 in	2 mm	Tin	Liquid Crystal Polymer (LCP)	UL94 V-0	Solder	59	6.35 mm	0.25 in	Through Hole	Push-Pull	Square	0.079 in	2 mm	10 çin	0.25 çm
Samtec Inc. SQT-115-02-LM-D	Gold	Forked	Receptacle	30	Black	-55 °C	125 °C	0.6 in	15.24 mm	2	Board to Board Cable	Phosphor Bronze	5.1 A	0.079 in	2 mm	Tin	Liquid Crystal Polymer (LCP)	UL94 V-0	Solder		6.35 mm	0.25 in	Through Hole	Push-Pull	Square	0.079 in	2 mm	10 çin	0.25 çm	All
Samtec Inc. SQT-115-03-G-D	Gold	Forked	Receptacle	30	Black	-55 °C	125 °C	0.208 in	5.28 mm	2	Board to Board Cable	Phosphor Bronze	5.1 A	0.079 in	2 mm	Gold	Liquid Crystal Polymer (LCP)	UL94 V-0	Solder		6.35 mm	0.25 in	Through Hole	Push-Pull	Square	0.079 in	2 mm	20 µin	0.51 µm	All				3 µin	0.076 µm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 15.02
		10	$ 14.22
		25	$ 13.69
		50	$ 13.36
		100	$ 12.45

Description

General part information

SQT-115 Series

60 Position Receptacle Connector 0.079" (2.00mm) Through Hole Gold
