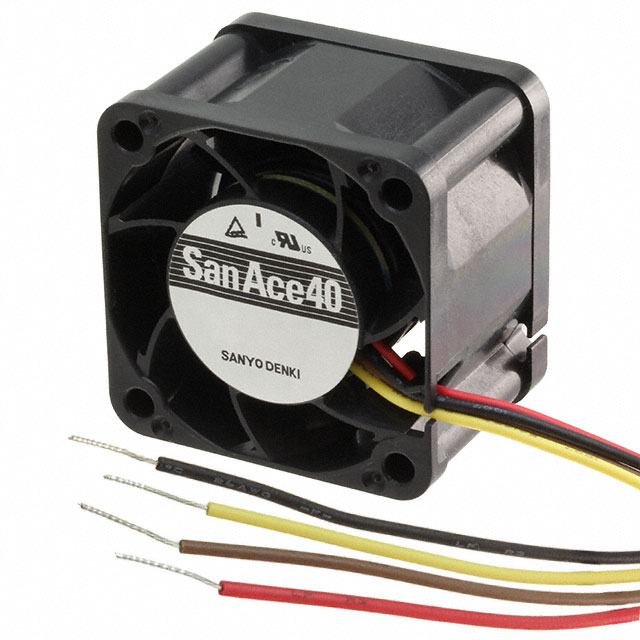

Specification	9GA0412P6F001

Air Flow	7.4 CFM
Approval Agency	CSA, TUV, UL
Bearing Type	Ball
Current Rating	0.08 A
Fan Type	Tubeaxial
Features	PWM Control, Locked Rotor Protection, Speed Sensor (Tach)
Lifetime	60000 Hrs
Material - Blade	Plastic
Material - Frame	Plastic
Noise	28 dB
Operating Temperature (Max)	158 °F
Operating Temperature (Min)	-4 °F
Power (Watts)	960 mW
RPM	8000 RPM
Size / Dimension Height	40 mm
Size / Dimension Length	40 mm
Size / Dimension Shape	Square
Static Pressure	0.319 in H2O
Termination	4 Wire Leads
Termination Leads Count	4 leads
Termination Type	Wire Leads
Voltage - Rated	12 VAC
Voltage Range (Max)	13.8 VDC
Voltage Range (Min)	10.2 VDC
Weight	0.077 lb
Width	20 mm

9GA0412 Series

DC Fans DC Axial Fan, 80x80x32mm, 24VDC, Low Power

Part	Bearing Type	Air Flow	Voltage - Rated	Static Pressure	Noise	Width	Weight	RPM	Operating Temperature (Min)	Operating Temperature (Max)	Power (Watts)	Fan Type	Size / Dimension Length	Size / Dimension Shape	Size / Dimension Height	Features	Termination Leads Count	Termination Type	Termination	Approval Agency	Lifetime	Material - Frame	Current Rating	Material - Blade	Voltage Range (Max)	Voltage Range (Min)	Lifetime
Sanyo Denki America Inc. 9GA0412G7D001	Ball	12.7 CFM	12 VAC	0.77 in H2O	42 dB	15 mm	0.062 lb	13100 RPM	-4 °F	158 °F	2.04 W	Tubeaxial	40 mm	Square	40 mm	Locked Rotor Sensor	3	Wire Leads	3 Wire Leads	CSA TUV UL	Varies Based on Temperature	Plastic	0.17 A	Plastic	13.8 VDC	7 V
Sanyo Denki America Inc. 9GA0412J3011	Ball	23.7 CFM	12 VAC	2.15 in H2O	54 dB	28 mm	0.117 lb	18000 RPM	-4 °F	158 °F	5.88 W	Tubeaxial	40 mm	Square	40 mm	Locked Rotor Protection Speed Sensor (Tach)	3	Wire Leads	3 Wire Leads	CSA TUV UL		Plastic	490 mA	Plastic	13.2 VDC	10.8 VDC	40000 Hrs
Sanyo Denki America Inc. 9GA0412P3M01	Ball	16.2 CFM	12 VAC	1.04 in H2O	47 dB	28 mm	0.117 lb	12500 RPM	-4 °F	158 °F	2.52 w	Tubeaxial	40 mm	Square	40 mm	Locked Rotor Protection PWM Control Speed Sensor (Tach)	4 leads	Wire Leads	4 Wire Leads	CSA TUV UL		Plastic	0.21 A	Plastic	13.2 VDC	10.8 VDC	40000 Hrs
Sanyo Denki America Inc. 9GA0412G301	Ball	21.5 CFM	12 VAC	1.81 in H2O	53 dB	28 mm	0.117 lb	16500 RPM	-4 °F	158 °F	4.68 W	Tubeaxial	40 mm	Square	40 mm	Locked Rotor Protection Speed Sensor (Tach)	3	Wire Leads	3 Wire Leads	CSA TUV UL		Plastic	390 mA	Plastic	13.2 VDC	10.8 VDC	40000 Hrs
Sanyo Denki America Inc. 9GA0412H302	Ball	19.1 CFM	12 VAC	1.39 in H2O	50 dB	28 mm	0.117 lb	14500 RPM	-4 °F	158 °F	3.36 W	Tubeaxial	40 mm	Square	40 mm	Locked Rotor Protection	2 leads	Wire Leads	2 Wire Leads	CSA TUV UL		Plastic	0.28 A	Plastic	13.2 VDC	10.8 VDC	40000 Hrs
Sanyo Denki America Inc. 9GA0412P3G011	Ball	21.5 CFM	12 VAC	1.81 in H2O	53 dB	28 mm	0.117 lb	16500 RPM	-4 °F	158 °F	4.68 W	Tubeaxial	40 mm	Square	40 mm	Locked Rotor Protection PWM Control Speed Sensor (Tach)	4 leads	Wire Leads	4 Wire Leads	CSA TUV UL		Plastic	390 mA	Plastic	13.2 VDC	10.8 VDC	40000 Hrs
Sanyo Denki America Inc. 9GA0412H3D011	Ball	19.1 CFM	12 VAC	1.39 in H2O	50 dB	28 mm	0.117 lb	14500 RPM	-4 °F	158 °F	3.36 W	Tubeaxial	40 mm	Square	40 mm	Locked Rotor Sensor	3	Wire Leads	3 Wire Leads	CSA TUV UL		Plastic	0.28 A	Plastic	13.2 VDC	10.8 VDC	40000 Hrs
Sanyo Denki America Inc. 9GA0412P6F001	Ball	7.4 CFM	12 VAC	0.319 in H2O	28 dB	20 mm	0.077 lb	8000 RPM	-4 °F	158 °F	960 mW	Tubeaxial	40 mm	Square	40 mm	Locked Rotor Protection PWM Control Speed Sensor (Tach)	4 leads	Wire Leads	4 Wire Leads	CSA TUV UL		Plastic	0.08 A	Plastic	13.8 VDC	10.2 VDC	60000 Hrs
Sanyo Denki America Inc. 9GA0412P3K011	Ball	28.6 CFM	12 VAC	3.21 in H2O	61 dB	28 mm	0.117 lb	22000 RPM	-4 °F	158 °F	11.04 W	Tubeaxial	40 mm	Square	40 mm	Locked Rotor Protection PWM Control Speed Sensor (Tach)	4 leads	Wire Leads	4 Wire Leads	CSA TUV UL		Plastic	0.92 A	Plastic	13.2 VDC	10.8 VDC	40000 Hrs
Sanyo Denki America Inc. 9GA0412P6G023	Ball		12 VAC		47 dB	20 mm	0.078 lb	16000 RPM	-4 °F	158 °F		Tubeaxial	40 mm	Square	40 mm	Locked Rotor Protection PWM Control Speed Sensor (Tach)	4 leads	Position Rectangular Connector	4 Position Rectangular Connector			Plastic	0.23 A	Plastic	13.8 VDC	10.2 VDC
