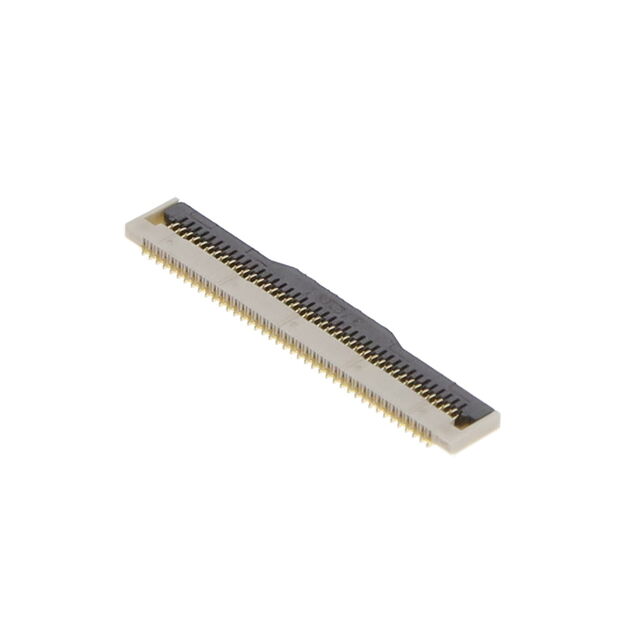

FF0881SA1-R3000

Active

JAE Electronics

CONN FPC BOTTOM 81POS 0.2MM R/A

Search across all available documentation for this part.

Active

JAE Electronics

CONN FPC BOTTOM 81POS 0.2MM R/A

Technical Specifications

Parameters and characteristics for this part

Specification	FF0881SA1-R3000

Actuator Color	Black
Actuator Material	Plastic
Cable End Type	Tabbed
Connector/Contact Type	Contacts, Bottom
Contact Finish	Gold
Contact Material	Copper Alloy
Current Rating (Amps)	0.3 A
FFC, FCB Thickness	0.15 mm
Flat Flex Type	FPC
Height Above Board [z]	1 mm
Height Above Board [z]	0.039 in
Housing Color	Beige
Housing Material	Plastic
Locking Feature	Flip Lock
Material Flammability Rating	UL94 V-0
Mating Cycles	20
Mounting Type	Surface Mount, Right Angle
Number of Positions	81
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Pitch [x]	0.2 mm
Pitch [x]	0.008 in
Termination	Solder
Voltage Rating	50 V

Part	Cable End Type	Housing Color	Current Rating (Amps)	Height Above Board [z]	Height Above Board [z]	FFC, FCB Thickness	Contact Material	Locking Feature	Mounting Type	Material Flammability Rating	Mating Cycles	Number of Positions	Termination	Actuator Color	Contact Finish	Connector/Contact Type	Operating Temperature [Max]	Operating Temperature [Min]	Actuator Material	Housing Material	Voltage Rating	Flat Flex Type	Pitch [x]	Pitch [x]
JAE Electronics FF0881SA1-R3000	Tabbed	Beige	0.3 A	1 mm	0.039 in	0.15 mm	Copper Alloy	Flip Lock	Surface Mount Right Angle	UL94 V-0	20	81	Solder	Black	Gold	Contacts Bottom	85 °C	-40 °C	Plastic	Plastic	50 V	FPC	0.2 mm	0.008 in
JAE Electronics FF0881SA1	Tabbed	Beige	0.3 A	1 mm	0.039 in	0.15 mm	Copper Alloy	Flip Lock	Surface Mount Right Angle	UL94 V-0	20	81	Solder	Black	Gold	Contacts Bottom	85 °C	-40 °C	Plastic	Plastic	50 V	FPC	0.2 mm	0.008 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

81 Position FPC Connector Contacts, Bottom 0.008" (0.20mm) Surface Mount, Right Angle
