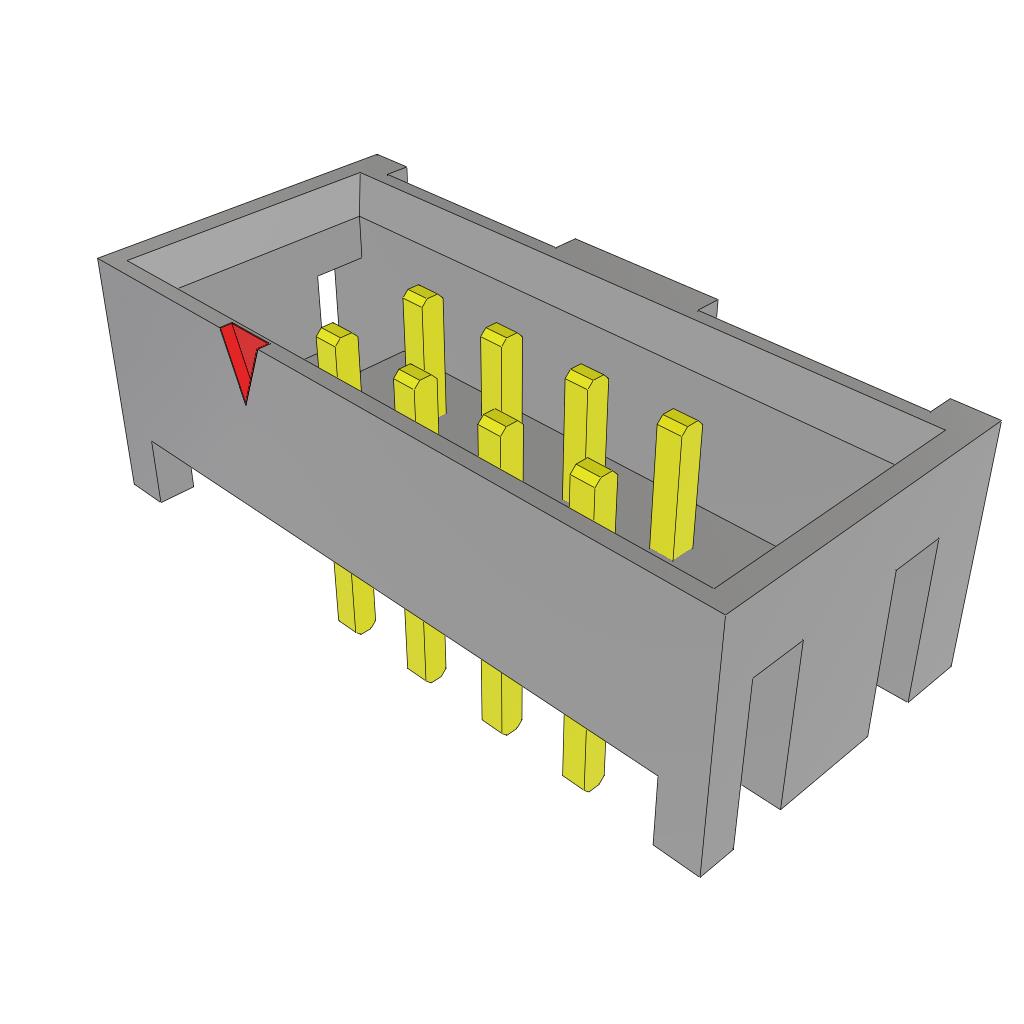

STMM-104-01-G-D - STMM-104-01-G-D

STMM-104-01-G-D

Active
Samtec Inc.

CONN HEADER VERT 8POS 2MM

Deep-Dive with AI

Search across all available documentation for this part.

Documents2.00 mm Shrouded Terminal StripDatasheet+3
STMM-104-01-G-D - STMM-104-01-G-D

STMM-104-01-G-D

Active
Samtec Inc.

CONN HEADER VERT 8POS 2MM

Deep-Dive with AI

Documents2.00 mm Shrouded Terminal StripDatasheet+3

Technical Specifications

Parameters and characteristics for this part

SpecificationSTMM-104-01-G-D
Connector TypeHeader
Contact Finish - MatingGold
Contact Finish - PostGold
Contact Finish Thickness - Mating0.51 µm
Contact Finish Thickness - Mating20 µin
Contact Finish Thickness - Post3 µin
Contact Finish Thickness - Post0.076 µm
Contact Length - Mating0.1 in
Contact Length - Mating2.54 mm
Contact Length - Post2.34 mm
Contact Length - Post0.092 in
Contact MaterialPhosphor Bronze
Contact ShapeSquare
Contact TypeMale Pin
Current Rating (Amps)3 A
Fastening TypePush-Pull
FeaturesKeying Slot
Insulation ColorBlack
Insulation Height4.83 mm
Insulation Height0.19 in
Insulation MaterialLiquid Crystal Polymer (LCP)
Mounting TypeThrough Hole
Number of Positions8
Number of Positions LoadedAll
Number of Rows2
Operating Temperature [Max]125 °C
Operating Temperature [Min]-55 °C
Overall Contact Length6.48 mm
Overall Contact Length0.255 in
Pitch - Mating [x]0.079 in
Pitch - Mating [x]2 mm
Row Spacing - Mating0.079 in
Row Spacing - Mating2 mm
ShroudingShrouded - 4 Wall
StyleBoard to Cable/Wire
TerminationSolder

STMM-104 Series

PartMounting TypeContact Finish Thickness - MatingContact Finish Thickness - MatingPitch - Mating [x]Pitch - Mating [x]Number of Positions LoadedConnector TypeFeaturesShroudingCurrent Rating (Amps)Contact Finish - MatingContact TypeOperating Temperature [Min]Operating Temperature [Max]Number of RowsContact Finish - PostInsulation MaterialContact MaterialFastening TypeNumber of PositionsStyleInsulation ColorContact ShapeInsulation HeightInsulation HeightContact Length - MatingContact Length - MatingRow Spacing - MatingRow Spacing - MatingTerminationContact Finish Thickness - PostContact Finish Thickness - PostContact Length - PostContact Length - PostOverall Contact LengthOverall Contact Length
Samtec Inc.
STMM-104-02-F-D-SM-TR
Surface Mount
3 µin
0.076 µm
0.079 in
2 mm
All
Header
Keying Slot
Shrouded - 4 Wall
3 A
Gold
Male Pin
-55 °C
125 °C
2
Tin
Liquid Crystal Polymer (LCP)
Phosphor Bronze
Push-Pull
8
Board to Cable/Wire
Black
Square
4.83 mm
0.19 in
3.05 mm
0.12 in
0.079 in
2 mm
Solder
Samtec Inc.
STMM-104-01-G-D-SM-LC
Surface Mount
20 µin
0.51 µm
0.079 in
2 mm
All
Header
Board Lock
Keying Slot
Shrouded - 4 Wall
3 A
Gold
Male Pin
-55 °C
125 °C
2
Gold
Liquid Crystal Polymer (LCP)
Phosphor Bronze
Push-Pull
8
Board to Cable/Wire
Black
Square
4.83 mm
0.19 in
2.54 mm
0.1 in
0.079 in
2 mm
Solder
3 µin
0.076 µm
Samtec Inc.
STMM-104-02-SM-D-SM
Surface Mount
30 Áin
0.76 Ám
0.079 in
2 mm
All
Header
Keying Slot
Shrouded - 4 Wall
3 A
Gold
Male Pin
-55 °C
125 °C
2
Tin
Liquid Crystal Polymer (LCP)
Phosphor Bronze
Push-Pull
8
Board to Cable/Wire
Black
Square
4.83 mm
0.19 in
3.05 mm
0.12 in
0.079 in
2 mm
Solder
Samtec Inc.
STMM-104-02-S-D-SM-LC-TR
Surface Mount
30 Áin
0.76 Ám
0.079 in
2 mm
All
Header
Board Lock
Keying Slot
Shrouded - 4 Wall
3 A
Gold
Male Pin
-55 °C
125 °C
2
Tin
Liquid Crystal Polymer (LCP)
Phosphor Bronze
Push-Pull
8
Board to Cable/Wire
Black
Square
4.83 mm
0.19 in
3.05 mm
0.12 in
0.079 in
2 mm
Solder
Samtec Inc.
STMM-104-02-H-D
Through Hole
30 Áin
0.76 Ám
0.079 in
2 mm
All
Header
Keying Slot
Shrouded - 4 Wall
3 A
Gold
Male Pin
-55 °C
125 °C
2
Gold
Liquid Crystal Polymer (LCP)
Phosphor Bronze
Push-Pull
8
Board to Cable/Wire
Black
Square
4.83 mm
0.19 in
3.05 mm
0.12 in
0.079 in
2 mm
Solder
3 µin
0.076 µm
0.118 in
3 mm
0.302 in
7.67 mm
Samtec Inc.
STMM-104-02-T-D-SM-K-TR
Surface Mount
0.079 in
2 mm
All
Header
Keying Slot
Pick and Place
Shrouded - 4 Wall
3 A
Male Pin
-55 °C
105 ░C
2
Tin
Liquid Crystal Polymer (LCP)
Phosphor Bronze
Push-Pull
8
Board to Cable/Wire
Black
Square
4.83 mm
0.19 in
3.05 mm
0.12 in
0.079 in
2 mm
Solder
Samtec Inc.
STMM-104-02-S-D
Through Hole
30 Áin
0.76 Ám
0.079 in
2 mm
All
Header
Keying Slot
Shrouded - 4 Wall
3 A
Gold
Male Pin
-55 °C
125 °C
2
Tin
Liquid Crystal Polymer (LCP)
Phosphor Bronze
Push-Pull
8
Board to Cable/Wire
Black
Square
4.83 mm
0.19 in
3.05 mm
0.12 in
0.079 in
2 mm
Solder
0.118 in
3 mm
0.302 in
7.67 mm
Samtec Inc.
STMM-104-01-L-D-RA
Through Hole
Right Angle
10 çin
0.25 çm
0.079 in
2 mm
All
Header
Keying Slot
Shrouded - 4 Wall
3 A
Gold
Male Pin
-55 °C
125 °C
2
Tin
Liquid Crystal Polymer (LCP)
Phosphor Bronze
Push-Pull
8
Board to Cable/Wire
Black
Square
6 mm
0.236 in
2.54 mm
0.1 in
0.079 in
2 mm
Solder
0.09 "
2.29 mm
Samtec Inc.
STMM-104-01-G-D-SM-LC-K
Surface Mount
20 µin
0.51 µm
0.079 in
2 mm
All
Header
Board Lock
Keying Slot
Pick and Place
Shrouded - 4 Wall
3 A
Gold
Male Pin
-55 °C
125 °C
2
Gold
Liquid Crystal Polymer (LCP)
Phosphor Bronze
Push-Pull
8
Board to Cable/Wire
Black
Square
4.83 mm
0.19 in
2.54 mm
0.1 in
0.079 in
2 mm
Solder
3 µin
0.076 µm
Samtec Inc.
STMM-104-01-G-D
Through Hole
20 µin
0.51 µm
0.079 in
2 mm
All
Header
Keying Slot
Shrouded - 4 Wall
3 A
Gold
Male Pin
-55 °C
125 °C
2
Gold
Liquid Crystal Polymer (LCP)
Phosphor Bronze
Push-Pull
8
Board to Cable/Wire
Black
Square
4.83 mm
0.19 in
2.54 mm
0.1 in
0.079 in
2 mm
Solder
3 µin
0.076 µm
0.092 in
2.34 mm
0.255 in
6.48 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyTube 1$ 4.19
25$ 3.79
50$ 3.52
100$ 3.35
500$ 3.13

Description

General part information

STMM-104 Series

Connector Header Through Hole 8 position 0.079" (2.00mm)
