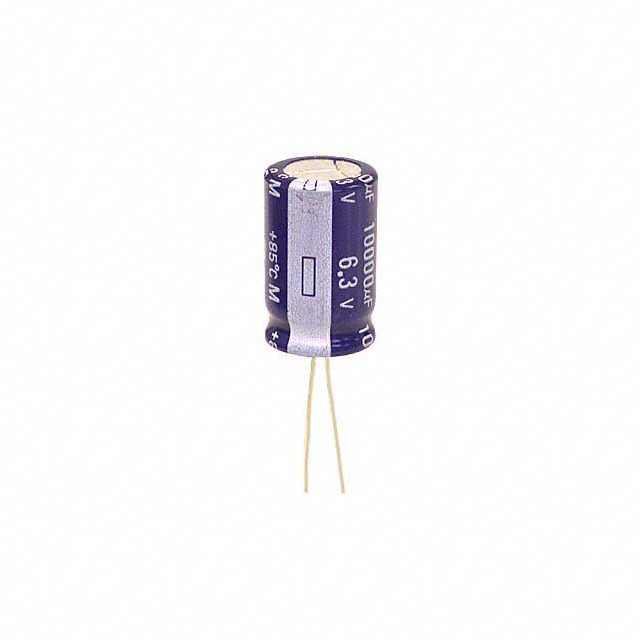

ECA-0JM103

Active

Panasonic Industrial Automation Sales

CAP ALUM 10000UF 20% 6.3V RADIAL

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

ECA-0JM103

Active

Panasonic Industrial Automation Sales

CAP ALUM 10000UF 20% 6.3V RADIAL

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	ECA-0JM103

Applications	General Purpose
Capacitance	10000 µF
Height - Seated (Max) [Max] [z]	1.063 in
Height - Seated (Max) [Max] [z]	27 mm
Lead Spacing	7.5 mm
Lead Spacing	0.295 in
Lifetime @ Temp.	2000 Hrs
Mounting Type	Through Hole
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Package / Case	Radial, Can
Polarization	Polar
Ripple Current @ High Frequency	2.465 A
Ripple Current @ Low Frequency	1.45 A
Size / Dimension [diameter]	0.63 in
Size / Dimension [diameter]	16 mm
Tolerance	20 %
Voltage - Rated	6.3 V

ECA-0JM Series

Part	Ripple Current @ Low Frequency	Polarization	Mounting Type	Applications	Lead Spacing	Lead Spacing	Capacitance	Voltage - Rated	Tolerance	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Ripple Current @ High Frequency	Lifetime @ Temp.	Size / Dimension [diameter]	Size / Dimension [diameter]	Package / Case	Operating Temperature [Max]	Operating Temperature [Min]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]
Panasonic Industrial Automation Sales ECA-0JM103B	1.45 A	Polar	Through Hole	General Purpose	7.5 mm	0.295 in	10000 µF	6.3 V	20 %	1.063 in	27 mm	2.465 A	2000 Hrs	0.63 in	16 mm	Radial Can	85 °C	-40 °C
Panasonic Industrial Automation Sales ECA-0JM223	1.9 A	Polar	Through Hole	General Purpose	7.5 mm	0.295 in	22000 µF	6.3 V	20 %	1.476 in	37.5 mm	3.23 A	2000 Hrs	0.709 "	18 mm	Radial Can	85 °C	-40 °C
Panasonic Industrial Automation Sales ECA-0JM103	1.45 A	Polar	Through Hole	General Purpose	7.5 mm	0.295 in	10000 µF	6.3 V	20 %	1.063 in	27 mm	2.465 A	2000 Hrs	0.63 in	16 mm	Radial Can	85 °C	-40 °C
Panasonic Industrial Automation Sales ECA-0JM153	1.7 A	Polar	Through Hole	General Purpose	7.5 mm	0.295 in		6.3 V	20 %			2.89 A	2000 Hrs	0.63 in	16 mm	Radial Can	85 °C	-40 °C
Panasonic Industrial Automation Sales ECA-0JM472B	1.17 A	Polar	Through Hole	General Purpose	5 mm	0.197 in	4700 µF	6.3 V	20 %	0.866 in	22 mm	1.989 A	2000 Hrs	0.492 in	12.5 mm	Radial Can	85 °C	-40 °C
Panasonic Industrial Automation Sales ECA-0JM472	1.17 A	Polar	Through Hole	General Purpose	5 mm	0.197 in	4700 µF	6.3 V	20 %	0.866 in	22 mm	1.989 A	2000 Hrs	0.492 in	12.5 mm	Radial Can	85 °C	-40 °C
Panasonic Industrial Automation Sales ECA-0JM222	890 mA	Polar	Through Hole	General Purpose	5 mm	0.197 in	2200 µF	6.3 V	20 %	0.669 in	17 mm		2000 Hrs	0.394 in	10 mm	Radial Can	85 °C	-40 °C
Panasonic Industrial Automation Sales ECA-0JM102BJ	580 mA	Polar	Through Hole	General Purpose	3.5 mm	0.138 in	1000 µF	6.3 V	20 %			986 mA	2000 Hrs	0.315 "	8 mm	Radial Can	85 °C	-40 °C	0.492 in	12.5 mm
Panasonic Industrial Automation Sales ECA-0JM471B	380 mA	Polar	Through Hole	General Purpose	5 mm	0.197 in	470 µF	6.3 V	20 %	0.48 "	12.2 mm	646 mA	2000 Hrs	0.248 in	6.3 mm	Radial Can	85 °C	-40 °C
Panasonic Industrial Automation Sales ECA-0JM471I	380 mA	Polar	Through Hole	General Purpose	2.5 mm	0.098 in	470 µF	6.3 V	20 %	0.48 "	12.2 mm	646 mA	2000 Hrs	0.248 in	6.3 mm	Radial Can	85 °C	-40 °C

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 1.41
		10	$ 0.88
		50	$ 0.67
		100	$ 0.60
		500	$ 0.49
		1000	$ 0.46
		2500	$ 0.42
		5000	$ 0.40

Description

General part information

ECA-0JM Series

10000 µF 6.3 V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C
