LTS-360HR

Active

Diodes Inc

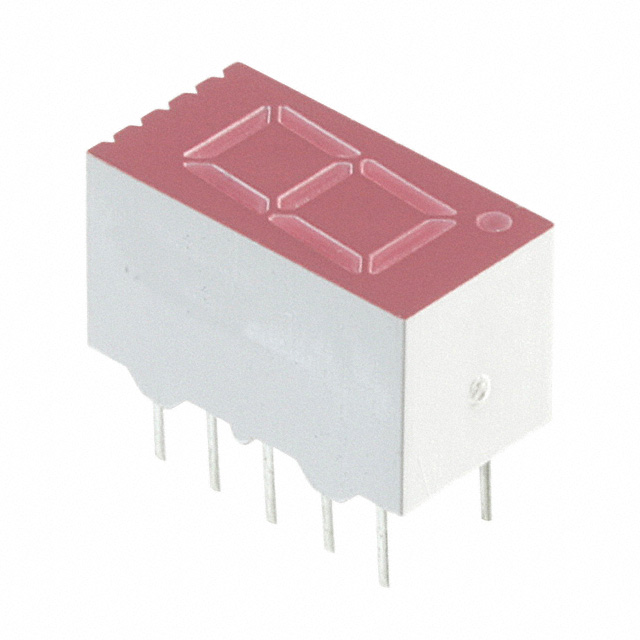

DISPLAY 7SEG 0.36" SGL RED 10DIP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

LTS-360HR

Active

Diodes Inc

DISPLAY 7SEG 0.36" SGL RED 10DIP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	LTS-360HR

Color	Red
Common Pin	Common Anode
Current - Test	20 mA
Digit/Alpha Size	0.36 in
Digit/Alpha Size	9.14 mm
Display Type	7-Segment
Millicandela Rating	2 mcd
Number of Characters [custom]	1
Package / Case	10-DIP
Package / Case	0.2 in
Package / Case	0.2 in
Power Dissipation (Max) [Max]	75 mw
Size / Dimension [x]	0.332 in
Size / Dimension [x]	8.44 mm
Size / Dimension [y]	7.4 mm
Size / Dimension [y]	0.291 "
Size / Dimension [z]	14 mm
Size / Dimension [z]	0.551 "
Voltage - Forward (Vf) (Typ)	2 V
Wavelength - Peak	635 nm

LTS-360 Series

Part	Millicandela Rating	Current - Test	Color	Wavelength - Peak	Power Dissipation (Max) [Max]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Number of Characters [custom]	Package / Case	Package / Case	Package / Case	Voltage - Forward (Vf) (Typ)	Common Pin	Display Type	Digit/Alpha Size	Digit/Alpha Size
Diodes Inc LTS-360HR	2 mcd	20 mA	Red	635 nm	75 mw	7.4 mm	14 mm	0.332 in	0.291 "	0.551 "	8.44 mm	1	10-DIP	0.2 in	0.2 in	2 V	Common Anode	7-Segment	0.36 in	9.14 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1050	$ 0.53

Description

General part information

LTS-360 Series

Display Modules - LED Character and Numeric Red 7-Segment 1 Character Common Anode 2V 20mA 0.551" H x 0.291" W x 0.332" D (14.00mm x 7.40mm x 8.44mm) 10-DIP (0.200", 5.08mm)
