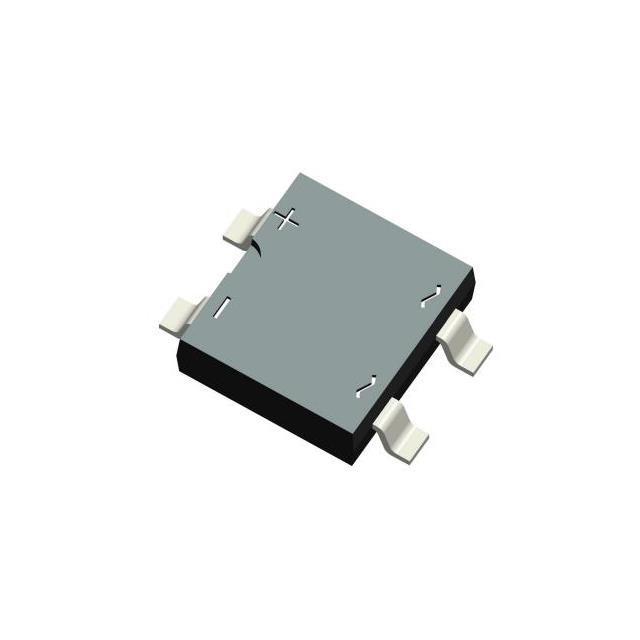

KMB120F

Active

SMC Diode Solutions

DIODE SCHOTTKY 1A 200V MBS

Search across all available documentation for this part.

Active

SMC Diode Solutions

DIODE SCHOTTKY 1A 200V MBS

Technical Specifications

Parameters and characteristics for this part

Specification	KMB120F

Current - Average Rectified (Io)	1 A
Current - Reverse Leakage @ Vr	50 µA
Diode Type	Single Phase
Mounting Type	Surface Mount
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-55 °C
Package / Case	4-SMD, Gull Wing
Supplier Device Package	MBF
Technology	Schottky
Voltage - Forward (Vf) (Max) @ If [Max]	900 mV
Voltage - Peak Reverse (Max) [Max]	200 V

Part	Package / Case	Current - Reverse Leakage @ Vr	Voltage - Forward (Vf) (Max) @ If [Max]	Mounting Type	Current - Average Rectified (Io)	Voltage - Peak Reverse (Max) [Max]	Supplier Device Package	Technology	Diode Type	Operating Temperature [Min]	Operating Temperature [Max]
SMC Diode Solutions KMB120F	4-SMD Gull Wing	50 µA	900 mV	Surface Mount	1 A	200 V	MBF	Schottky	Single Phase	-55 °C	150 °C
SMC Diode Solutions KMB120S	4-SMD Gull Wing	50 µA	900 mV	Surface Mount	1 A	200 V	MBS	Schottky	Single Phase	-55 °C	150 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Bridge Rectifier Single Phase Schottky 200 V Surface Mount MBF
