HDT-7000-48"-BLACK-5 PCS

Active

HEATSHRINK 7" BLACK 1=1PC

Search across all available documentation for this part.

Active

HEATSHRINK 7" BLACK 1=1PC

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	HDT-7000-48"-BLACK-5 PCS	HDT Series

Color	Black	Black, Red
Features	-	Chemical Resistant, Flame Retardant, Abrasion Resistant
Inner Diameter - Recovered [diameter]	2 in	0.1 - 2 in
Inner Diameter - Recovered [diameter]	50.8 mm	2.54 - 50.8 mm
Inner Diameter - Supplied [diameter]	177.8 mm	7.62 - 177.8 mm
Inner Diameter - Supplied [diameter]	7 in	0.3 - 7 in
Length [x]	1.22 m	1.22 m
Length [x]	4 ft	4 ft
Material	Polyolefin (PO)	Polyolefin (PO)
Operating Temperature [Max]	110 °C	110 °C
Operating Temperature [Min]	-55 °C	-55 °C
Recovered Wall Thickness	4.32 mm	2.03 - 4.32 mm
Recovered Wall Thickness	-	0.08 - 0.11 in
Recovered Wall Thickness	-	2.29 mm
Recovered Wall Thickness [custom]	0.17 "	0.09 - 0.17 "
Shelf Life	120 Months	120 Months
Shelf Life Start	Date of Manufacture	Date of Manufacture
Shrink Temperature	121 °C	121 °C
Shrinkage Ratio [Max]	3	3
Shrinkage Ratio [Min]	1	1
Storage/Refrigeration Temperature [Max]	80 °F, 27 °C	27 - 80 °F
Storage/Refrigeration Temperature [Min]	10 °C	10 °C
Type	Tubing, Flexible	Tubing, Flexible

HEATSHRINK 6" BLACK

Part	Shelf Life Start	Shrinkage Ratio [Min]	Shrinkage Ratio [Max]	Length [x]	Length [x]	Inner Diameter - Recovered [diameter]	Inner Diameter - Recovered [diameter]	Type	Shelf Life	Shrink Temperature	Storage/Refrigeration Temperature [Max]	Storage/Refrigeration Temperature [Min]	Color	Material	Recovered Wall Thickness	Recovered Wall Thickness [custom]	Operating Temperature [Min]	Operating Temperature [Max]	Inner Diameter - Supplied [diameter]	Inner Diameter - Supplied [diameter]	Features	Recovered Wall Thickness	Recovered Wall Thickness [custom]
3M HDT-6000-48"-BLACK-5 PCS	Date of Manufacture	1	3	1.22 m	4 ft	1.8 in	45.72 mm	Tubing, Flexible	120 Months	121 °C	27 °C, 80 °F	10 °C	Black	Polyolefin (PO)	4.32 mm	0.17 "	-55 °C	110 °C	6 in	152.4 mm
3M HDT 0300 RD 48A	Date of Manufacture	1	3			0.1 in	2.54 mm	Tubing, Flexible	120 Months	121 °C	27 °C, 80 °F	10 °C	Red	Polyolefin (PO)	2.03 mm		-55 °C	110 °C	0.3 in	7.62 mm	Abrasion Resistant, Chemical Resistant, Flame Retardant	0.08 in
3M HDT-0800-48"-BLACK-20 PCS	Date of Manufacture	1	3	1.22 m	4 ft	0.2 in	5.08 mm	Tubing, Flexible	120 Months	121 °C	27 °C, 80 °F	10 °C	Black	Polyolefin (PO)	2.79 mm		-55 °C	110 °C	0.8 in	20.32 mm		0.11 in
3M HDT-0400-48"-BLACK-20 PCS	Date of Manufacture	1	3	1.22 m	4 ft	0.15 "	3.81 mm	Tubing, Flexible	120 Months	121 °C	27 °C, 80 °F	10 °C	Black	Polyolefin (PO)		0.09 in	-55 °C	110 °C	0.4 in	10.16 mm			2.29 mm
3M HDT-7000-48"-BLACK-5 PCS	Date of Manufacture	1	3	1.22 m	4 ft	2 in	50.8 mm	Tubing, Flexible	120 Months	121 °C	27 °C, 80 °F	10 °C	Black	Polyolefin (PO)	4.32 mm	0.17 "	-55 °C	110 °C	7 in	177.8 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

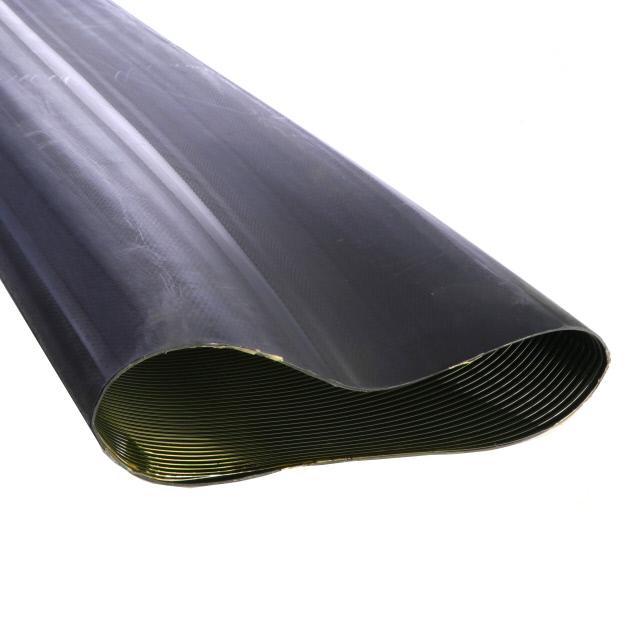

Heat Shrink Tubing, Flexible 7.000" (177.80mm) 3 to 1 Black 4.00' (1.22m)
