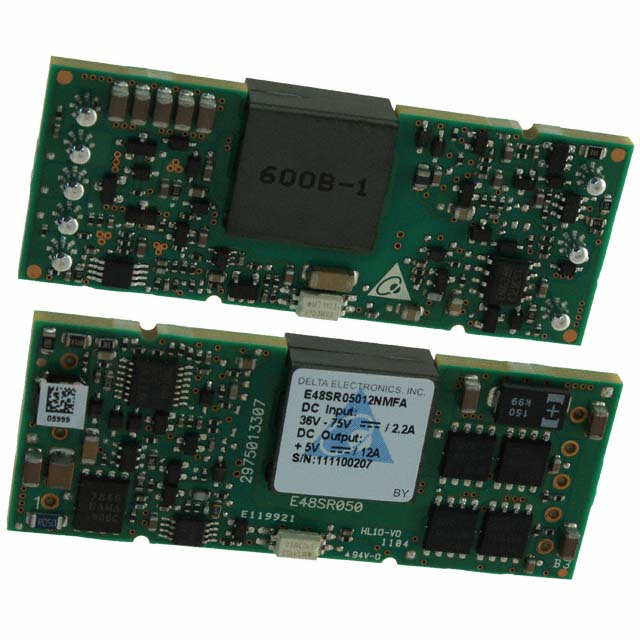

E48SR05012NMFA

Obsolete

Delta Electronics

DC DC CONVERTER 5V 66W

Search across all available documentation for this part.

Obsolete

Delta Electronics

DC DC CONVERTER 5V 66W

Technical Specifications

Parameters and characteristics for this part

Part	Efficiency	Control Features	Package / Case	Current - Output (Max) [Max]	Voltage - Input (Min) [Min]	Applications	Number of Outputs	Voltage - Input (Max) [Max]	Type	Features	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Output 1	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Mounting Type	Voltage - Isolation
Delta Electronics E48SR05012NMFA	91.5 %	Active Low Enable	1/8 Brick 8-SMD Module	12 A	36 V	ITE (Commercial)	1	75 V	Isolated Module	OCP OTP OVP Remote On/Off UVLO	-40 °C	121 °C	5 V	8.4 mm	58.4 mm	22.9 mm	0.33 in	2.3 in	0.9 "	Surface Mount	1.5 kV
Delta Electronics E48SR3R320NRFA	90.5 %	Active Low Enable	1/8 Brick 8-DIP Module	20 A	36 V	ITE (Commercial)	1	75 V	Isolated Module	OCP OTP OVP Remote On/Off UVLO	-40 °C	115 °C	3.3 V	8.4 mm	58.4 mm	22.9 mm	0.33 in	2.3 in	0.9 "	Through Hole	2250 VDC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Isolated Module DC DC Converter 1 Output 5V 12A 36V - 75V Input
