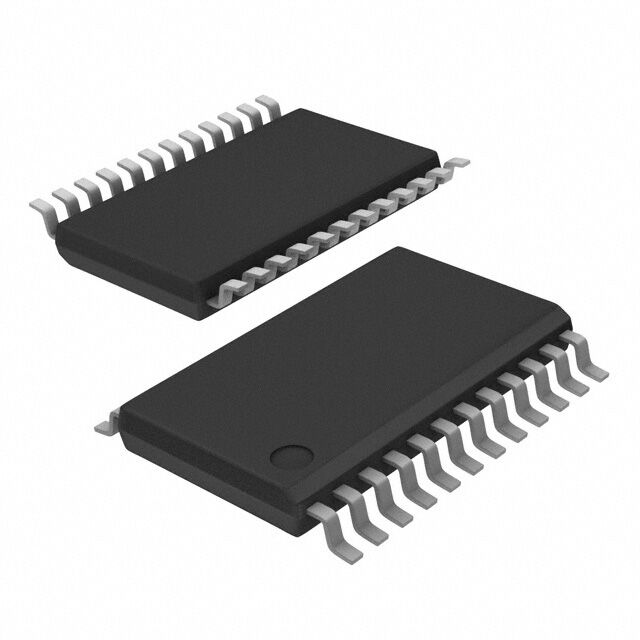

CMX868AE2-TR1K

Active

CML Micro

LOW POWER V.22 BIS MODEM

Search across all available documentation for this part.

Active

CML Micro

LOW POWER V.22 BIS MODEM

Technical Specifications

Parameters and characteristics commom to parts in this series

EVALUATION BOARD FOR CMX868A

Part	Supplied Contents	Type	Contents	Function	Utilized IC / Part	Voltage - Supply [Min]	Voltage - Supply [Max]	Package / Case	Package / Case	Supplier Device Package	Mounting Type	Data Format	Baud Rates	Package / Case [custom]	Package / Case [custom]
CML Micro DE8681	Board(s)	Telecom	Board(s)	Modem	CMX868A
CML Micro CMX868AE2-TR1K						2.7 V	5.5 V	24-TSSOP	0.173 in, 4.4 mm	24-TSSOP	Surface Mount	Bell 103, Bell 202, FSK, V.21, V.22, V.23	2.4 k
CML Micro CMX868AD2						2.7 V	5.5 V	24-SOIC		24-SOIC	Surface Mount	Bell 103, Bell 202, FSK, V.21, V.22, V.23	2.4 k	7.5 mm	0.295 in
CML Micro CMX868AE2						2.7 V	5.5 V	24-TSSOP	0.173 in, 4.4 mm	24-TSSOP	Surface Mount	Bell 103, Bell 202, FSK, V.21, V.22, V.23	2.4 k

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

2.4k Modem V.21, V.22, V.23, Bell 103, Bell 202, FSK 24-TSSOP
