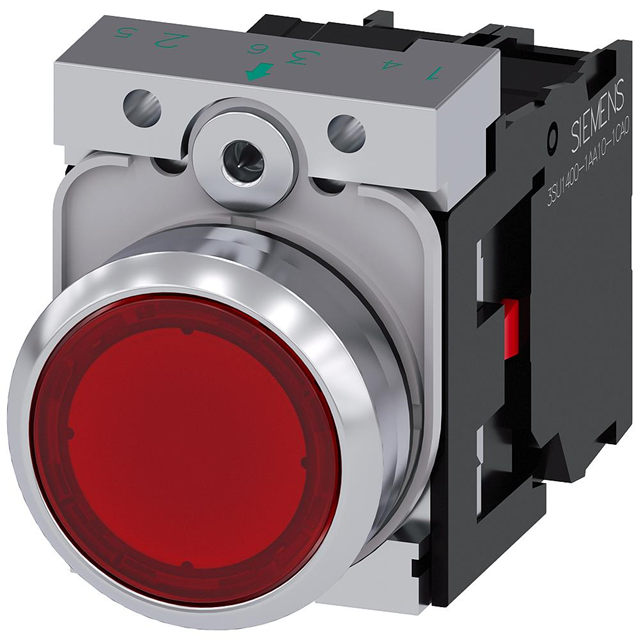

3SU11530AB201CA0
ActiveSiemens
ILLUMINATED PUSHBUTTON, MOM, RED
Deep-Dive with AI
Search across all available documentation for this part.
3SU11530AB201CA0
ActiveSiemens
ILLUMINATED PUSHBUTTON, MOM, RED
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 3SU11530AB201CA0 |
|---|---|
| Actuator Type | Round, Button |
| Circuit | SPST-NC |
| Color - Actuator/Cap | Red |
| Current Rating (Amps) | 10 A |
| Electrical Life | 10000000 Cycles |
| Illumination Type, Color | Red, LED |
| Ingress Protection | IP69K, IP67, IP66 |
| Mechanical Life | 3000000 Cycles |
| Mounting Type | Panel Mount, Front |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -25 °C |
| Panel Cutout Dimensions [diameter] | 22.3 mm |
| Switch Function | On-Mom |
| Termination Style | Screw Terminal |
| Type | Illuminated, Standard |
| Voltage Rating - AC | 500 V |
| Voltage Rating - DC | 500 V |
3SU1153 Series
| Part | Circuit | Switch Function | Ingress Protection | Electrical Life | Color - Actuator/Cap | Type | Termination Style | Operating Temperature [Max] | Operating Temperature [Min] | Voltage Rating - DC | Actuator Type | Illumination Type, Color | Voltage Rating - AC | Current Rating (Amps) | Mechanical Life | Panel Cutout Dimensions [diameter] | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Siemens | SPST-NO | Off-Mom | IP66 IP67 IP69K | 10000000 Cycles | Blue | Illuminated Standard | Spring Terminal | 70 °C | -25 °C | 500 V | Button Round | Blue LED | 500 V | 10 A | 3000000 Cycles | 22.3 mm | Panel Mount Front |
Siemens | DPST-NO/NC | Off-Mom On-Mom | IP66 IP67 IP69K | 10000000 Cycles | Clear | Illuminated Standard | Screw Terminal | 70 °C | -25 °C | 500 V | Button Round | LED White | 500 V | 10 A | 3000000 Cycles | 22.3 mm | Panel Mount Front |
Siemens | DPST-NO/NC | Off-Mom On-Mom | IP66 IP67 IP69K | 10000000 Cycles | Red | Illuminated Standard | Screw Terminal | 70 °C | -25 °C | 500 V | Button Round | LED Red | 500 V | 10 A | 3000000 Cycles | 22.3 mm | Panel Mount Front |
Siemens | SPST-NO | Off-Mom | IP66 IP67 IP69K | 10000000 Cycles | Clear | Illuminated Standard | Screw Terminal | 70 °C | -25 °C | 500 V | Button Round | LED White | 500 V | 10 A | 3000000 Cycles | 22.3 mm | Panel Mount Front |
Siemens | DPST-NO/NC | Off-Mom On-Mom | IP66 IP67 IP69K | 10000000 Cycles | White | Illuminated Standard | Screw Terminal | 70 °C | -25 °C | 500 V | Button Round | LED White | 500 V | 10 A | 3000000 Cycles | 22.3 mm | Panel Mount Front |
Siemens | SPST-NC | On-Mom | IP66 IP67 IP69K | 10000000 Cycles | Red | Illuminated Standard | Screw Terminal | 70 °C | -25 °C | 500 V | Button Round | LED Red | 500 V | 10 A | 3000000 Cycles | 22.3 mm | Panel Mount Front |
Siemens | SPST-NO | Off-Mom | IP66 IP67 IP69K | 10000000 Cycles | White | Illuminated Standard | Screw Terminal | 70 °C | -25 °C | 500 V | Button Round | LED White | 500 V | 10 A | 3000000 Cycles | 22.3 mm | Panel Mount Front |
Siemens | SPST-NO | Off-Mom | IP66 IP67 IP69K | 10000000 Cycles | Yellow | Illuminated Standard | Spring Terminal | 70 °C | -25 °C | 500 V | Button Round | LED Yellow | 500 V | 10 A | 3000000 Cycles | 22.3 mm | Panel Mount Front |
Siemens | SPST-NO | Off-Mom | IP66 IP67 IP69K | 10000000 Cycles | Clear | Illuminated Standard | Spring Terminal | 70 °C | -25 °C | 500 V | Button Round | LED White | 500 V | 10 A | 3000000 Cycles | 22.3 mm | Panel Mount Front |
Siemens | DPST-NO/NC | Off-Mom On-Mom | IP66 IP67 IP69K | 10000000 Cycles | Amber | Illuminated Standard | Screw Terminal | 70 °C | -25 °C | 500 V | Button Round | Amber LED | 500 V | 10 A | 3000000 Cycles | 22.3 mm | Panel Mount Front |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 96.31 | |
Description
General part information
3SU1153 Series
Pushbutton Switch SPST-NC Standard, Illuminated Panel Mount, Front
