8728 0601000

Active

Belden Inc.

2 #22 SHPR PP PVC

Search across all available documentation for this part.

Active

Belden Inc.

2 #22 SHPR PP PVC

Technical Specifications

Parameters and characteristics for this part

Specification	8728 0601000

Cable Type	Multi-Pair
Conductor Insulation	Polypropylene (PP)
Conductor Material	Copper, Tinned
Conductor Strand [custom]	7
Conductor Strand [custom]	30 AWG
Jacket (Insulation) Diameter [diameter]	5.46 mm
Jacket (Insulation) Diameter [diameter]	0.215 in
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness	0.028 in
Jacket (Insulation) Thickness	0.711 mm
Jacket Color	Chrome
Length	1000 ft
Length	304.8 m
Number of Conductors	4
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-20 C
Shield Coverage	100 %
Shield Material	Polyester, Aluminum
Shield Type	Foil
Usage	Audio, Instrumentation, Control
Voltage	300 V
Wire Gauge	22 AWG

Part	Conductor Strand [custom]	Conductor Strand [custom]	Shield Type	Wire Gauge	Operating Temperature [Min]	Operating Temperature [Max]	Conductor Material	Jacket (Insulation) Material	Voltage	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Shield Material	Shield Coverage	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Cable Type	Jacket Color	Conductor Insulation	Length	Length	Usage	Number of Conductors	Length [x]	Length [x]
Belden Inc. 8728 0601000	7	30 AWG	Foil	22 AWG	-20 C	80 C	Copper Tinned	Poly-Vinyl Chloride (PVC)	300 V	0.028 in	0.711 mm	Aluminum Polyester	100 %	5.46 mm	0.215 in	Multi-Pair	Chrome	Polypropylene (PP)	1000 ft	304.8 m	Audio Control Instrumentation	4
Belden Inc. 8728 060U500	7	30 AWG	Foil	22 AWG	-20 C	80 C	Copper Tinned	Poly-Vinyl Chloride (PVC)	300 V	0.028 in	0.711 mm	Aluminum Polyester	100 %	5.46 mm	0.215 in	Multi-Pair	Chrome	Polypropylene (PP)			Audio Control Instrumentation	4	500 '	152.4 m

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	1000	$ 1.86

General part information

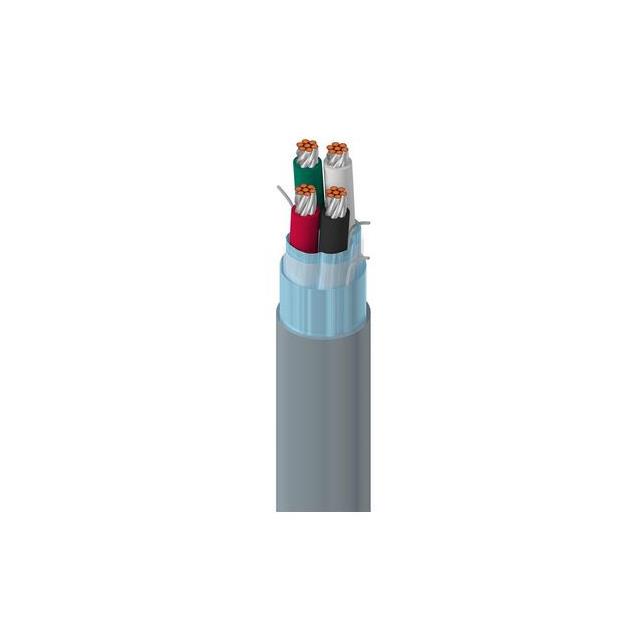

4 (2 Pair) Conductor Multi-Pair Cable Chrome 22 AWG Foil 1000.0' (304.8m)
