W23F1C-P27LFG0-950S

Active

ODU

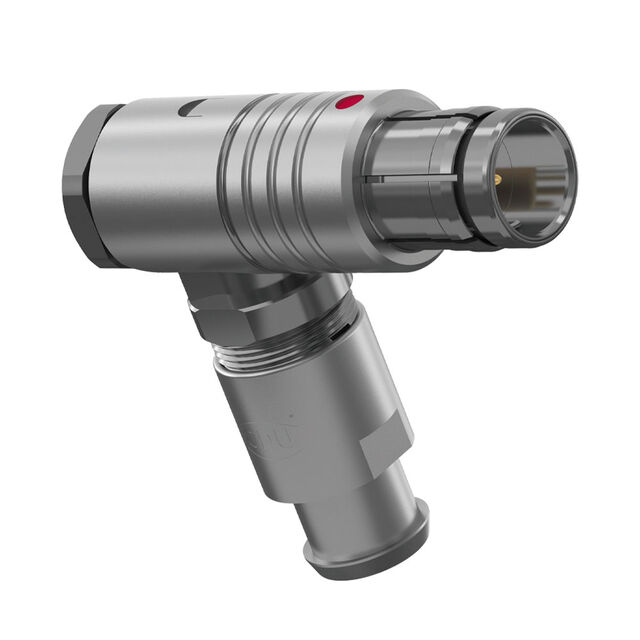

ODU MINI-SNAP PLUG, R/A, SZ 3, S

Deep-Dive with AI

Search across all available documentation for this part.

W23F1C-P27LFG0-950S

Active

ODU

ODU MINI-SNAP PLUG, R/A, SZ 3, S

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	W23F1C-P27LFG0-950S	W23F1C-P Series

Applications	Military, Medical, Industrial, Testing Equipment & Measurement	Military, Medical, Industrial, Testing Equipment & Measurement
Backshell Material, Plating	Brass, Chrome over Nickel	Brass, Chrome over Nickel
Cable Opening	-	0.236 - 0.315 in
Cable Opening	-	6 - 8 mm
Cable Opening [Max] [custom]	0.374 in	0.374 in
Cable Opening [Max] [custom]	9.5 mm	9.5 mm
Cable Opening [Min] [custom]	0.354 in	0.354 in
Cable Opening [Min] [custom]	9 mm	9 mm
Color	Silver	Silver
Connector Type	Plug, Male Pins	Plug, Male Pins
Contact Finish - Mating	Gold	Gold
Contact Material	Brass	Brass
Current Rating (Amps)	7.5 A	7.5 - 12 A
Fastening Type	Push-Pull	Push-Pull
Features	Strain Relief, Backshell	Strain Relief, Backshell
Ingress Protection	IP50	IP50
Insert Material	Polyetheretherketone (PEEK)	Polyetheretherketone (PEEK)
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Free Hanging (In-Line), Right Angle	Free Hanging (In-Line), Right Angle
Number of Positions	27	12 - 27
Operating Temperature [Max]	120 °C	120 °C
Operating Temperature [Min]	-40 °C	-40 °C
Orientation	1	1
Primary Material	Metal	Metal
Shell Finish	Chrome over Nickel	Chrome over Nickel
Shell Material	Brass	Brass
Shell Size - Insert	3	3
Shielding	Unshielded	Unshielded
Voltage Rating	300 VDC	300 - 450 VDC

W23F1C-P Series

ODU MINI-SNAP RT.ANGLE PLUG, STY

Part	Contact Finish - Mating	Applications	Fastening Type	Primary Material	Features	Mounting Type	Insert Material	Current Rating (Amps)	Connector Type	Shielding	Cable Opening [custom]	Cable Opening [custom]	Material Flammability Rating	Shell Size - Insert	Number of Positions	Color	Operating Temperature [Min]	Operating Temperature [Max]	Backshell Material, Plating	Shell Finish	Voltage Rating	Contact Material	Shell Material	Ingress Protection	Orientation	Cable Opening [Max] [custom]	Cable Opening [Max] [custom]	Cable Opening [Min] [custom]	Cable Opening [Min] [custom]
ODU W23F1C-P27LFG0-650S	Gold	Industrial, Medical, Military, Testing Equipment & Measurement	Push-Pull	Metal	Backshell, Strain Relief	Free Hanging (In-Line), Right Angle	Polyetheretherketone (PEEK)	7.5 A	Male Pins, Plug	Unshielded	0.236 in, 0.256 in	6 mm, 6.5 mm	UL94 V-0	3	27	Silver	-40 °C	120 °C	Brass, Chrome over Nickel	Chrome over Nickel	300 VDC	Brass	Brass	IP50	1
ODU W23F1C-P12MPH0-800S	Gold	Industrial, Medical, Military, Testing Equipment & Measurement	Push-Pull	Metal	Backshell, Strain Relief	Free Hanging (In-Line), Right Angle	Polyetheretherketone (PEEK)	12 A	Male Pins, Plug	Unshielded	0.295 in, 0.315 in	7.5 mm, 8 mm	UL94 V-0	3	12	Silver	-40 °C	120 °C	Brass, Chrome over Nickel	Chrome over Nickel	450 V	Brass	Brass	IP50	1
ODU W23F1C-P27LFG0-950S	Gold	Industrial, Medical, Military, Testing Equipment & Measurement	Push-Pull	Metal	Backshell, Strain Relief	Free Hanging (In-Line), Right Angle	Polyetheretherketone (PEEK)	7.5 A	Male Pins, Plug	Unshielded			UL94 V-0	3	27	Silver	-40 °C	120 °C	Brass, Chrome over Nickel	Chrome over Nickel	300 VDC	Brass	Brass	IP50	1	0.374 in	9.5 mm	0.354 in	9 mm
ODU W23F1C-P27MFG0-020S	Gold	Industrial, Medical, Military, Testing Equipment & Measurement	Push-Pull	Metal	Backshell, Strain Relief	Free Hanging (In-Line), Right Angle	Polyetheretherketone (PEEK)	7.5 A	Male Pins, Plug	Unshielded			UL94 V-0	3	27	Silver	-40 °C	120 °C	Brass, Chrome over Nickel	Chrome over Nickel	300 VDC	Brass	Brass	IP50	1
ODU W23F1C-P12MPH0-020S	Gold	Industrial, Medical, Military, Testing Equipment & Measurement	Push-Pull	Metal	Backshell, Strain Relief	Free Hanging (In-Line), Right Angle	Polyetheretherketone (PEEK)	12 A	Male Pins, Plug	Unshielded			UL94 V-0	3	12	Silver	-40 °C	120 °C	Brass, Chrome over Nickel	Chrome over Nickel	450 V	Brass	Brass	IP50	1

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 228.02

Description

General part information

W23F1C-P Series

27 Position Circular Connector Plug, Male Pins Solder Cup
