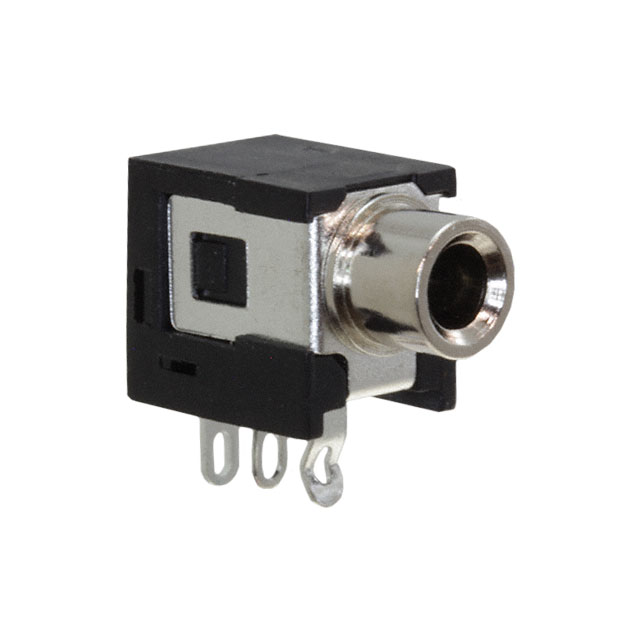

CONN 3.5MM STEREO JACK F 3 POS SOLDER RA THRU-HOLE 3 TERMINAL 1 PORT
Deep-Dive with AI
Search across all available documentation for this part.
ASJ-125-3
ActiveAdam Tech
CONN 3.5MM STEREO JACK F 3 POS SOLDER RA THRU-HOLE 3 TERMINAL 1 PORT
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | ASJ-125-3 |
|---|---|
| Actual Diameter [diameter] | 0.142 in |
| Actual Diameter [diameter] | 3.6 mm |
| Body Color | Black |
| Connector Type | Phone Jack |
| Contact Material | Copper Alloy |
| Contact Material - Plating | Tin |
| Current Rating (Amps) | 2 A |
| Features | Board Guide |
| Gender | Female |
| Housing Material | Polybutylene Terephthalate (PBT) |
| Industry Recognized Mating Diameter | 0.141 " |
| Industry Recognized Mating Diameter | 0.125 " |
| Industry Recognized Mating Diameter | 3.5 mm |
| Insulation Color | Black |
| Internal Switch(s) | False |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions/Contacts [custom] | 3 |
| Number of Positions/Contacts [custom] | 3 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -25 °C |
| Shielding | Unshielded |
| Signal Lines | Stereo |
| Termination | Solder Eyelet, Kinked Pin |
| Voltage - Rated | 12 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
ASJ-125 Series
3.50mm (0.141", 1/8", Mini Plug) - Headphone Phone Jack Stereo (3 Conductor, TRS) Connector Kinked Pin, Solder Eyelet
