A99000-031

Active

Omnetics

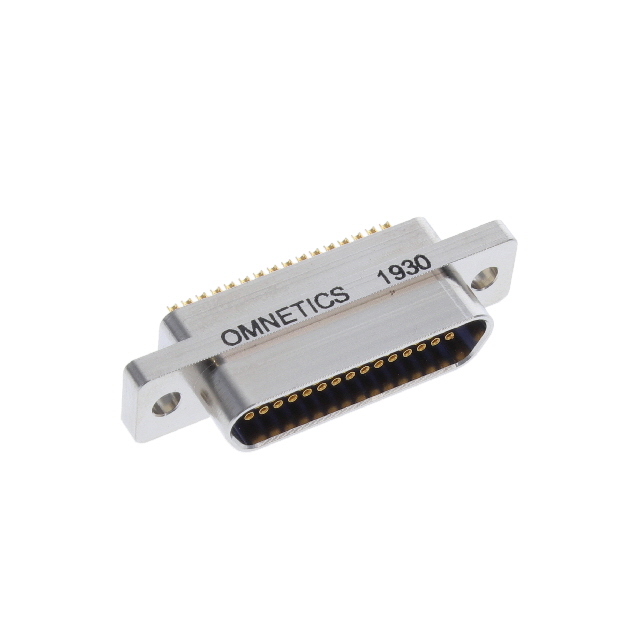

CONN MICRO-D RCPT 31POS SLDR CUP

Search across all available documentation for this part.

Active

Omnetics

CONN MICRO-D RCPT 31POS SLDR CUP

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

31 Position D-Type, Micro-D Receptacle, Female Sockets Connector

Technical documentation and resources

No documents available

Parameters and characteristics commom to parts in this series

Specification	A99000-031	MMDS-031 Series

1st Connector	-	Receptacle, Female Sockets
2nd Connector	-	Individual Wire Leads
Color	-	Multiple, Individual
Connector Style	Micro-D, D-Type	Micro-D, D-Type
Connector Type	Receptacle, Female Sockets	Receptacle, Female Sockets
Contact Finish	Gold	Gold
Contact Finish Thickness	50 µin	50 µin
Contact Finish Thickness	1.27 µm	1.27 µm
Contact Form	Stamped	Stamped
Contact Material	Copper Alloy	Copper Alloy
Contact Type	Signal	Signal
Current Rating (Amps)	3 A	3 A
Dielectric Material	Thermoplastic	Thermoplastic
Flange Feature	Housing/Shell (Unthreaded)	Housing/Shell (Unthreaded)
Length	-	457.2 mm
Length	-	1.5 ft
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Number of Positions	31	31
Number of Rows	2	2
Operating Temperature [Max]	125 °C	125 °C
Operating Temperature [Min]	-55 °C	-55 °C
Shell Material, Finish	Aluminum, Nickel Plated, Electroless	Aluminum, Nickel Plated, Electroless
Shell Size, Connector Layout [custom]	0.05	0.05
Shell Size, Connector Layout [custom]	0.05	0.05
Shielding	-	Unshielded
Type	-	D-Type, Micro-D

CABLE ASSY D-MIC-D 31P 457.2MM

Part	Color	Shielding	Contact Finish Thickness	Contact Finish Thickness	Type	Length [x]	Length [x]	Contact Finish	1st Connector	Number of Positions	2nd Connector	Shell Material, Finish	Contact Form	Connector Style	Contact Material	Mounting Type	Connector Type	Operating Temperature [Min]	Operating Temperature [Max]	Contact Type	Dielectric Material	Number of Rows	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [custom]	Flange Feature	Current Rating (Amps)
Omnetics A99100-031	Individual, Multiple	Unshielded	50 µin	1.27 µm	D-Type, Micro-D	457.2 mm	1.5 ft	Gold	Female Sockets, Receptacle	31	Individual Wire Leads
Omnetics A99000-031			50 µin	1.27 µm				Gold		31		Aluminum, Electroless, Nickel Plated	Stamped	D-Type, Micro-D	Copper Alloy	Free Hanging (In-Line)	Receptacle, Female Sockets	-55 °C	125 °C	Signal	Thermoplastic	2	0.05	0.05	Housing/Shell (Unthreaded)	3 A
