60A583C

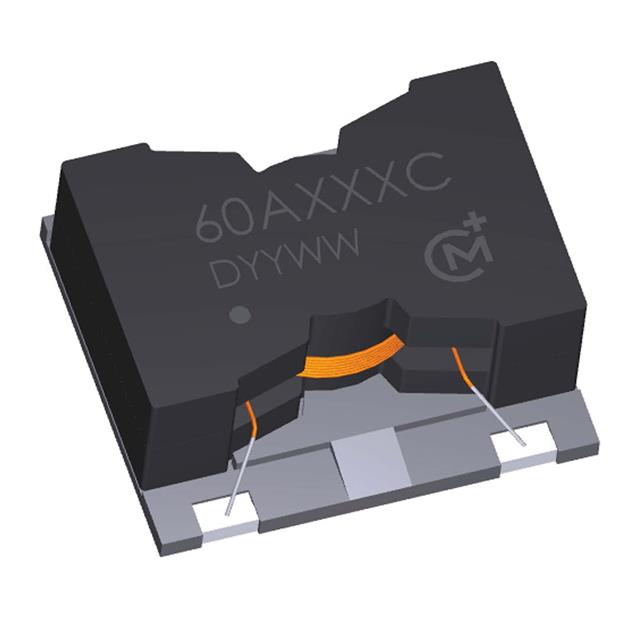

ActivePOWER INDUCTOR (SMD), 57.8 ΜH, 4.9 A, UNSHIELDED, 6.2 A, 6000A SERIES
Deep-Dive with AI
Search across all available documentation for this part.
60A583C
ActivePOWER INDUCTOR (SMD), 57.8 ΜH, 4.9 A, UNSHIELDED, 6.2 A, 6000A SERIES
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 60A583C | 60A Series |
|---|---|---|
| - | - | |
| Current - Saturation (Isat) | 6.2 A | 6.2 - 22 A |
| Current Rating (Amps) | 4.9 A | 4.9 - 14.5 A |
| DC Resistance (DCR) | - | 12 - 20 mOhm |
| DC Resistance (DCR) [Max] | 36 mOhm | 5 - 36 mOhm |
| Frequency - Self Resonant | 8 MHz | 8 - 31 MHz |
| Height - Seated (Max) [Max] [z] | 12 mm | 12 mm |
| Height - Seated (Max) [Max] [z] | 0.472 " | 0.472 " |
| Inductance | 57.8 µH | 5.8 - 57.8 µH |
| Inductance Frequency - Test | 100 kHz | 100 kHz |
| Mounting Type | Surface Mount | Surface Mount |
| Operating Temperature [Max] | 85 °C | 85 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Package / Case | Nonstandard | Nonstandard |
| Shielding | Unshielded | Unshielded |
| Size / Dimension [x] | 22 mm | 22 mm |
| Size / Dimension [x] | 0.866 in | 0.866 in |
| Size / Dimension [y] | 19 mm | 19 mm |
| Size / Dimension [y] | 0.748 in | 0.748 in |
| Tolerance | 10 % | 10 % |
| Type | Wirewound | Wirewound |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
60A Series
POWER INDUCTOR (SMD), 23 ΜH, 8.4 A, UNSHIELDED, 11 A, 6000A SERIES
| Part | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Shielding | Type | Current Rating (Amps) | Operating Temperature [Max] | Operating Temperature [Min] | Height - Seated (Max) [Max] [z] | Height - Seated (Max) [Max] [z] | Package / Case | Inductance Frequency - Test | Mounting Type | Current - Saturation (Isat) | Frequency - Self Resonant | Inductance | Tolerance | DC Resistance (DCR) [Max] | DC Resistance (DCR) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Murata Power Solutions Inc. 60A233C | ||||||||||||||||||||
Murata Power Solutions Inc. 60A413C | ||||||||||||||||||||
Murata Power Solutions Inc. 60A103C | 19 mm | 0.748 in | 22 mm | 0.866 in | Unshielded | Wirewound | 12 A | 85 °C | -40 °C | 12 mm | 0.472 " | Nonstandard | 100 kHz | Surface Mount | 17 A | 21 MHz | 10.2 µH | 10 % | ||
Murata Power Solutions Inc. 60A582C | 19 mm | 0.748 in | 22 mm | 0.866 in | Unshielded | Wirewound | 14.5 A | 85 °C | -40 °C | 12 mm | 0.472 " | Nonstandard | 100 kHz | Surface Mount | 22 A | 31 MHz | 5.8 µH | 10 % | 5 mOhm | |
Murata Power Solutions Inc. 60A413C | 19 mm | 0.748 in | 22 mm | 0.866 in | Unshielded | Wirewound | 5.6 A | 85 °C | -40 °C | 12 mm | 0.472 " | Nonstandard | 100 kHz | Surface Mount | 8.4 A | 10 MHz | 41 µH | 10 % | 26 mOhm | |
Murata Power Solutions Inc. 60A583C | 19 mm | 0.748 in | 22 mm | 0.866 in | Unshielded | Wirewound | 4.9 A | 85 °C | -40 °C | 12 mm | 0.472 " | Nonstandard | 100 kHz | Surface Mount | 6.2 A | 8 MHz | 57.8 µH | 10 % | 36 mOhm | |
Murata Power Solutions Inc. 60A193C | 19 mm | 0.748 in | 22 mm | 0.866 in | Unshielded | Wirewound | 8.5 A | 85 °C | -40 °C | 12 mm | 0.472 " | Nonstandard | 100 kHz | Surface Mount | 15 MHz | 19.4 µH | 10 % | 11 mOhm | ||
Murata Power Solutions Inc. 60A103C | ||||||||||||||||||||
Murata Power Solutions Inc. 60A273C | ||||||||||||||||||||
Murata Power Solutions Inc. 60A363C | 19 mm | 0.748 in | 22 mm | 0.866 in | Unshielded | Wirewound | 6.4 A | 85 °C | -40 °C | 12 mm | 0.472 " | Nonstandard | 100 kHz | Surface Mount | 8.8 A | 11 MHz | 36 µH | 10 % | 20 mOhm |
Description
General part information
60A Series
The 6000A series surface-mount high-current Power Inductor with pure tin pin finish. It is designed for use in power applications such as DC-DC converters, energy storage and input or output filtering. The maximum DC current is the value at which the inductance falls to 75% of its nominal value or when its temperature rise reaches 40°C, whichever is sooner.
