Q-1U0680005036i
ActiveAmphenol Custom Cable

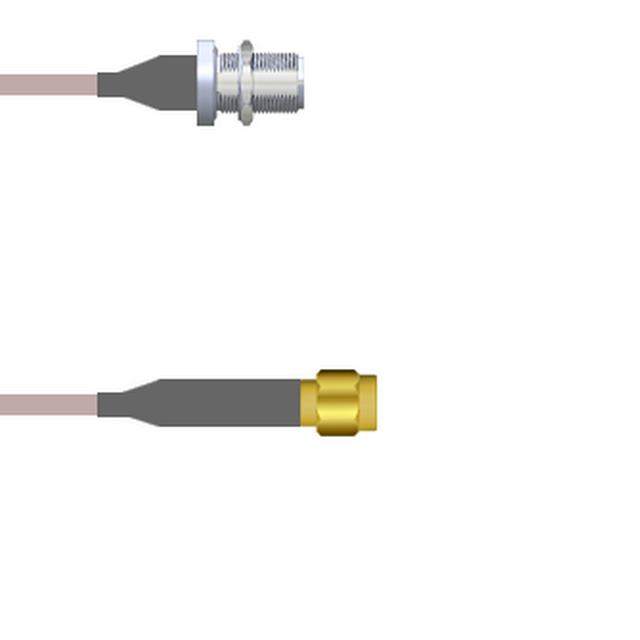

CBL ASSY RPSMA-NTYPE PLG-JCK 36"
Deep-Dive with AI
Search across all available documentation for this part.
Q-1U0680005036i
ActiveAmphenol Custom Cable
CBL ASSY RPSMA-NTYPE PLG-JCK 36"
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | Q-1U0680005036i |
|---|---|
| 1st Connector | RP-SMA Plug |
| 1st Connector Mounting Type | Free Hanging (In-Line) |
| 1st Contact Gender | Female |
| 2nd Connector | N-Type Jack |
| 2nd Connector Mounting Feature | Bulkhead - Front Side Nut |
| 2nd Connector Mounting Type | Panel Mount |
| 2nd Contact Gender | Female |
| Cable Type | RG-316 |
| Color | Copper |
| Features | Shielded |
| Frequency - Max [Max] | 11 GHz |
| Length | 91.44 cm |
| Length | 36 in |
| Overall Impedance | 50 Ohms |
| Style | RP-SMA to N-Type |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 113.71 | |
| 25 | $ 111.55 | |||
| 50 | $ 109.38 | |||
| 100 | $ 107.22 | |||
| 250 | $ 105.05 | |||
Description
General part information
Q-1U0680 Series
Cable Assembly Coaxial RP-SMA to N-Type RG-316 36.00" (914.40mm)
