USB5533B-5000JZXTR
ActiveMicrochip Technology
IC HUB CTLR USB 3.0 64QFN
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
USB5533B-5000JZXTR
ActiveMicrochip Technology
IC HUB CTLR USB 3.0 64QFN
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | USB5533B-5000JZXTR | USB5533 Series |
|---|---|---|
| - | - | |
| Function | Hub Controller | Hub Controller |
| Interface | USB | USB |
| Operating Temperature [Max] | 85 °C | 70 - 85 °C |
| Operating Temperature [Min] | 0 °C | 0 °C |

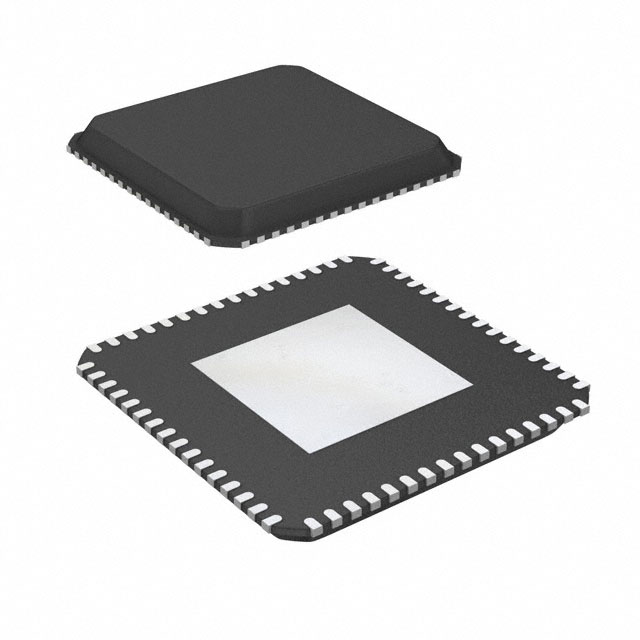

| Package / Case | 64-VFQFN Exposed Pad | 64-VFQFN Exposed Pad |
| Protocol | USB | USB |
| Standards | USB 3.0 | USB 3.0 |
| Supplier Device Package | 64-QFN (9x9) | 64-QFN (9x9) |
| Voltage - Supply | 1.25 V, 3.3 V | 1.25 - 3.3 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
USB5533 Series
LOW SPEED/FULL SPEED/HIGH SPEED/SUPER SPEED USB CONTROLLER HUB USB 2.0/USB 3.0 3.3V TRAY 64-PIN QFN EP
| Part | Standards | Supplier Device Package | Operating Temperature [Min] | Operating Temperature [Max] | Protocol | Function | Voltage - Supply | Interface | Package / Case |
|---|---|---|---|---|---|---|---|---|---|
Microchip Technology USB5533B-6080JZX | |||||||||
Microchip Technology USB5533B-5000JZXTR | USB 3.0 | 64-QFN (9x9) | 0 °C | 85 °C | USB | Hub Controller | 1.25 V, 3.3 V | USB | 64-VFQFN Exposed Pad |
Microchip Technology USB5533B-6080JZXTR | USB 3.0 | 64-QFN (9x9) | 0 °C | 70 °C | USB | Hub Controller | 1.25 V, 3.3 V | USB | 64-VFQFN Exposed Pad |
Microchip Technology USB5533B-6080JZX | |||||||||
Microchip Technology USB5533B-6080JZX | USB 3.0 | 64-QFN (9x9) | 0 °C | 70 °C | USB | Hub Controller | 1.25 V, 3.3 V | USB | 64-VFQFN Exposed Pad |
Microchip Technology USB5533B-5000JZX | USB 3.0 | 64-QFN (9x9) | 0 °C | 85 °C | USB | Hub Controller | 1.25 V, 3.3 V | USB | 64-VFQFN Exposed Pad |
Description
General part information
USB5533 Series
USB Hub Controller USB 3.0 USB Interface 64-QFN (9x9)
