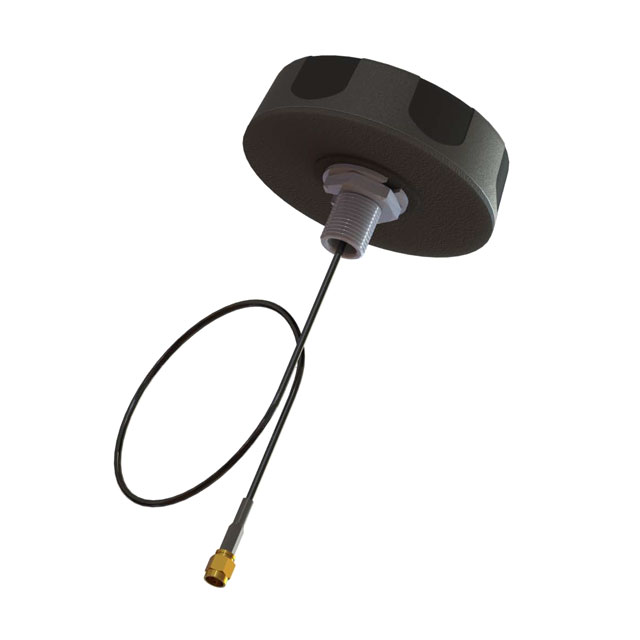

LPS88213NT-61RTNM
ObsoleteTE Connectivity Raychem Cable Protection
RF ANT 900MHZ/1.8GHZ MODULE CAB
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
LPS88213NT-61RTNM
ObsoleteTE Connectivity Raychem Cable Protection
RF ANT 900MHZ/1.8GHZ MODULE CAB
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | LPS88213NT-61RTNM |
|---|---|
| Antenna Type | Module |
| Applications | GSM, CDMA |
| Features | Cable - 610mm |
| Frequency (Center/Band) | 2.1 GHz, 900 MHz, 1.9 GHz, 1.8 GHz |
| Frequency Group | Wide Band |
| Frequency Range [Max] | 2.17 GHz, 894 MHz |
| Frequency Range [Min] | 824 MHz, 1.71 GHz |
| Gain | 3.9 dBi, 2.5 dBi, 5 dBi |
| Height (Max) | 26 mm |
| Height (Max) [Max] [z] | 1.024 in |
| Ingress Protection | IP67 |
| Number of Bands | 4 |
| Power - Max [Max] | 10 W |
| RF Family/Standard | Cellular |
| VSWR | 3 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
LPS88213 Series
RF ANTENNA CDMA, GSM Module RP-TNC Male Panel Mount
