337-020-540-208
ActiveEDAC Inc.

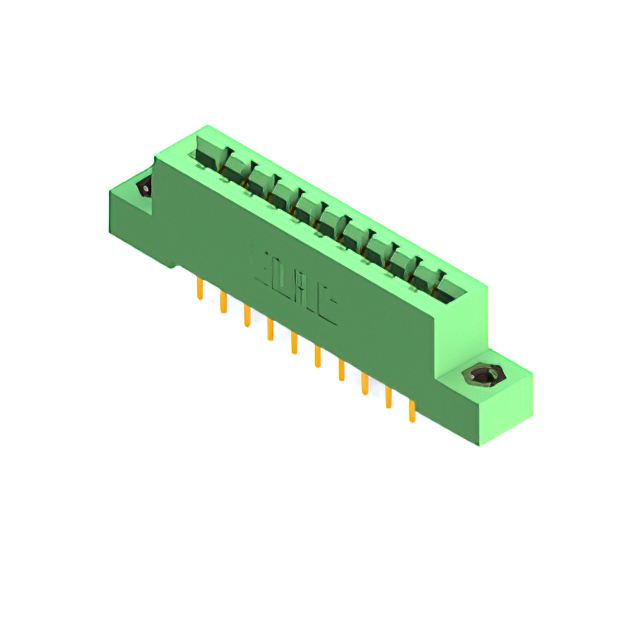

CARD EDGE CONNECTOR, DUAL SIDE, 1.57 MM, 20 CONTACTS, THROUGH HOLE MOUNT, STRAIGHT
Deep-Dive with AI
Search across all available documentation for this part.
337-020-540-208
ActiveEDAC Inc.
CARD EDGE CONNECTOR, DUAL SIDE, 1.57 MM, 20 CONTACTS, THROUGH HOLE MOUNT, STRAIGHT
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 337-020-540-208 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Dual Edge |
| Color | Green |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Flange Feature | Flush Mount, Threaded Insert, 4-40, Top Opening |
| Gender | Female |
| Material - Insulation | Polyester Thermoplastic |
| Mounting Type | Through Hole |
| Number of Positions | 20 |
| Number of Positions/Bay/Row [custom] | 10 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 0.156 in |
| Pitch [x] | 3.96 mm |
| Read Out | Dual |
| Termination | Wire Wrap |
| Termination Rows | 2 |
337-020 Series
...
| Part | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Number of Positions | Mounting Type | Contact Finish | Read Out | Termination Rows | Operating Temperature [Min] | Operating Temperature [Max] | Number of Positions/Bay/Row [custom] | Number of Positions/Bay/Row [custom] | Number of Positions/Bay/Row [custom] | Pitch [x] | Pitch [x] | Contact Material | Contact Type | Gender | Contact Finish Thickness | Contact Finish Thickness | Card Type | Flange Feature | Color | Number of Rows | Material - Insulation | Features | Termination | Number of Positions/Bay/Row [custom] | Flange Feature [diameter] | Flange Feature [diameter] | Flange Feature | Flange Feature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 20 | Through Hole | Gold | Single | 1 | -40 °C | 105 ░C | 20 | 20 | 20 | 0.156 in | 3.96 mm | Copper Alloy | Cantilever | Female | 10 Áin | 0.25 Ám | Non Specified - Single Edge | 4-40 Threaded Insert Top Mount Opening | Green | 1 | Polyester Thermoplastic | Card Guides | Solder | |||||
EDAC Inc. | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 20 | Through Hole | Gold | Dual | 2 | -40 °C | 105 ░C | 0.156 in | 3.96 mm | Copper Alloy | Cantilever | Female | 10 Áin | 0.25 Ám | Non Specified - Dual Edge | 4-40 Flush Mount Threaded Insert Top Opening | Green | 2 | Polyester Thermoplastic | Card Guides | Wire Wrap | 10 | |||||||
EDAC Inc. | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 20 | Through Hole Right Angle | Gold | Dual | 2 | -40 °C | 105 ░C | 0.156 in | 3.96 mm | Copper Alloy | Cantilever | Female | 10 Áin | 0.25 Ám | Non Specified - Dual Edge | 4-40 Flush Mount Threaded Insert Top Opening | Green | 2 | Polyester Thermoplastic | Card Guides | Wire Wrap | 10 | |||||||
EDAC Inc. | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 20 | Through Hole | Gold | Single | 1 | -40 °C | 105 ░C | 20 | 20 | 20 | 0.156 in | 3.96 mm | Copper Alloy | Cantilever | Female | 10 Áin | 0.25 Ám | Non Specified - Single Edge | 4-40 Flush Mount Threaded Insert Top Opening | Green | 1 | Polyester Thermoplastic | Wire Wrap | ||||||
EDAC Inc. | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 20 | Through Hole | Gold | Dual | 2 | -40 °C | 105 ░C | 0.156 in | 3.96 mm | Copper Alloy | Cantilever | Female | 10 Áin | 0.25 Ám | Non Specified - Dual Edge | 4-40 Flush Mount Threaded Insert Top Opening | Green | 2 | Polyester Thermoplastic | Solder | 10 | ||||||||
EDAC Inc. | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 20 | Through Hole Right Angle | Gold | Dual | 2 | -40 °C | 105 ░C | 0.156 in | 3.96 mm | Copper Alloy | Cantilever | Female | 10 Áin | 0.25 Ám | Non Specified - Dual Edge | 4-40 Threaded Insert Top Mount Opening | Green | 2 | Polyester Thermoplastic | Card Guides | Wire Wrap | 10 | |||||||
EDAC Inc. | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 20 | Through Hole | Gold | Dual | 2 | -40 °C | 105 ░C | 0.156 in | 3.96 mm | Copper Alloy | Cantilever | Female | 10 Áin | 0.25 Ám | Non Specified - Dual Edge | Top Mount Opening Unthreaded | Green | 2 | Polyester Thermoplastic | Solder | 10 | 0.156 in | 3.96 mm | ||||||
EDAC Inc. | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 20 | Through Hole | Gold | Dual | 2 | -40 °C | 105 ░C | 0.156 in | 3.96 mm | Copper Alloy | Cantilever | Female | 10 Áin | 0.25 Ám | Non Specified - Dual Edge | Side Mount Opening Unthreaded | Green | 2 | Polyester Thermoplastic | Solder | 10 | 3.25 mm | 0.128 in | ||||||
EDAC Inc. | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 20 | Board Edge Straddle Mount | Gold | Dual | 2 | -40 °C | 105 ░C | 0.156 in | 3.96 mm | Copper Alloy | Cantilever | Female | 10 Áin | 0.25 Ám | Non Specified - Dual Edge | Green | 2 | Polyester Thermoplastic | Card Extender | Solder | 10 | 3.25 mm | 0.128 in | ||||||
EDAC Inc. | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 20 | Through Hole | Gold | Dual | 2 | -40 °C | 105 ░C | 0.156 in | 3.96 mm | Copper Alloy | Cantilever | Female | 10 Áin | 0.25 Ám | Non Specified - Dual Edge | 4-40 Flush Mount Threaded Insert Top Opening | Green | 2 | Polyester Thermoplastic | Wire Wrap | 10 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
337-020 Series
20 Position Female Connector Non Specified - Dual Edge Gold 0.156" (3.96mm) Green
