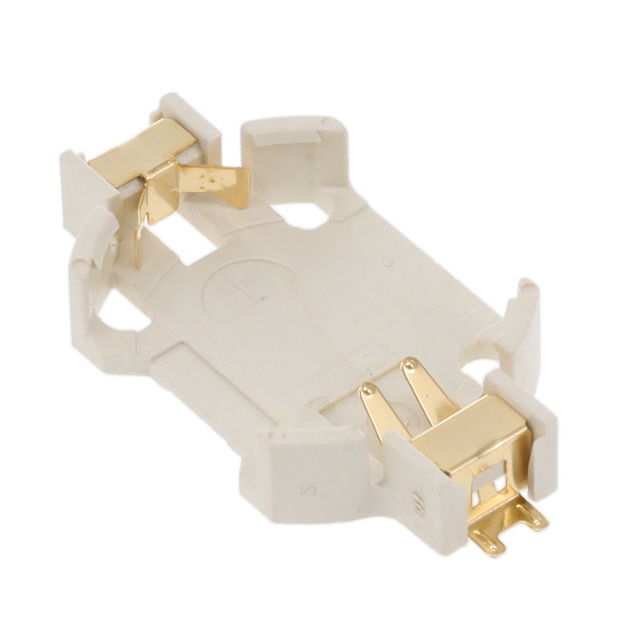

BH-27A-5-G-WT
ActiveAdam Tech
BATTERY HOLDER COIN 20MM SMD
Deep-Dive with AI
Search across all available documentation for this part.
BH-27A-5-G-WT
ActiveAdam Tech
BATTERY HOLDER COIN 20MM SMD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | BH-27A-5-G-WT |
|---|---|
| Battery Cell Size | Coin |
| Battery Cell Size | 20 mm |
| Battery Series | 2032 |
| Battery Type, Function | Holder, Coin Cell |
| Height Above Board | 5.18 mm |
| Height Above Board [z] | 0.204 in |
| Mounting Type | PCB, Surface Mount |
| Number of Cells | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -25 °C |
| Style | Holder (Open) |
| Termination Style | SMD (SMT) Tab |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 0.80 | |
| 10 | $ 0.67 | |||
| 50 | $ 0.59 | |||
| 100 | $ 0.55 | |||
| 250 | $ 0.51 | |||
| 500 | $ 0.49 | |||
| 1000 | $ 0.46 | |||
Description
General part information
BH-27A Series
Battery Holder (Open) Coin, 20.0mm 1 Cell SMD (SMT) Tab
