104430-2
ActiveTE Connectivity AMP Connectors

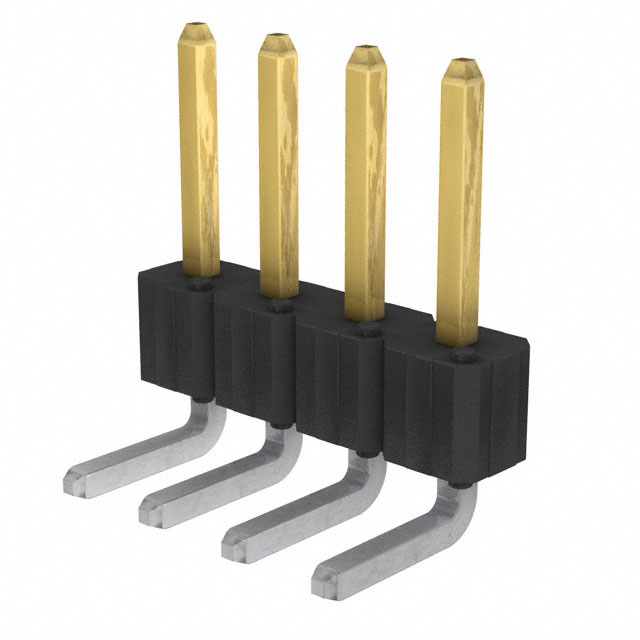

CONN HEADER R/A 4POS 2.54MM
Deep-Dive with AI
Search across all available documentation for this part.
104430-2
ActiveTE Connectivity AMP Connectors
CONN HEADER R/A 4POS 2.54MM
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 104430-2 | 104430 Series |
|---|---|---|
| Connector Type | Breakaway, Header | Breakaway, Header |
| Contact Finish - Mating | Gold | Gold |
| Contact Finish - Post | Tin-Lead | Tin, Tin-Lead |
| Contact Finish Thickness - Mating | 15 µin | 15 µin |
| Contact Finish Thickness - Mating | 0.38 µm | 0.38 µm |
| Contact Finish Thickness - Post | 2.54 µm | 2.54 µm |
| Contact Finish Thickness - Post | 100 µin | 100 µin |
| Contact Length - Mating [x] | 0.318 " | 0.318 " |
| Contact Length - Mating [x] | 8.08 mm | 8.08 mm |
| Contact Length - Post | 2.79 mm | 2.79 mm |
| Contact Length - Post [x] | 0.11 in | 0.11 in |
| Contact Material | Copper Alloy | Copper Alloy |
| Contact Shape | Square | Square |
| Contact Type | Male Pin | Male Pin |
| Current Rating (Amps) | 3 A | 3 A |
| Fastening Type | Push-Pull | Push-Pull |
| Insulation Color | Black | Black |
| Insulation Height | 3.5 mm | 3.5 mm |
| Insulation Height | 0.138 in | 0.138 in |
| Insulation Material | Thermoplastic | Thermoplastic |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 |
| Mounting Type | Through Hole, Right Angle | Through Hole, Right Angle |
| Number of Positions | 4 | 4 - 40 |
| Number of Positions Loaded | All | All |
| Number of Rows | 1 | 1 |
| Operating Temperature [Max] | 105 ░C | 105 ░C |
| Operating Temperature [Min] | -65 ░C | -65 ░C |
| Pitch - Mating | 0.1 in | 0.1 in |
| Pitch - Mating | 2.54 mm | 2.54 mm |
| Shrouding | Unshrouded | Unshrouded |
| Style | Board to Board, Cable | Board to Board, Cable |
| Termination | Solder, Press-Fit | Solder, Press-Fit |
| Voltage Rating | 30 VAC | 30 VAC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
104430 Series
CONN HEADER R/A 40POS 2.54MM
| Part | Contact Finish - Post | Contact Type | Current Rating (Amps) | Shrouding | Contact Finish - Mating | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Number of Positions Loaded | Voltage Rating | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Operating Temperature [Min] | Operating Temperature [Max] | Contact Length - Mating [x] | Contact Length - Mating [x] | Termination | Contact Shape | Mounting Type | Fastening Type | Material Flammability Rating | Insulation Height | Insulation Height | Number of Rows | Contact Material | Style | Insulation Color | Pitch - Mating | Pitch - Mating | Connector Type | Insulation Material | Number of Positions | Contact Length - Post [x] | Contact Length - Post |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 7-104430-7 | Tin | Male Pin | 3 A | Unshrouded | Gold | 15 µin | 0.38 µm | All | 30 VAC | 2.54 µm | 100 µin | -65 ░C | 105 ░C | 0.318 " | 8.08 mm | Press-Fit, Solder | Square | Through Hole, Right Angle | Push-Pull | UL94 V-0 | 3.5 mm | 0.138 in | 1 | Copper Alloy | Board to Board, Cable | Black | 0.1 in | 2.54 mm | Breakaway, Header | Thermoplastic | 40 | 0.11 in | 2.79 mm |
TE Connectivity AMP Connectors 104430-1 | Tin-Lead | Male Pin | 3 A | Unshrouded | Gold | 15 µin | 0.38 µm | All | 30 VAC | 2.54 µm | 100 µin | -65 ░C | 105 ░C | 0.318 " | 8.08 mm | Press-Fit, Solder | Square | Through Hole, Right Angle | Push-Pull | UL94 V-0 | 3.5 mm | 0.138 in | 1 | Copper Alloy | Board to Board, Cable | Black | 0.1 in | 2.54 mm | Breakaway, Header | Thermoplastic | 0.11 in | 2.79 mm | |
TE Connectivity AMP Connectors 104430-2 | Tin-Lead | Male Pin | 3 A | Unshrouded | Gold | 15 µin | 0.38 µm | All | 30 VAC | 2.54 µm | 100 µin | -65 ░C | 105 ░C | 0.318 " | 8.08 mm | Press-Fit, Solder | Square | Through Hole, Right Angle | Push-Pull | UL94 V-0 | 3.5 mm | 0.138 in | 1 | Copper Alloy | Board to Board, Cable | Black | 0.1 in | 2.54 mm | Breakaway, Header | Thermoplastic | 4 | 0.11 in | 2.79 mm |
TE Connectivity AMP Connectors 5-104430-1 | Tin | Male Pin | 3 A | Unshrouded | Gold | 15 µin | 0.38 µm | All | 30 VAC | 2.54 µm | 100 µin | -65 ░C | 105 ░C | 0.318 " | 8.08 mm | Press-Fit, Solder | Square | Through Hole, Right Angle | Push-Pull | UL94 V-0 | 3.5 mm | 0.138 in | 1 | Copper Alloy | Board to Board, Cable | Black | 0.1 in | 2.54 mm | Breakaway, Header | Thermoplastic | 0.11 in | 2.79 mm |
Description
General part information
104430 Series
Connector Header Through Hole, Right Angle 4 position 0.100" (2.54mm)
