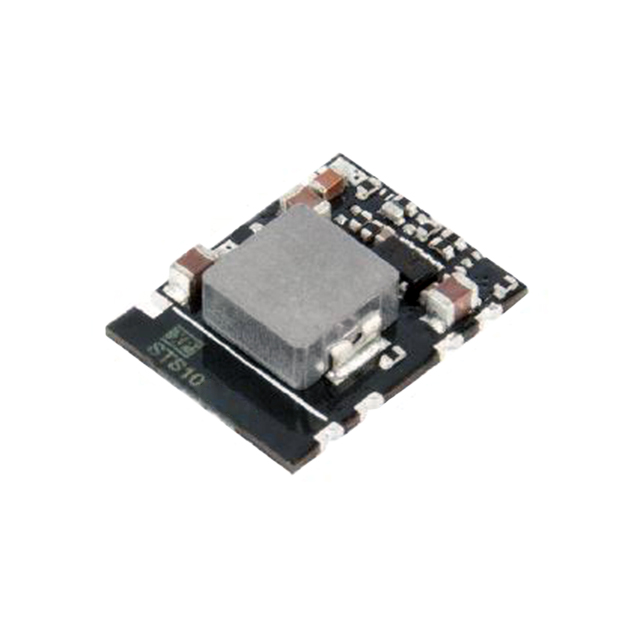

STS1024S15-TR

Active

XP Power

DC DC CONVERTER 15V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

STS1024S15-TR

Active

XP Power

DC DC CONVERTER 15V

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	500	$ 6.56

Description

General part information

STS1024 Series

Non-Isolated PoL Module DC DC Converter 1 Output 15V 1A 18V - 36V Input

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	STS1024S15-TR	STS1024 Series

Applications	ITE (Commercial)	ITE (Commercial)
Current - Output (Max) [Max]	1 A	1 A
Efficiency	96 %	87 - 96 %
Features	Remote On/Off, SCP	Remote On/Off, SCP
Mounting Type	Surface Mount	Surface Mount
Number of Outputs	1	1
Operating Temperature [Max]	105 C	105 C
Operating Temperature [Min]	-40 °C	-40 °C
Package / Case	10-SMD Module, 6 Leads	10-SMD Module, 6 Leads
Size / Dimension [x]	0.6 in	0.6 in
Size / Dimension [x]	15.2 mm	15.2 mm
Size / Dimension [y]	11.8 mm	11.8 mm
Size / Dimension [y]	0.46 "	0.46 "
Size / Dimension [z]	0.14 "	0.14 "
Size / Dimension [z]	3.6 mm	3.6 mm
Type	Non-Isolated PoL Module	Non-Isolated PoL Module
Voltage - Input (Max) [Max]	36 V	36 V
Voltage - Input (Min) [Min]	18 V	4.6 - 18 V
Voltage - Output 1	15 V	1.2 - 15 V

STS1024 Series

DC DC CONVERTER 3.3V

Part	Mounting Type	Applications	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Package / Case	Number of Outputs	Type	Voltage - Output 1	Operating Temperature [Min]	Operating Temperature [Max]	Features	Efficiency	Current - Output (Max) [Max]	Voltage - Input (Max) [Max]	Voltage - Input (Min) [Min]
XP Power STS1024S3V3	Surface Mount	ITE (Commercial)	11.8 mm	0.14 "	0.6 in	15.2 mm	0.46 "	3.6 mm	10-SMD Module, 6 Leads	1	Non-Isolated PoL Module	3.3 V	-40 °C	105 C	Remote On/Off, SCP	94 %	1 A	36 V	4.75 V
XP Power STS1024S1V2-TR	Surface Mount	ITE (Commercial)	11.8 mm	0.14 "	0.6 in	15.2 mm	0.46 "	3.6 mm	10-SMD Module, 6 Leads	1	Non-Isolated PoL Module	1.2 V	-40 °C	105 C	Remote On/Off, SCP	87 %	1 A	36 V	4.6 V
XP Power STS1024S12	Surface Mount	ITE (Commercial)	11.8 mm	0.14 "	0.6 in	15.2 mm	0.46 "	3.6 mm	10-SMD Module, 6 Leads	1	Non-Isolated PoL Module	12 V	-40 °C	105 C	Remote On/Off, SCP	95 %	1 A	36 V	15 V
XP Power STS1024S09	Surface Mount	ITE (Commercial)	11.8 mm	0.14 "	0.6 in	15.2 mm	0.46 "	3.6 mm	10-SMD Module, 6 Leads	1	Non-Isolated PoL Module	9 V	-40 °C	105 C	Remote On/Off, SCP	95.5 %	1 A	36 V
XP Power STS1024S1V2	Surface Mount	ITE (Commercial)	11.8 mm	0.14 "	0.6 in	15.2 mm	0.46 "	3.6 mm	10-SMD Module, 6 Leads	1	Non-Isolated PoL Module	1.2 V	-40 °C	105 C	Remote On/Off, SCP	87 %	1 A	36 V	4.6 V
XP Power STS1024S05	Surface Mount	ITE (Commercial)	11.8 mm	0.14 "	0.6 in	15.2 mm	0.46 "	3.6 mm	10-SMD Module, 6 Leads	1	Non-Isolated PoL Module	5 V	-40 °C	105 C	Remote On/Off, SCP	95.5 %	1 A	36 V	6.5 V
XP Power STS1024S15-TR	Surface Mount	ITE (Commercial)	11.8 mm	0.14 "	0.6 in	15.2 mm	0.46 "	3.6 mm	10-SMD Module, 6 Leads	1	Non-Isolated PoL Module	15 V	-40 °C	105 C	Remote On/Off, SCP	96 %	1 A	36 V	18 V
